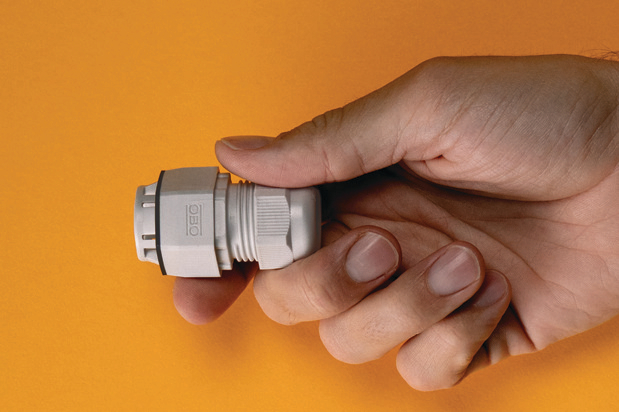

Simplified installation, faster application: the V-TEC PUSH® cable gland makes it possible. Thanks to the patented internal spring mechanism, the cable gland can be inserted into the housing from the outside. This means that no twisting is required for installation: simply insert and you're done!
This push-in installation saves a considerable amount of time during installation! Flexible hooks on the cable gland, which spread apart after insertion, prevent it from being pulled out again. The lock nut is no longer required, as the gland clicks into place and is held securely in place by the spring tension.
Advantages of V-TEC PUSH® at a glance
- Time savings during installation thanks to push-in mounting
- Flexible hooks spread apart after insertion and prevent the cable gland from being pulled out again
- A lock nut is no longer required: the screw connection clicks into place and is held securely in place by the spring tension
- Metal spring instead of plastic prevents material flow
- High material quality covers a wide range of applications for wall thicknesses from 1-3 mm
- High IP protection thanks to tight-fitting sealing lip
- Complies with DIN EN 62444

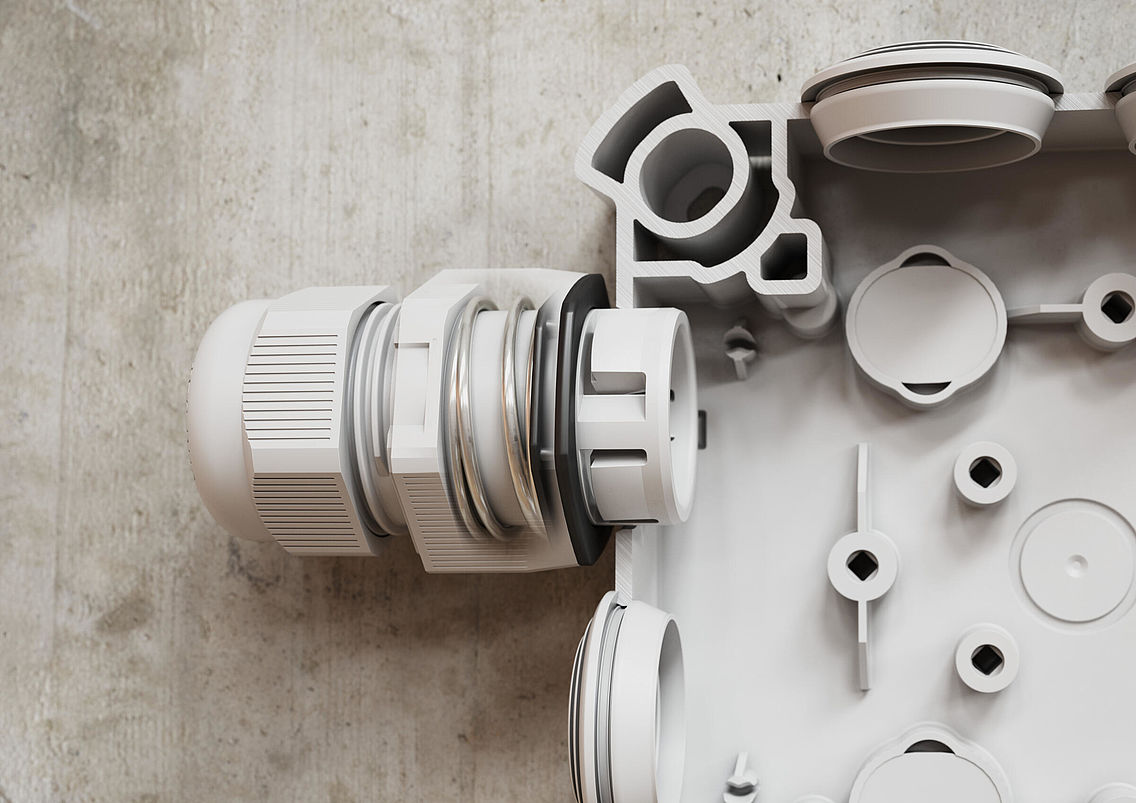

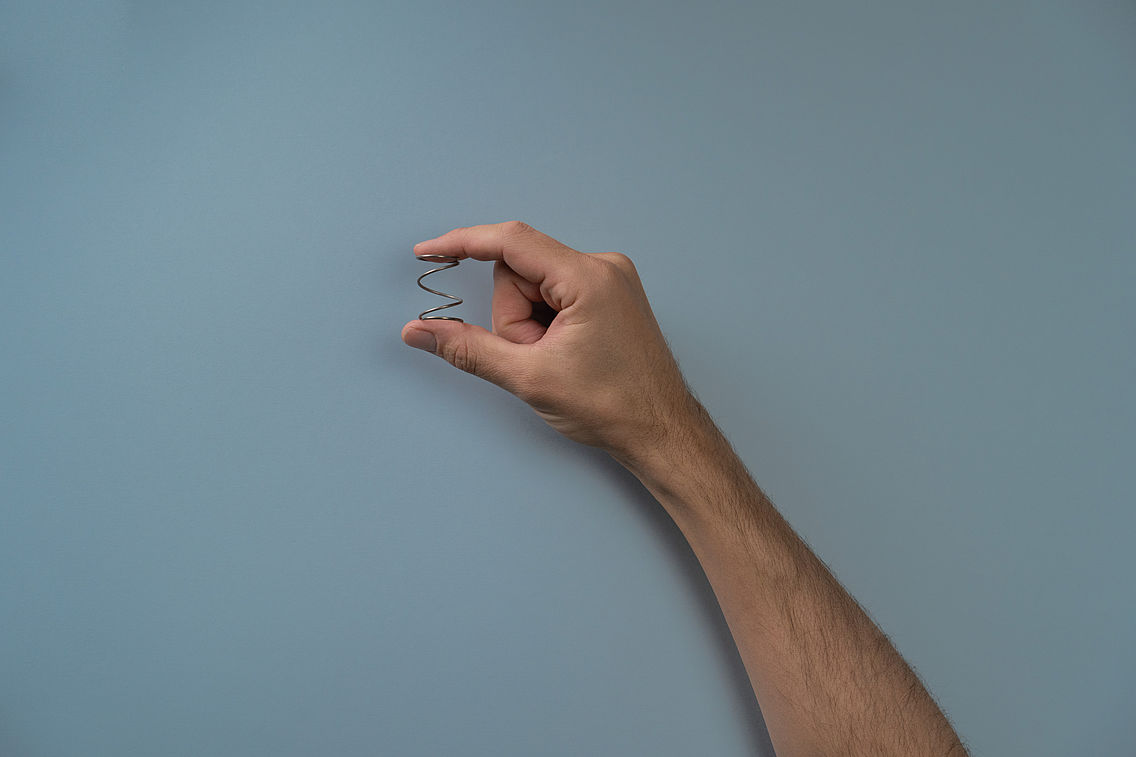

Innovation in detail: metal spring locking system for maximum durability and flexibility
The metal spring instead of plastic prevents material flow. The high material quality also covers a wide range of applications. Thanks to the flexible spring, the cable gland is suitable for wall thicknesses of 1-3 mm.
Despite the new locking system, the front part of the cap nut remains the same, allowing the installer to tighten it independently, as before.

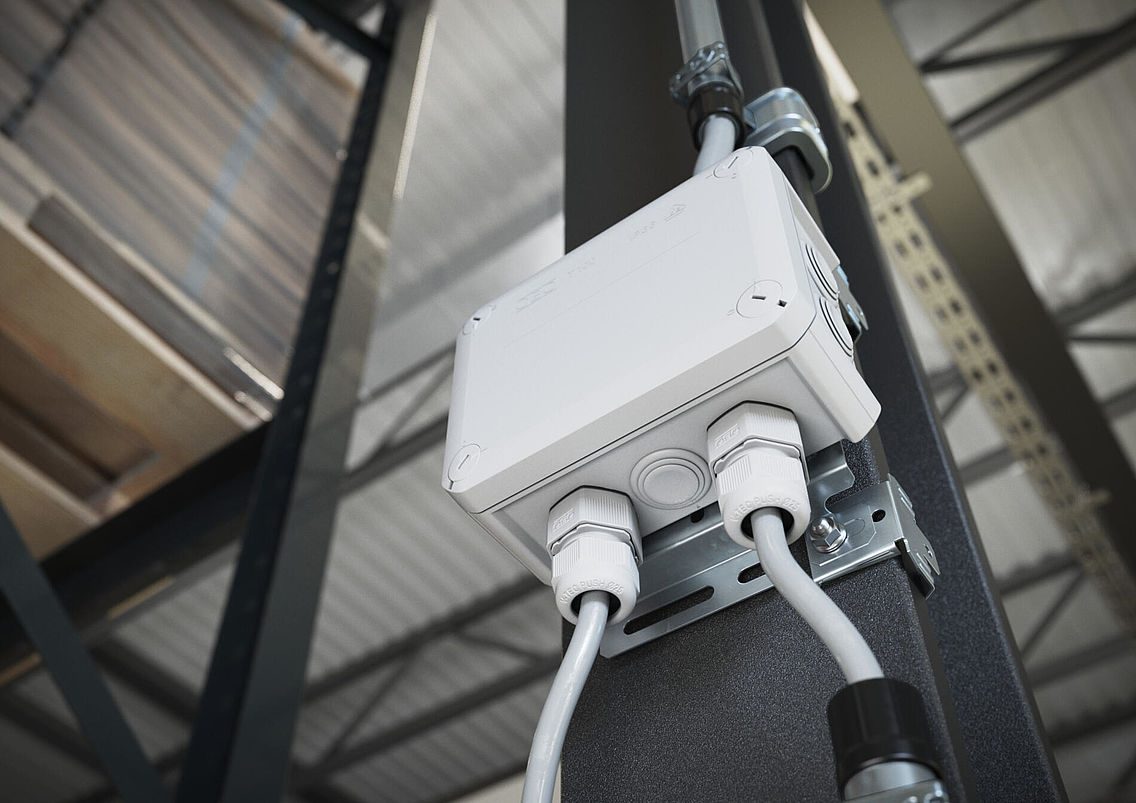

Wide range of applications for various use cases

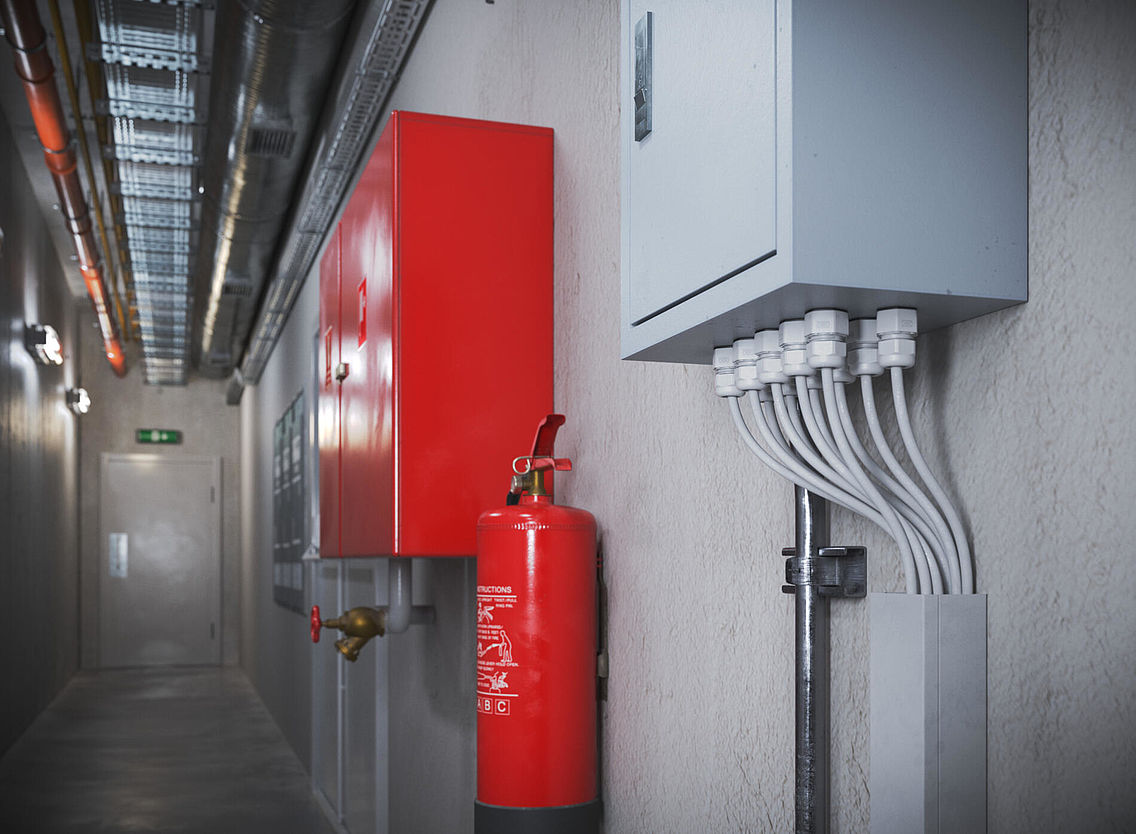

V-TEC PUSH® can be used in both private and industrial settings. The cable gland is suitable for a temperature range from -20°C to +65°C. Typical applications include, for example:
- Junction boxes
- Distribution boxes
- Control cabinets
- Mechanical and plant construction
- Automation technology

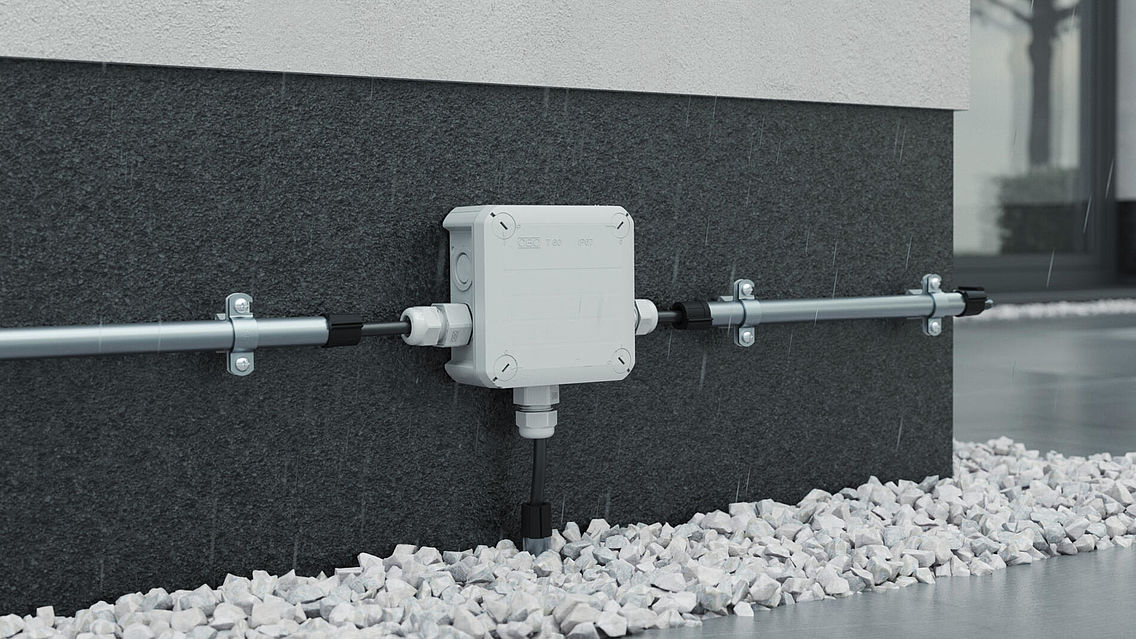

- Outdoor applications

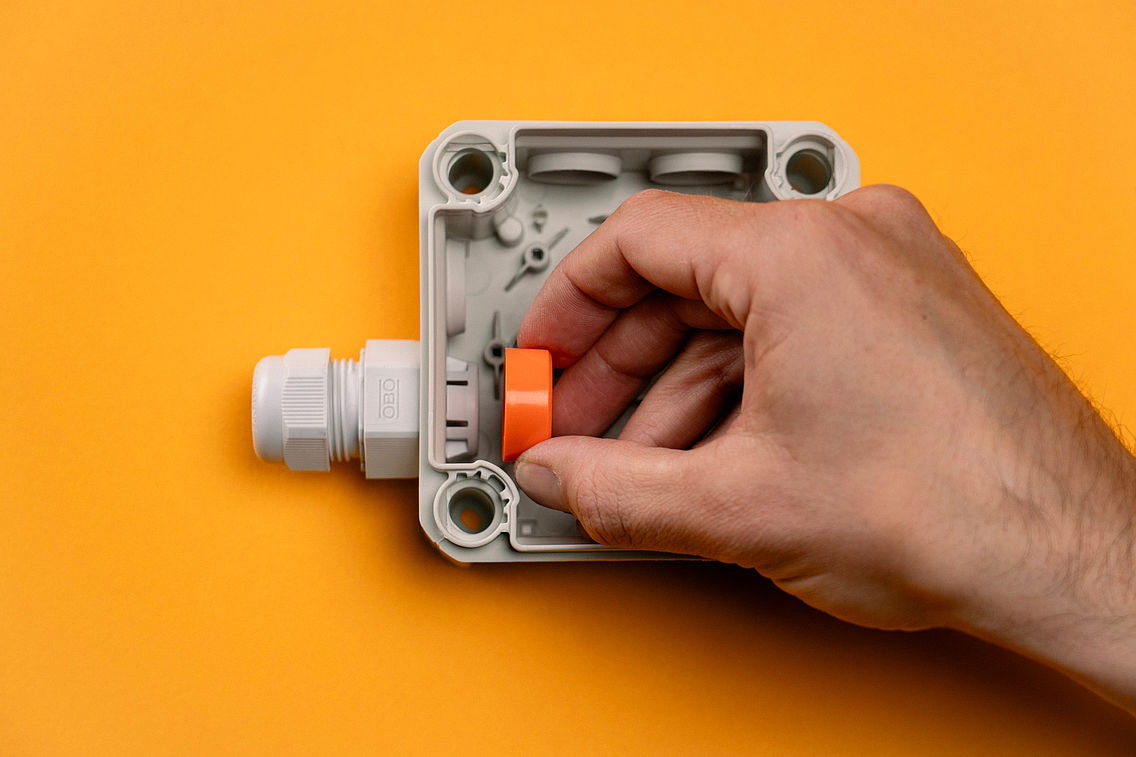

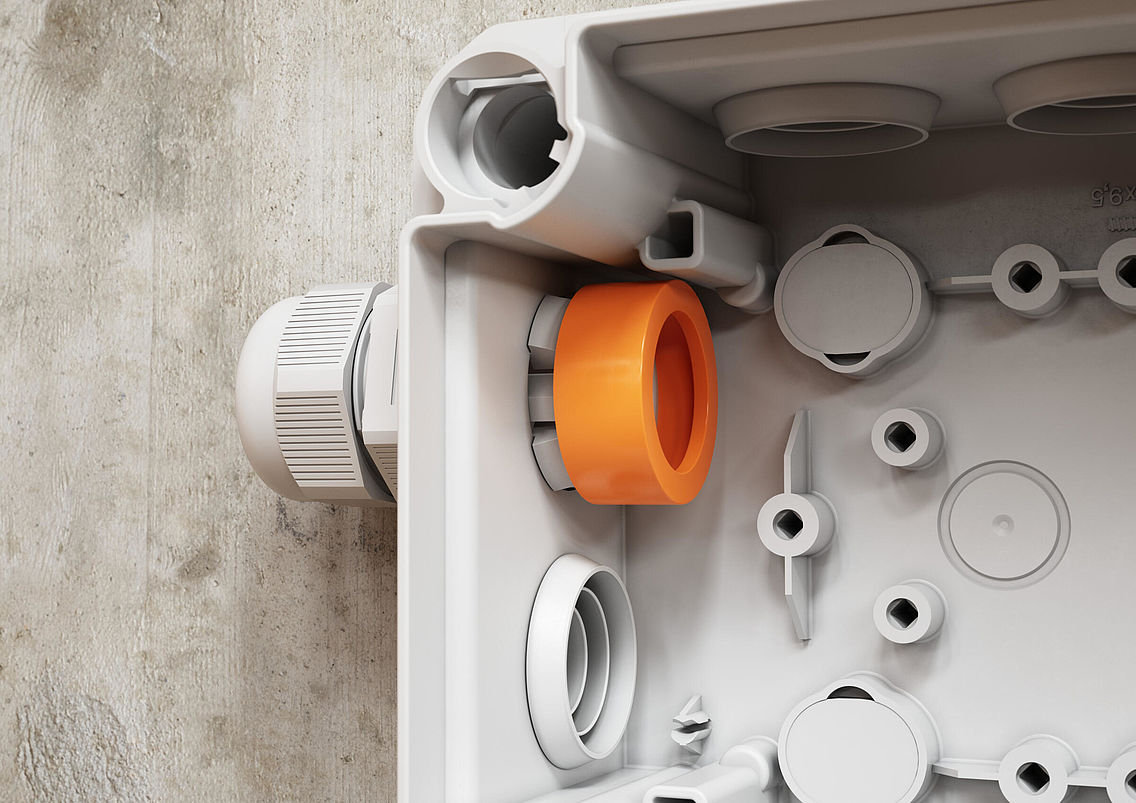

Quickly removed thanks to dismantling tool
A removal tool helps to loosen the cable gland again. To do this, the tool is pushed onto the hooks inside the housing that secure the cable gland and prevent it from being pulled out. The hooks are compressed by the tool, and the gland can be pulled out of the hole again. The removal tool is included in every V-TEC PUSH® package.
