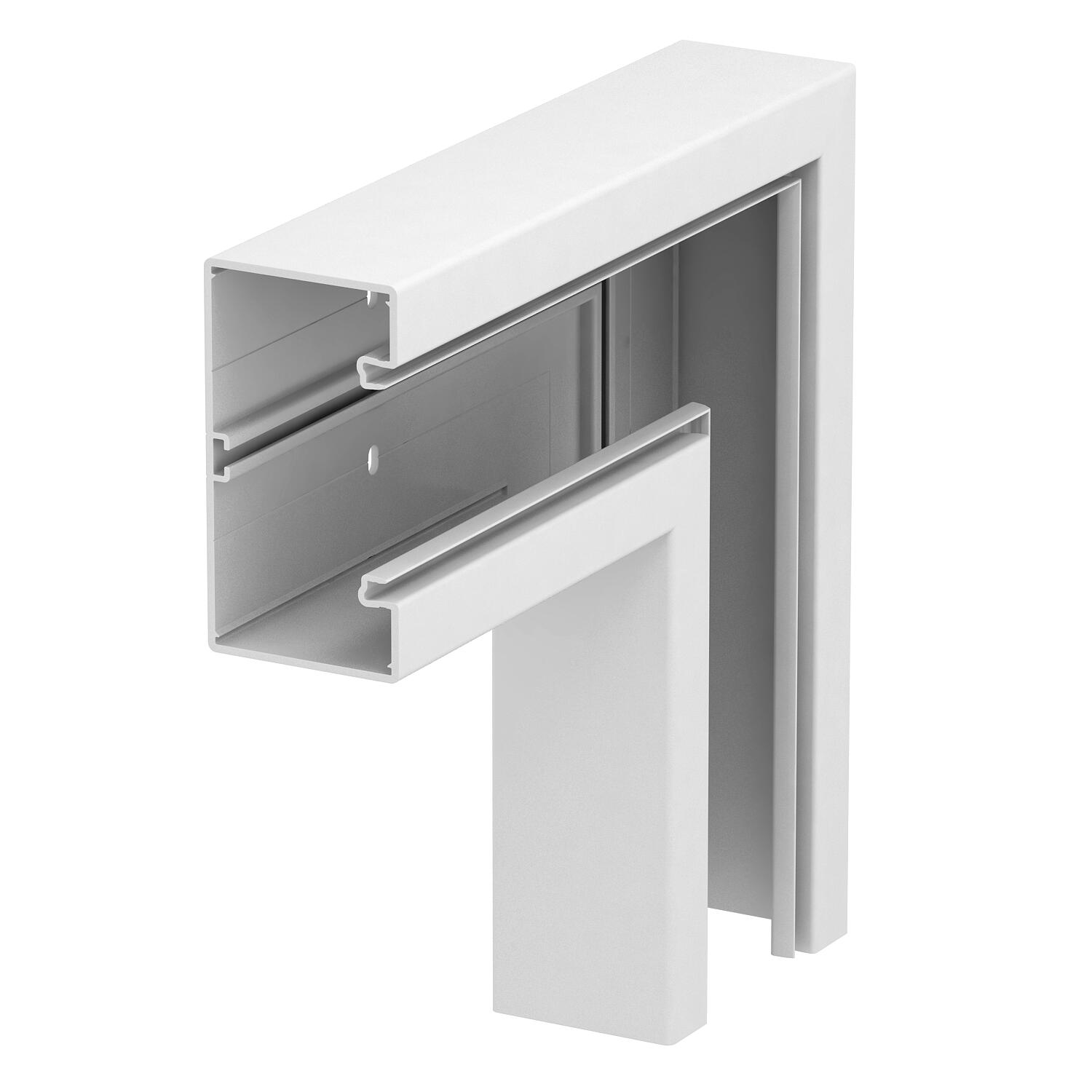

Flat angle, for device installation trunking Rapid 80 type GKH-70130
Item no. 6114240 | EAN 4012196450909
- Product description
-
Product descriptionFlat angle made of halogen-free PC/ABS for changing the direction of the GKH device installation trunking.
Cover must be ordered separately.
-
- Technical data
-
Technical data

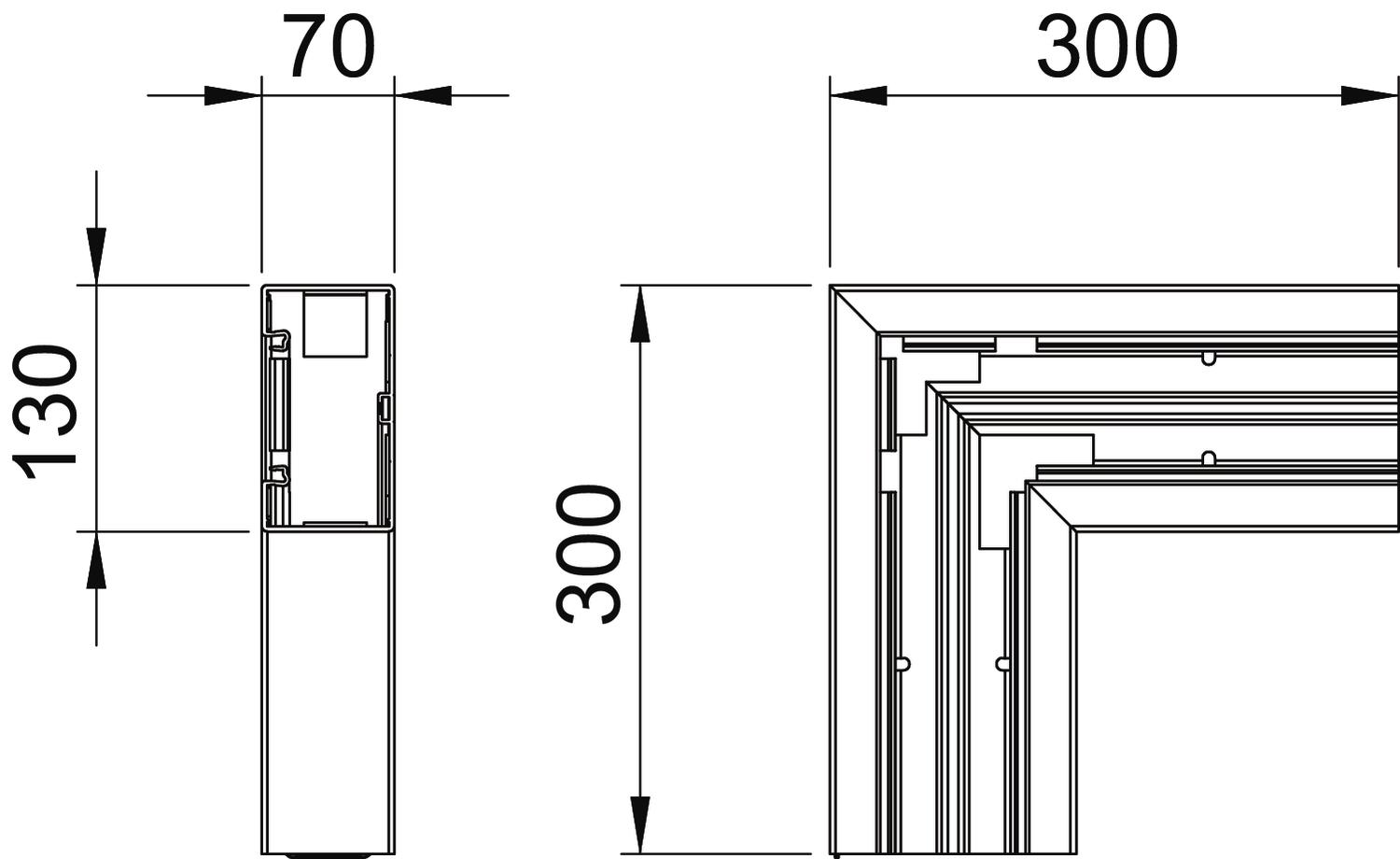

Angle range, max. 90 mm Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Change of direction Vertical, rising/falling CO2 Footprint (GWP) Cradle-to-Gate 5,9504 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Dimension 70x130 Duct connector no for duct width 130 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 300 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 90 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film yes Symmetrical yes Version for Base Width 130 mm - All types
- Downloads
-
Data sheet GKH-F70130RW / 6114240 , 0.22MB , pdfEU declaration of conformity GKH-F70130RW / 6114240 , 0.10MB , pdfUK Declaration of Conformity GKH-F70130RW / 6114240 , 0.09MB , pdfREACH Declaration of conformity GKH-F70130RW / 6114240 , 0.12MB , pdfRoHS Declaration of conformity GKH-F70130RW / 6114240 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
