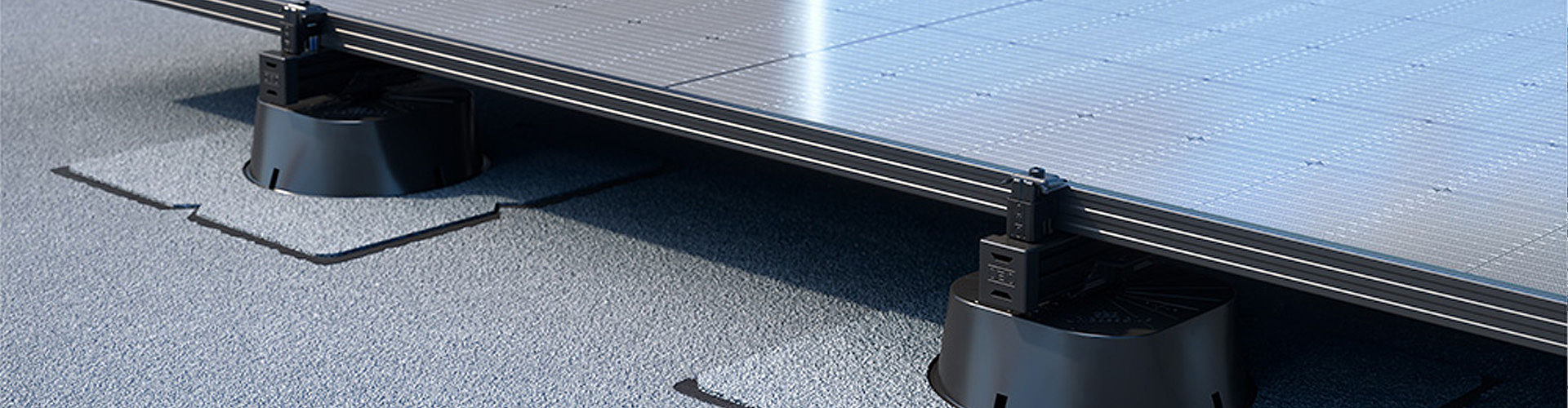

Magic PV Flat Glue
The Magic PV Flat Glue universal base can be used as a ballast-free PV mounting system up to a maximum of 5° (corresponding to approx. 8%) on bitumen seals and up to a maximum of 10° (corresponding to approx. 17%) on plastic roof membranes. Its use on pitched roofs with a significant slope is only possible following consultation with OBO and a static analysis. In line with the OBO standard, it is mounted parallel to the roof. A stand-off design may also be possible after consultation with OBO. A static analysis should be performed first in this case as well. For specific project requirements, our Technical Office will be happy to help and assist you during planning – and also work closely with you to find just the right solution for your needs.
Magic PV Flat Glue is suitable for roof membranes with bitumen or plastic membrane roofing (FPO). Installation is quick and easy – the universal base is joined to the existing roof seal with seamless welds via a sleeve available separately. True to the OBO system philosophy, Magic PV Flat Glue can also be combined with other OBO products – for example, the adapter for installing mesh cable trays.
Do you have any questions on this topic?
We’ll be glad to help!
Quick start
Products
Downloads
PV planning has never been so easy – and we’re here to help
A sunny outlook
We offer you not only innovative mounting systems for your PV system, but also support you with the planning. Our Customer Service team works with you to find the right Magic PV Solution® tailored to your specific needs. Please note: The creation of a quote for free-standing solutions specifically requires a geological survey. We will be happy to help you find a suitable company and establish contact with a geological engineer.
The external survey will then be reviewed and evaluated for completeness of all the relevant data.
