45° fitting, left, BKRS 100 FS

Item no. / Types

Width

Plate thickness	2 mm

Maintain electrical functions	no

Product description

Product description

Cable tray fitting with 45° cut, for creation of bends on walkable cable trays.

Technical data

Bend (angle)	45°
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	17,7554 kg CO2e / 1 Piece
Colour	zinc
Connector version	Without connectors

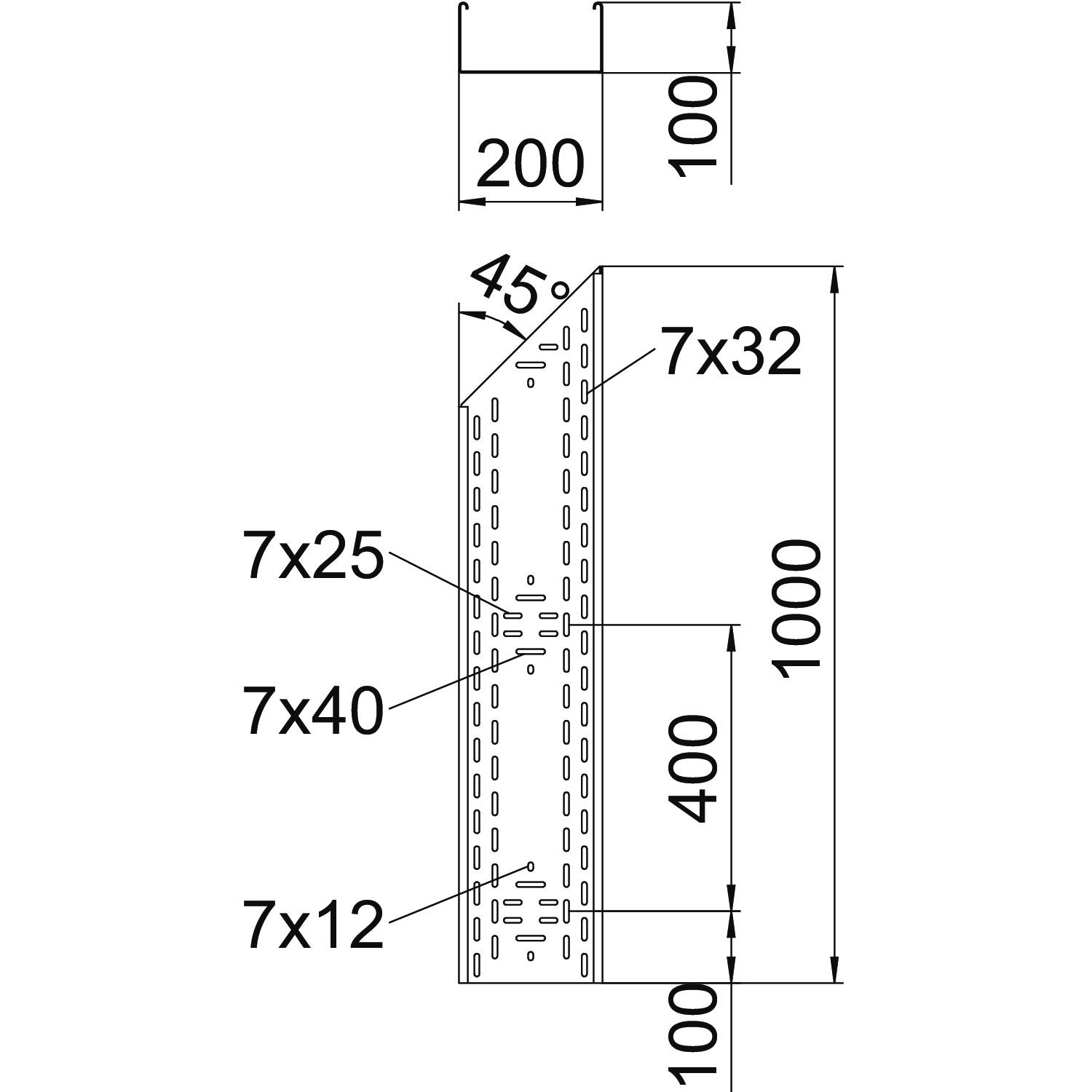

Dimension	100x200x1000
Dimension B	200 mm
Dimension H	100 mm
Dimension L	1000 mm
Height	100 mm
Length	1000 mm
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	yes
NATO hole pattern	no
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Strip galvanized
Type	Bend, rigid
Type of connector, cable support system	Screwed
Wide-span version	no
Width	200 mm

All types

All types

Types	Width	Plate thickness	Maintain electrical functions	Item no.	Quantity	SSU
BKRS 1010 45L FS	100 mm	2 mm	no	6061911	piece	1 piece
BKRS 1020 45L FS	200 mm	2 mm	no	6061912	piece	1 piece
BKRS 1030 45L FS	300 mm	2 mm	no	6061913	piece	1 piece
BKRS 1040 45L FS	400 mm	2 mm	no	6061914	piece	1 piece
BKRS 1050 45L FS	500 mm	2 mm	no	6061916	piece	1 piece
BKRS 1060 45L FS	600 mm	2 mm	no	6061917	piece	1 piece
