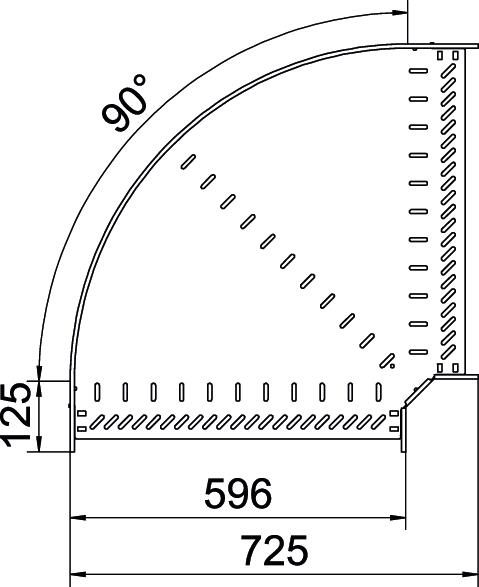

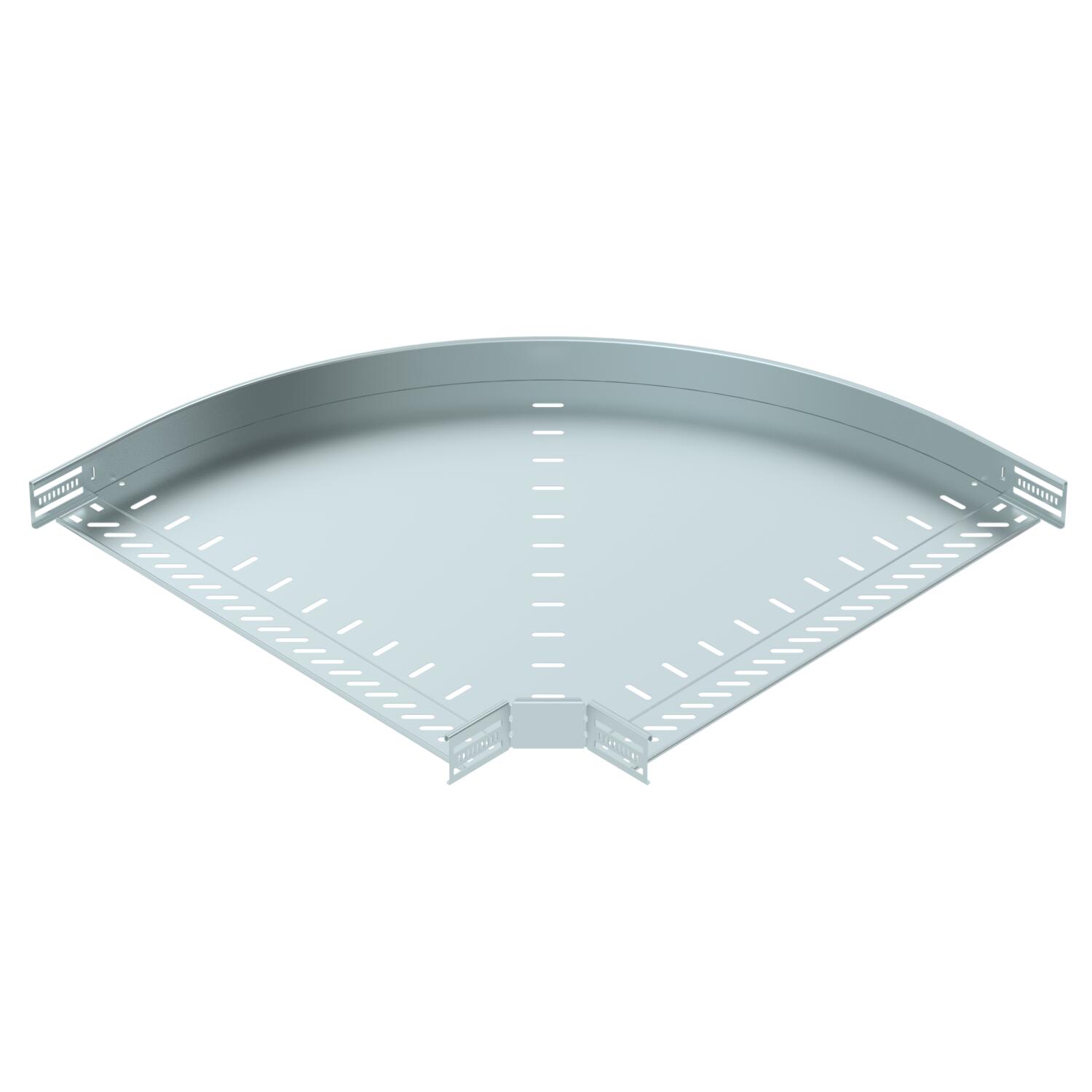

90° bend 60, EcoLine, FS
Item no. 6036585 | EAN 4012197485092
- Product description
-
Product description90° bend made from CO2-reduced steel, for the creation of a horizontal branch. Fitting for latchable and screwable cable trays, side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal CO2 Footprint (GWP) Cradle-to-Gate 6,6262 kg CO2e / 1 Piece Colour zinc Connector version Integrated connector Dimension 60x600 Dimension B 600 mm Height 60 mm Maintain electrical functions yes Material Steel, CO2 reduced Material thickness, floor plate 1 mm Mounting perforation in base yes NATO hole pattern no Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Plate thickness 1 mm Rail thickness 1,25 mm Recommended quantity of bolts 16 St. Rustproof steel, pickled no Side perforation yes Surface Strip galvanized Type Bend, rigid Type of connector, cable support system screwed/clamped Wide-span version no Width 600 mm - All types
-
All types
