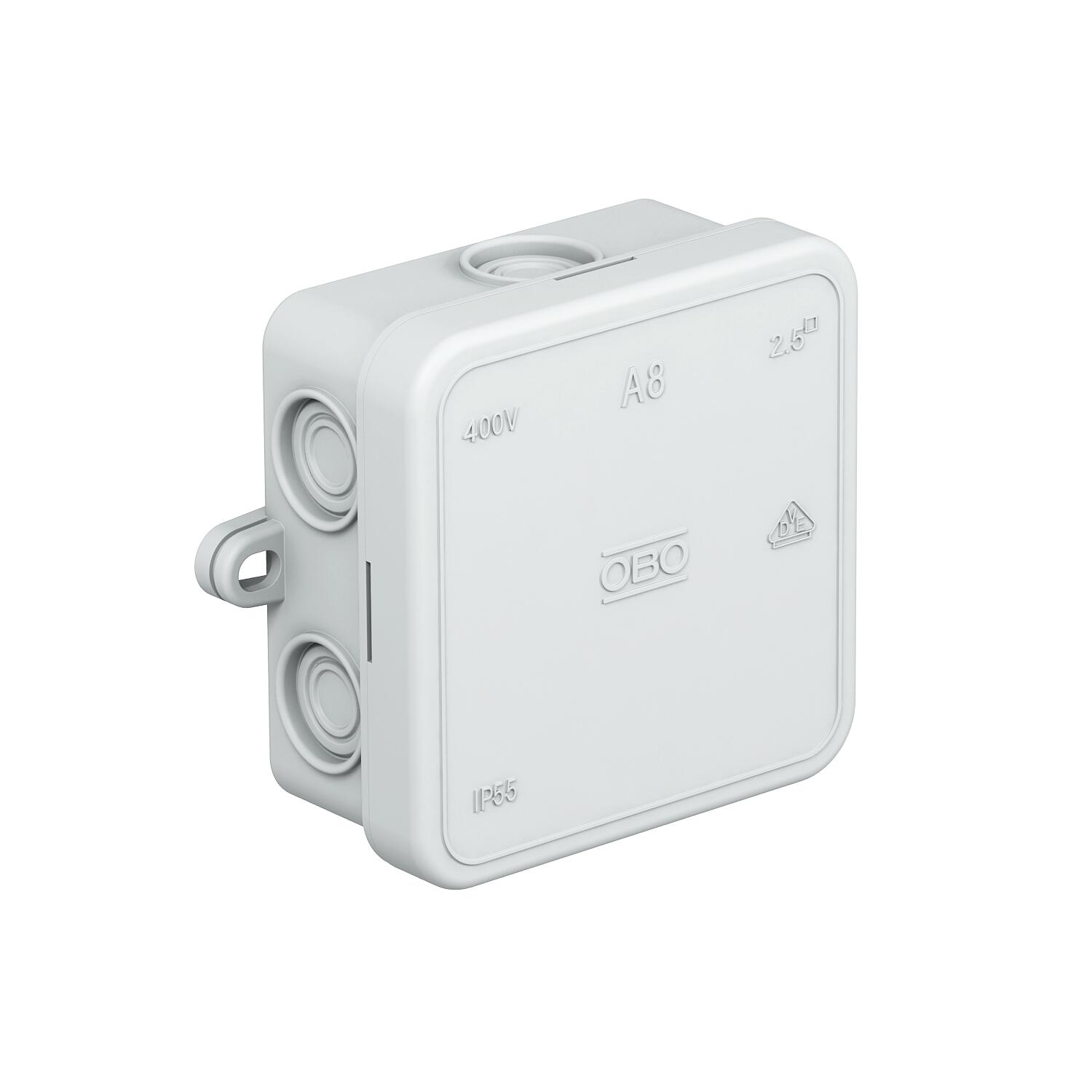

A 8 junction box, EcoLine 65x65x32 | 7 | IP55 | Light grey; RAL 7035

A 8 junction box, EcoLine

Item no. 2000018 | EAN 4012197496487

Item no. / Types

Clear internal dimensions	65x65x32 mm

No. of entries	7

Protection rating	IP55

Colour

Product description

Product description

Protection class IP55, nominal voltage 690 V, nominal cross-section 2.5 mm², 7 entries for cable diameters of 5–14 mm.
Clamshell.

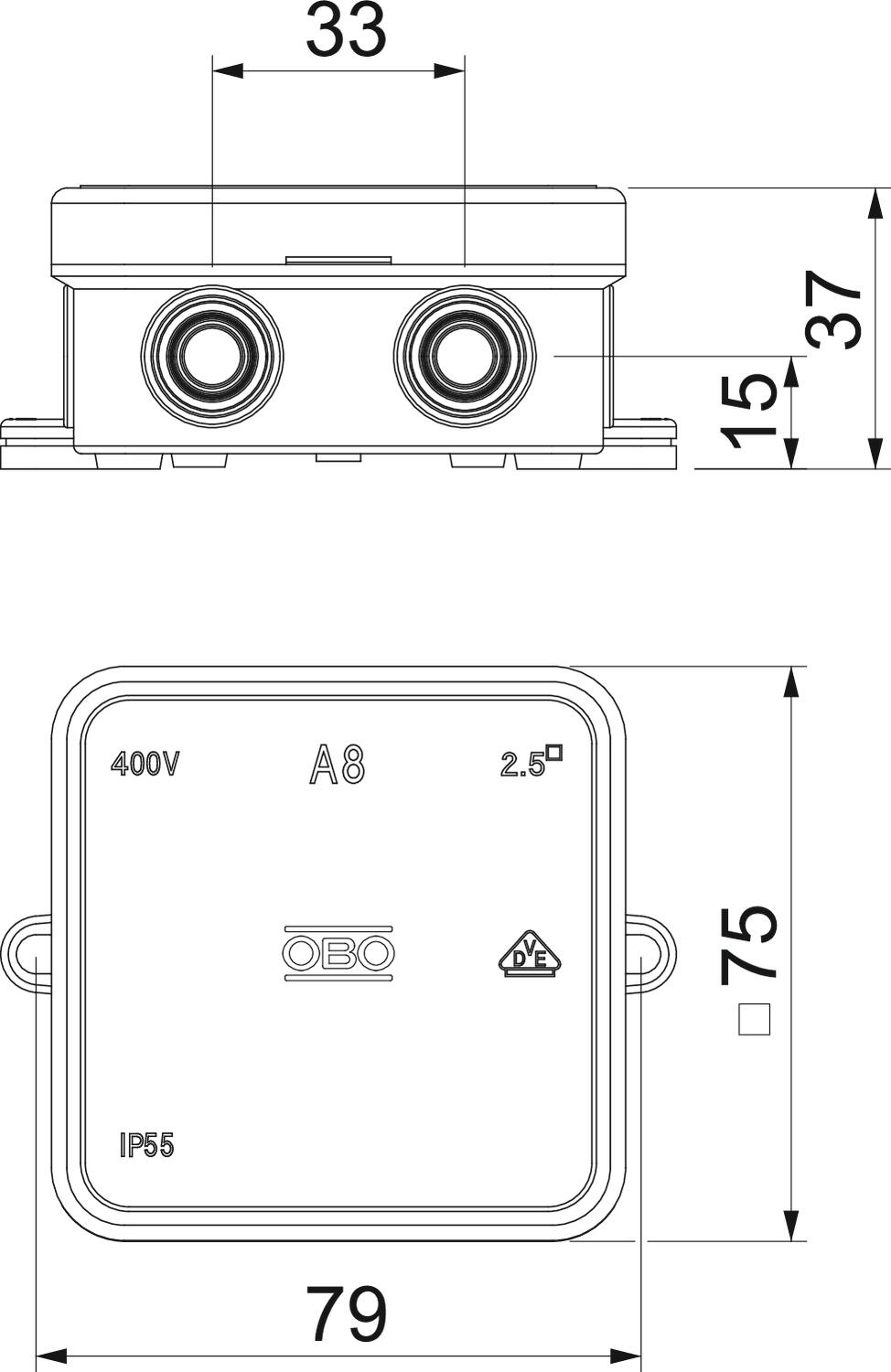

Dimensions: 75 x 75 x 36.2 mm.
Internal clearance: 65 x 65 x 32 mm
For every 10 sockets 1 cutting tool

Technical data

Dimensions

Clear internal dimensions	65x65x32 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,0501 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Cover	Not transparent
Cover fastening	Locking
Dimension	75x75x36
Entry from rear	no
Equipment	Without
Expandable	yes
Explosion-tested version	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	36,7 mm
Junction box cover version	Blanking lid
Length	75 mm
Maintain electrical functions	Without
Material	Polyethylene Eco

Max. Conductor cross-section	2,5 mm²
Measured insulation voltage Vi	690 V
Mounting type	Wall/ceiling mounting
No. of entries	7
Nominal cross-section, min.	2,5 mm²
Nominal voltage	690 V
Permitted temperature range, max.	45 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP55
Recycled material content	62 %
Sealable	no
Shape	Square
Transparent lid	no
Type of entry	Cable
Type of entry	Cable
Type of housing penetration	Pre-marking
Weatherproof	no
Width	75 mm
with lid	yes
With screening	no

All types

All types

Types	Clear internal dimensions	No. of entries	Protection rating	Colour	Item no.	Quantity	SSU
A 8	65x65x32 mm	7	IP55	Light grey; RAL 7035	2000016	piece	10 piece
A 8 ECO	65x65x32 mm	7	IP55	Light grey; RAL 7035	2000018	piece	1 piece
A 8 HF RO	65x65x32 mm	7	IP55	Red	2000059	piece	10 piece
A 8 HF RW	65x65x32 mm	7	IP55	Pure white; RAL 9010	2000075	piece	10 piece
