Accessory mounting box BK GD, single 1 | Bolts
morepic-1

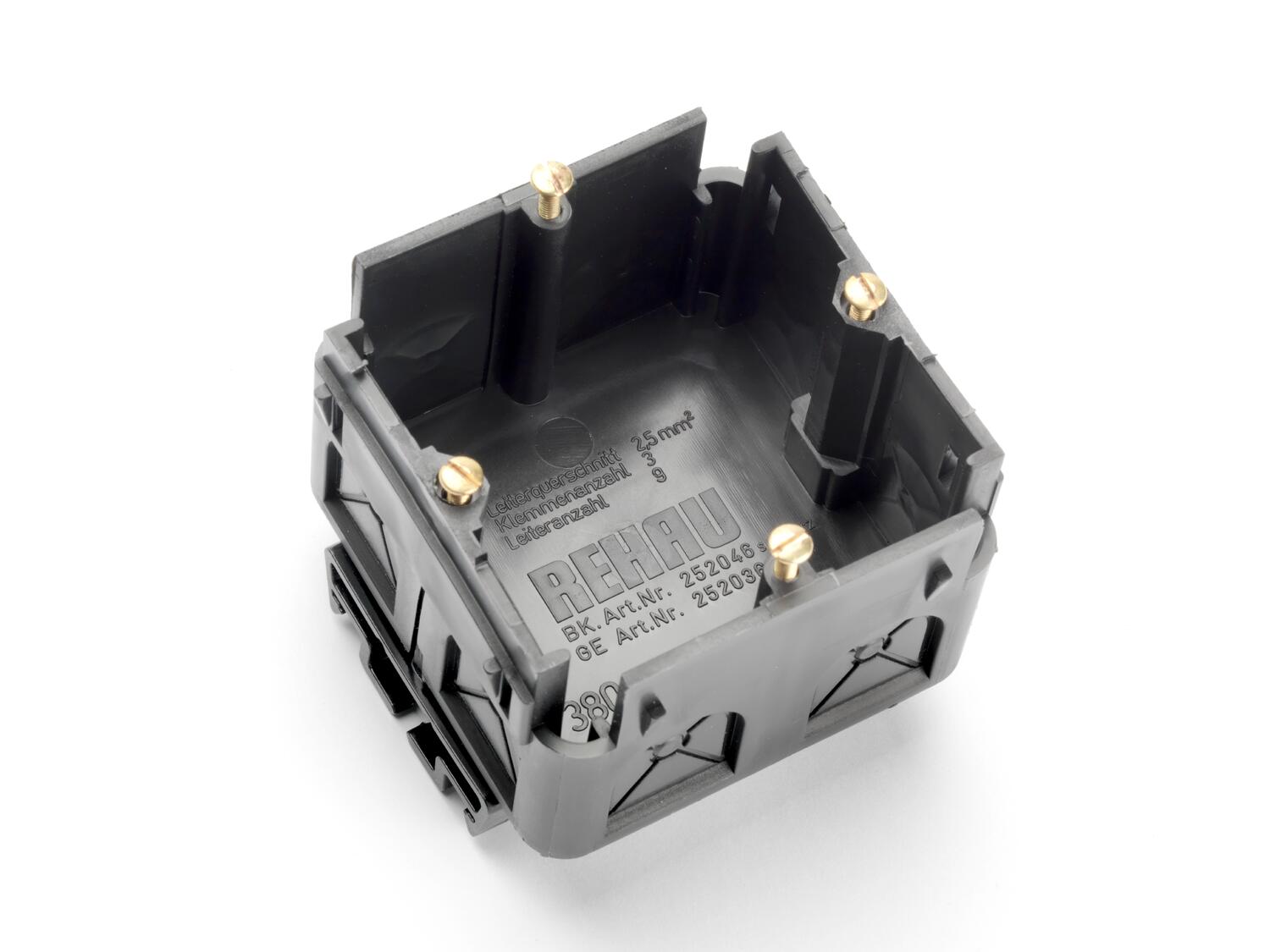

Accessory mounting box BK GD, single

Item no. 6133581 | EAN 4012196716777

6133581 / BK GD SW
1
Bolts
Product description
Product description
Single SIGNO accessory mounting box for the connection of power and data technology in the SIGNO BK, BA and BS trunking systems.

Toolless mounting through fixing with an eccentric rotational lock and time-saving cable connection.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Accessory mounting type Bolts
Box mounting type Rear wall
CO2 Footprint (GWP) Cradle-to-Gate 0,2157 kg CO2e / 1 Piece
Colour Jet black; RAL 9005
Device type Miscellaneous
Dimension 62x70x71
Fastening track Other
Halogen-free yes
Height 62 mm
Length 71 mm
Material Polypropylene
Number of units 1
Strain relief option yes
Version for Closed
Width 70 mm
With connection compartment yes
All types

All types

Types Number of units Accessory mounting type Item no. Quantity SSU
BK GD SW 1 Bolts 6133581
10 piece
Downloads

Download

EU declaration of conformity BK GD SW / 6133581 , 0.11MB , pdf
Download
REACH Declaration of conformity BK GD SW / 6133581 , 0.12MB , pdf
Download
RoHS Declaration of conformity BK GD SW / 6133581 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
