Add-on tee, EcoLine, FS 500 | zinc
morepic-1 morepic-2

Add-on tee, EcoLine, FS

Item no. 6042183 | EAN 4012197485245

zinc
Product description
Product description

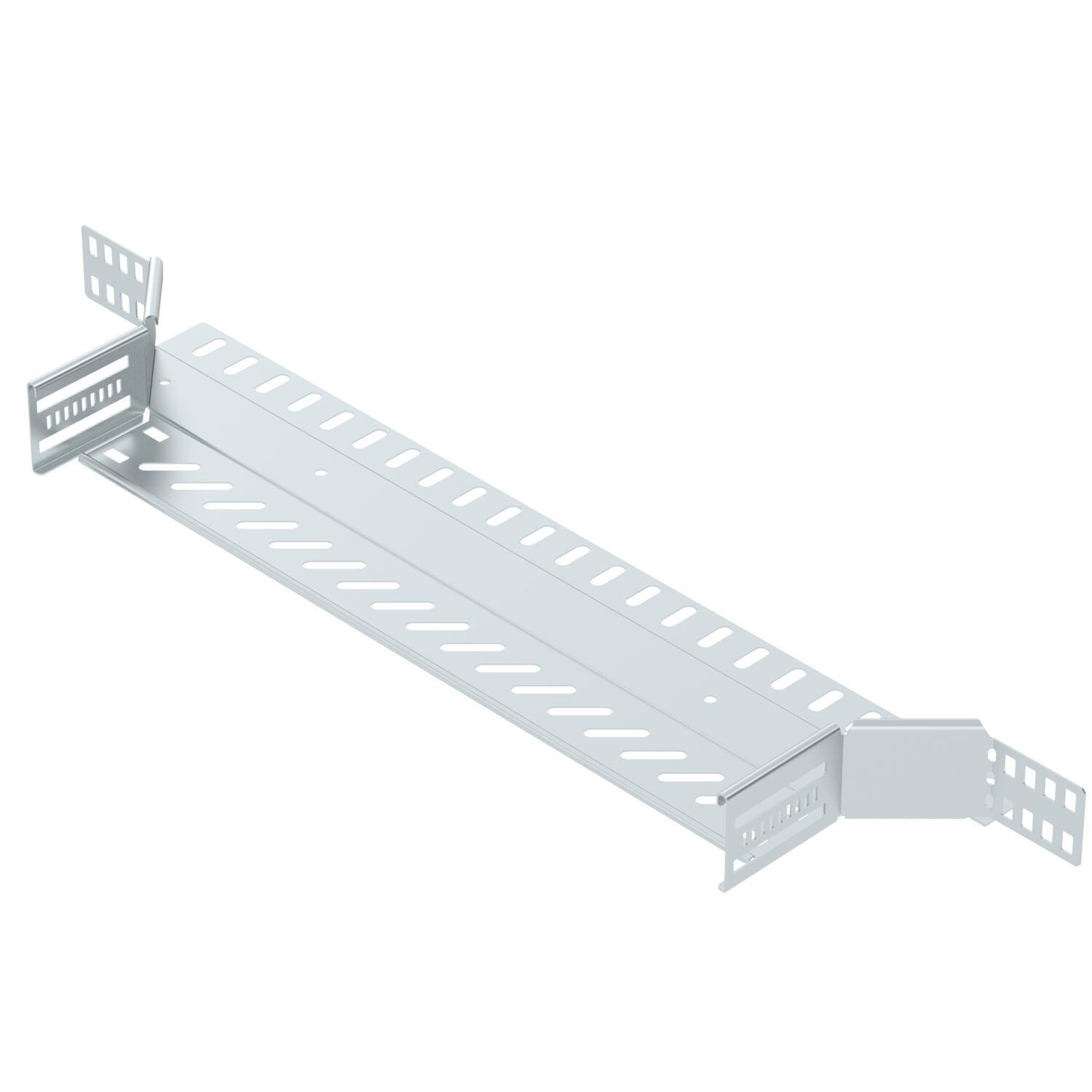

Add-on tee made from CO2-reduced steel for the creation of a horizontal branch or cross-over. Fitting for latchable and screwable cable trays, side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used in indoor areas. Fastening material must be ordered separately.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • OBO ECOLine
  • CO₂-reduziertes Material
  • Packaging without plastic
  • Reusable after de-installation/dismantling
  • CO₂ footprint (PCF)
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 1,5158 kg CO2e / 1 Piece
Colour zinc
Connector version Integrated connector
Departing width 500 mm

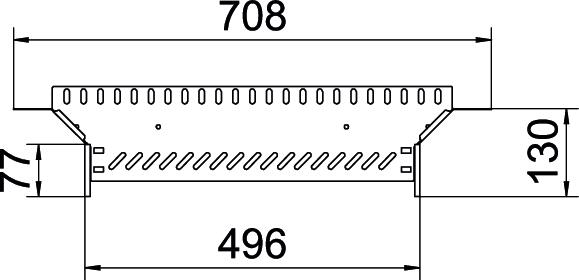

Dimension 60x500
Dimension B 500 mm
Height 60 mm
Maintain electrical functions yes
Material Steel, CO2 reduced
Material thickness, floor plate 1 mm
NATO hole pattern no
Permitted temperature range, max. 120 °C
Permitted temperature range, min. -20 °C
Plate thickness 1 mm
Rail thickness 1,25 mm
Recommended quantity of bolts 16 St.
Rustproof steel, pickled no
Surface Strip galvanized
Type of connector, cable support system screwed/clamped
Wide-span version no
Width 500 mm
All types

All types

Types Width Colour Item no. Quantity SSU
RAA 610 FS ECO 100 mm zinc 6042175
1 piece
RAA 620 FS ECO 200 mm zinc 6042177
1 piece
RAA 630 FS ECO 300 mm zinc 6042179
1 piece
RAA 640 FS ECO 400 mm zinc 6042181
1 piece
RAA 650 FS ECO 500 mm zinc 6042183
1 piece
RAA 660 FS ECO 600 mm zinc 6042185
1 piece
Downloads

No invitation to tender text is available for this product.
