Adjustable connector 200 FT
Item no. 6083210 | EAN 4012196947898
- Product description
-

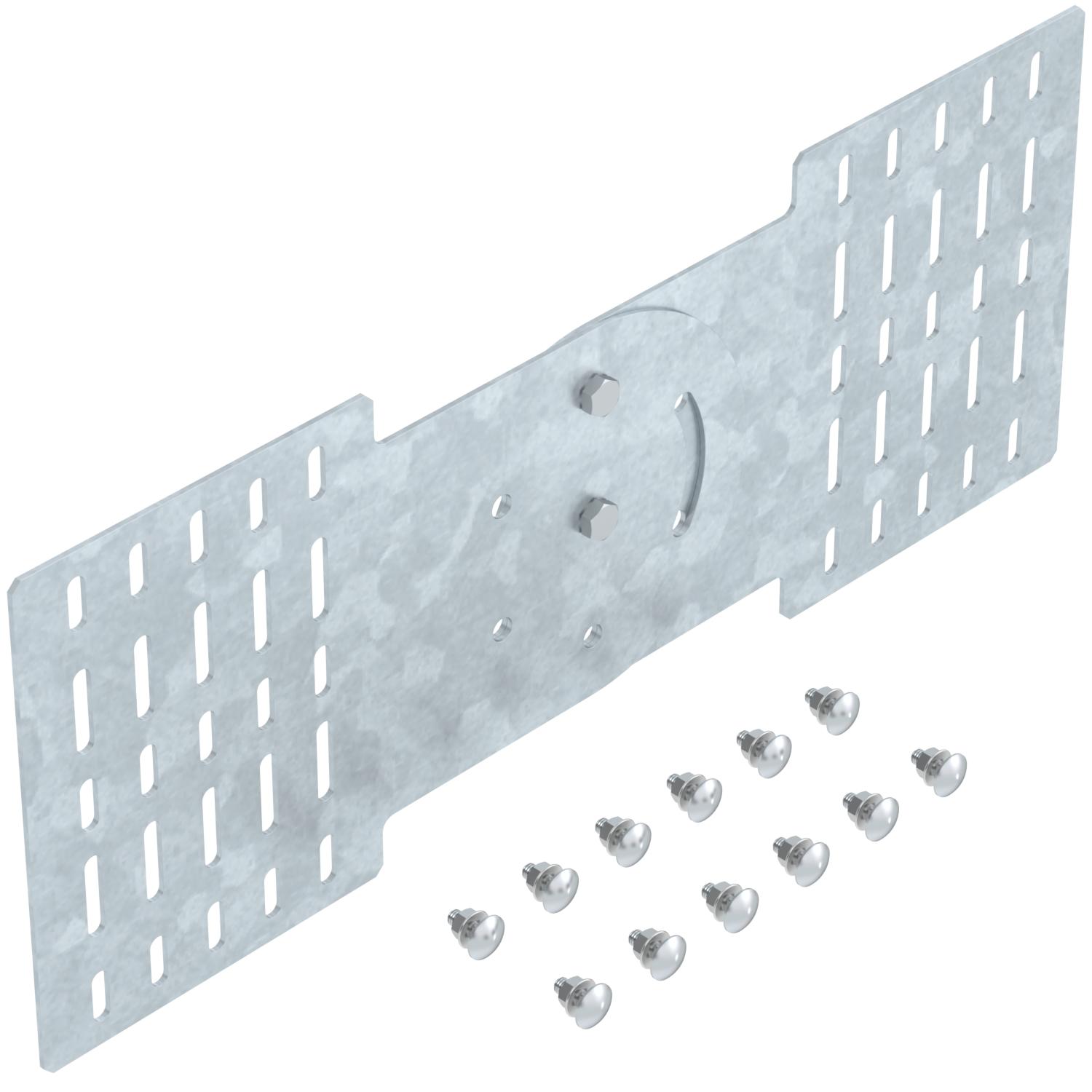

Product descriptionAdjustable connector for vertically rounded connections of cable trays (FT) with a side height of 200 mm.
-
- Technical data
-
Technical data

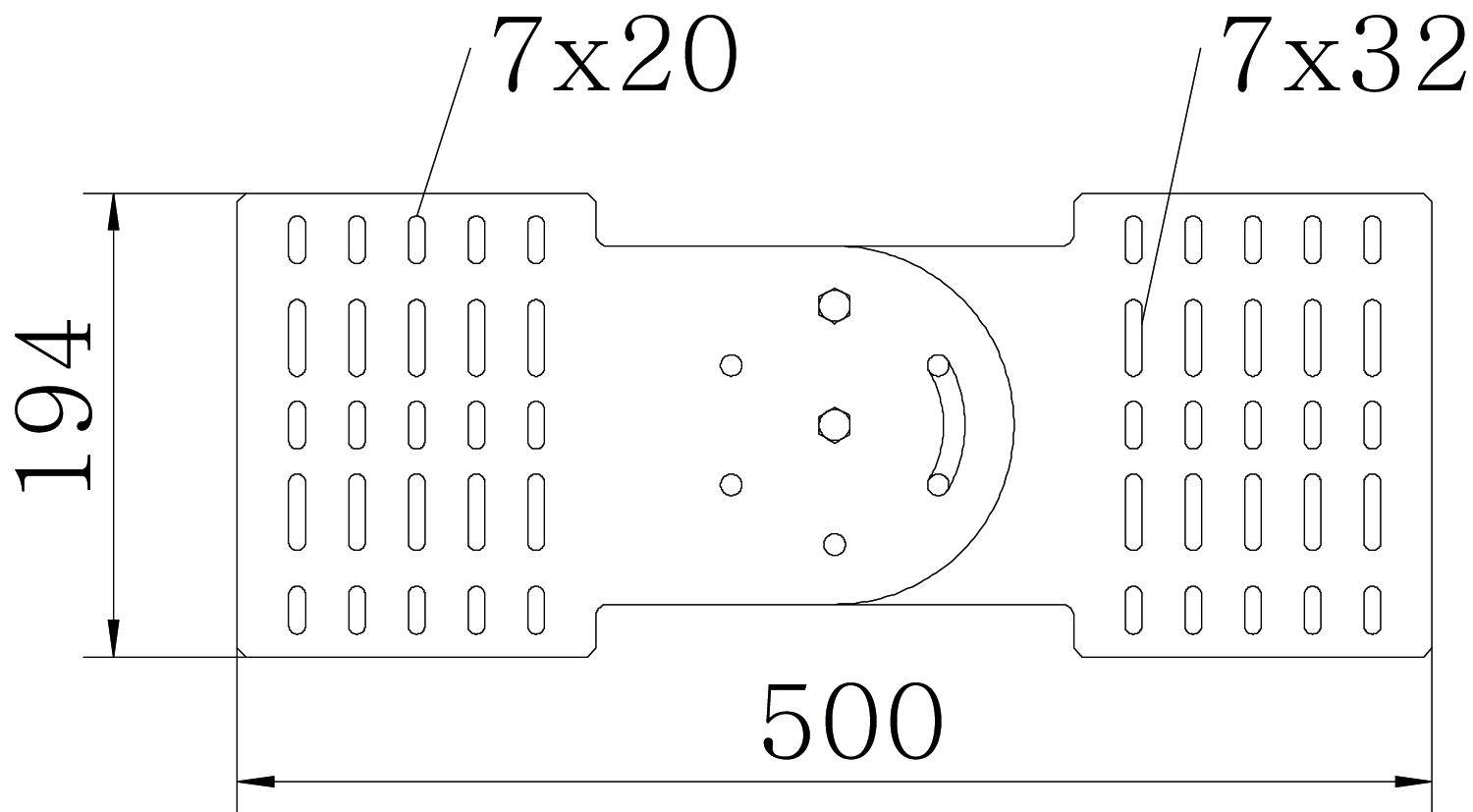

Adjustable connector, horizontal no Articulated connector, vertical yes CO2 Footprint (GWP) Cradle-to-Gate 6,731 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 200x500 Height 8 in Height 194 mm Length 500 mm Maintain electrical functions no Material Steel Plate thickness 2,5 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 200 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight connector Width 16 mm - All types
- Downloads
-
Data sheet GVM 200 FT / 6083210 , 0.19MB , pdfEU declaration of conformity GVM 200 FT / 6083210 , 0.10MB , pdfREACH Declaration of conformity GVM 200 FT / 6083210 , 0.12MB , pdfRoHS Declaration of conformity GVM 200 FT / 6083210 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
