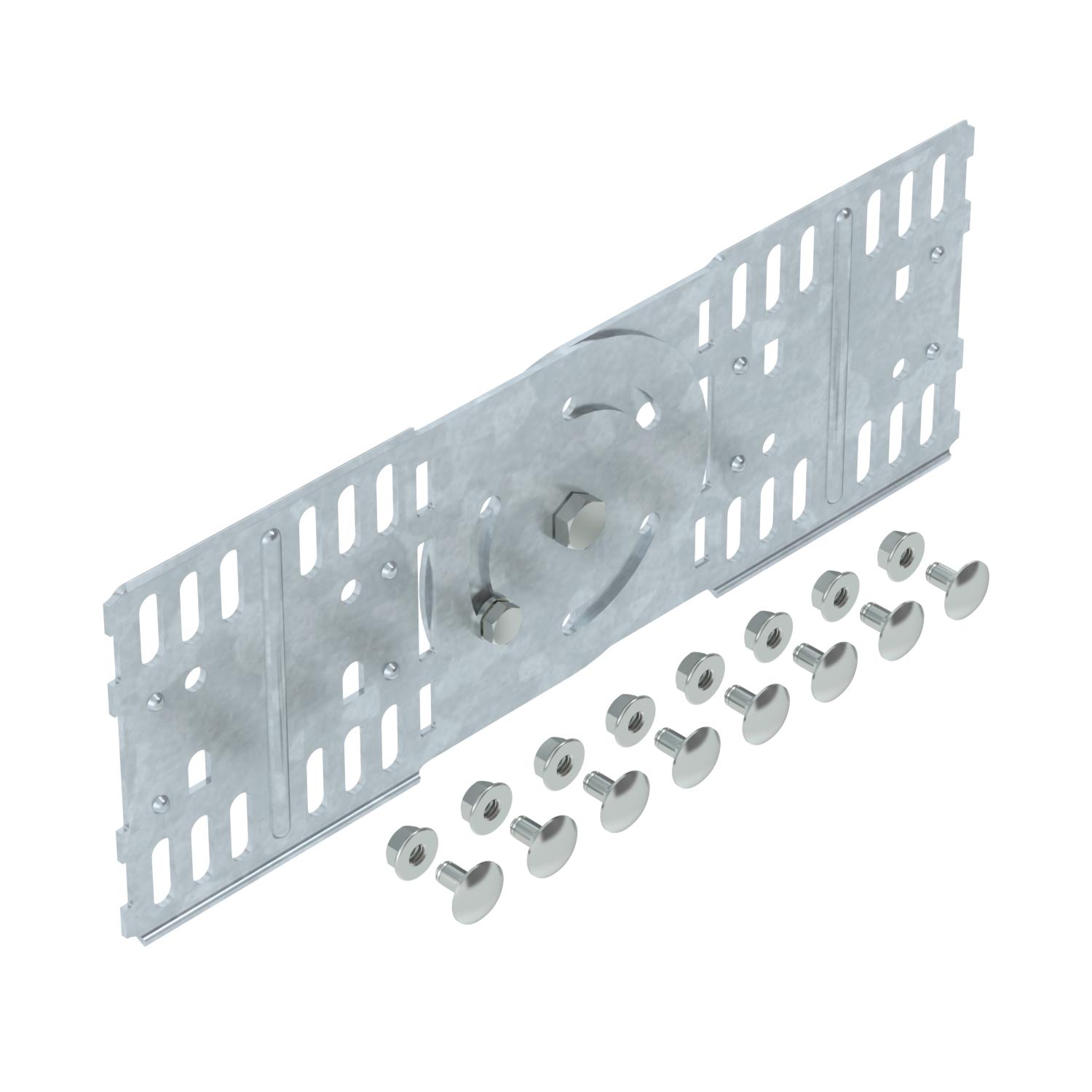

Adjustable connector RGV 110 FT SOMY
Item no. 7196075 | EAN 4012196056712
- Product description
-
Product descriptionAdjustable connector for cable trays and barrier strips with a side height of 60 mm.
The surface coating is a coating created in a single-dip method with extra-high zinc thicknesses.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical yes CO2 Footprint (GWP) Cradle-to-Gate 2,2555 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 110x300 Dimension 300 x 106 Height 110 mm Length 300 mm Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Hot-dip galvanised 85 µm Version for Straight connector Wide-span version no Width 16 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RGV 110 FT SO / 7196075 , 0.20MB , pdfEU declaration of conformity RGV 110 FT SO / 7196075 , 0.11MB , pdfREACH Declaration of conformity RGV 110 FT SO / 7196075 , 0.12MB , pdfRoHS Declaration of conformity RGV 110 FT SO / 7196075 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
