Adjustable connector SM FS
Item no. 7081995 | EAN 4012196985647
- Product description
-
Product descriptionAdjustable connectors as internal connectors to connect cable ladders and fittings of 110 mm side height.
-
- Technical data
-
Technical data

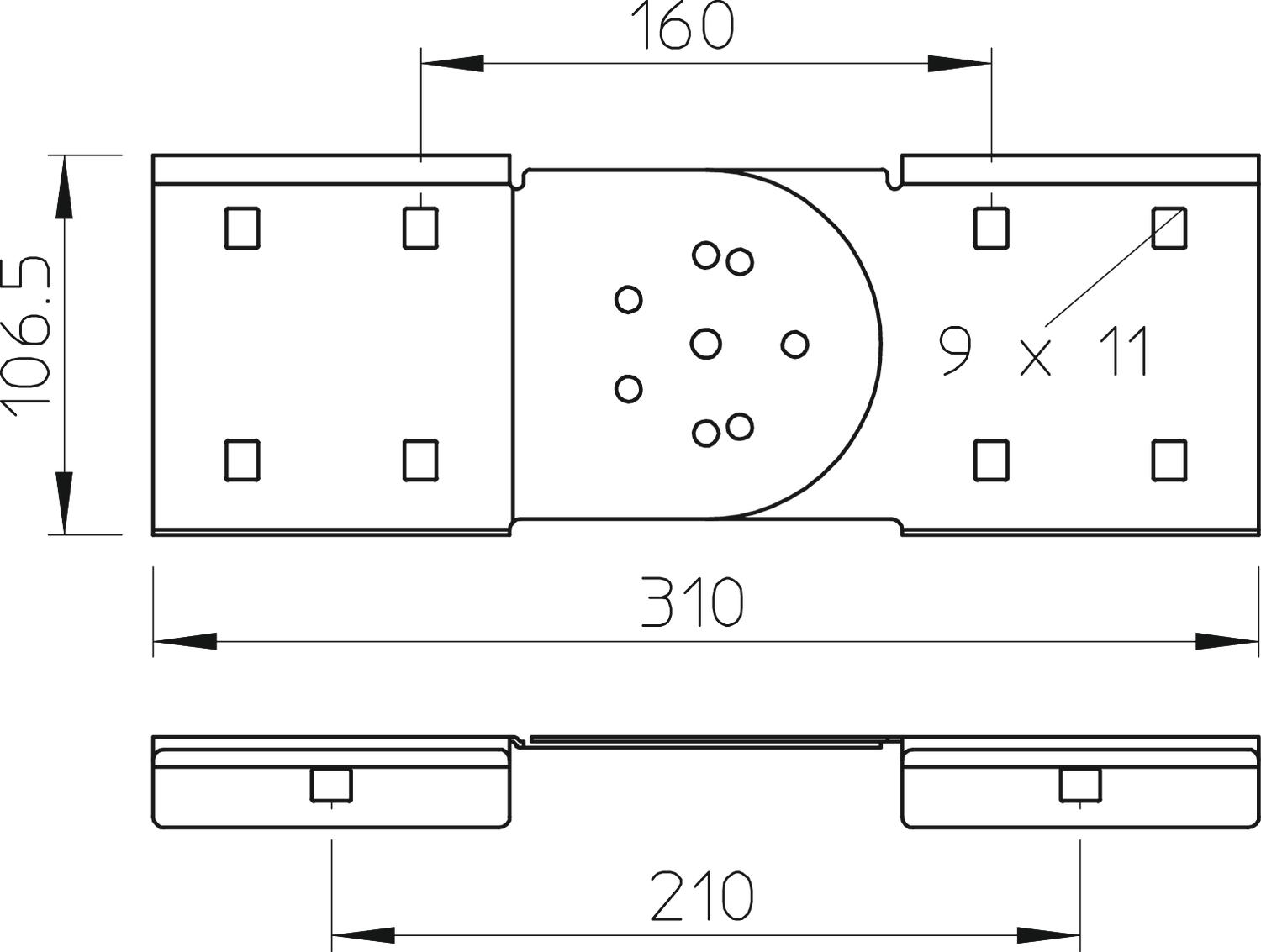

Adjustable connector, horizontal no Articulated connector, vertical yes CO2 Footprint (GWP) Cradle-to-Gate 1,8153 kg CO2e / 1 Piece Colour zinc Connection type Screw connector Dimension 310 x 106,5 x 1,5 Dimension 110x300 Height 4 in Height 110 mm Length 300 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight connector Wide-span version no Width 16 mm - All types
- Downloads
-
Data sheet RGV110-SM FS / 7081995 , 0.21MB , pdfCatalogue Cable support systems , 2.10MB , pdfEU declaration of conformity RGV110-SM FS / 7081995 , 0.11MB , pdfREACH Declaration of conformity RGV110-SM FS / 7081995 , 0.12MB , pdfRoHS Declaration of conformity RGV110-SM FS / 7081995 , 0.13MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
