ATR 2212 cable routing trunking, with adhesive tape 2000 | 24.4 | 12.6 | Pure white; RAL 9010
morepic-1 morepic-2

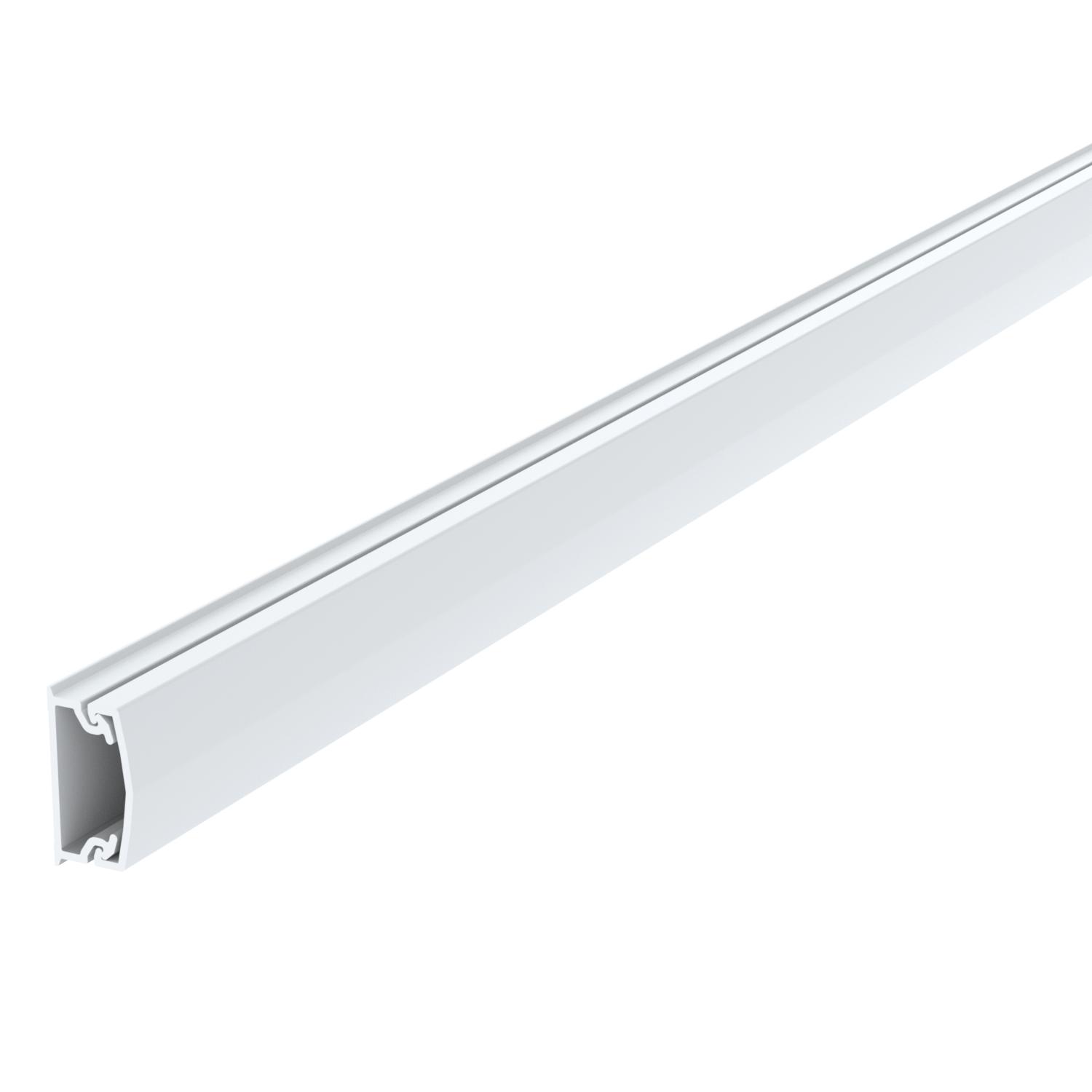

ATR 2212 cable routing trunking, with adhesive tape

Item no. 6134550 | EAN 4012197391416

6134550 / ATR 2212 ADH
2000 mm
24.4 mm
12.6 mm
Pure white; RAL 9010
Product description
Product description
ATRIANE mini trunking for covered, discreet cable routing in internal areas.

Trunking base with adhesive tape for direct mounting on the wall. With patented surface with HDF sealing for considerably reduced sensitivity to scratches. Cover designed in the shape of a sloping roof.

  • AFNOR Quality symbol of the French standardisation institute
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,2448 kg CO2e / 1 Meter
Colour Pure white; RAL 9010
Delivery on a roll no

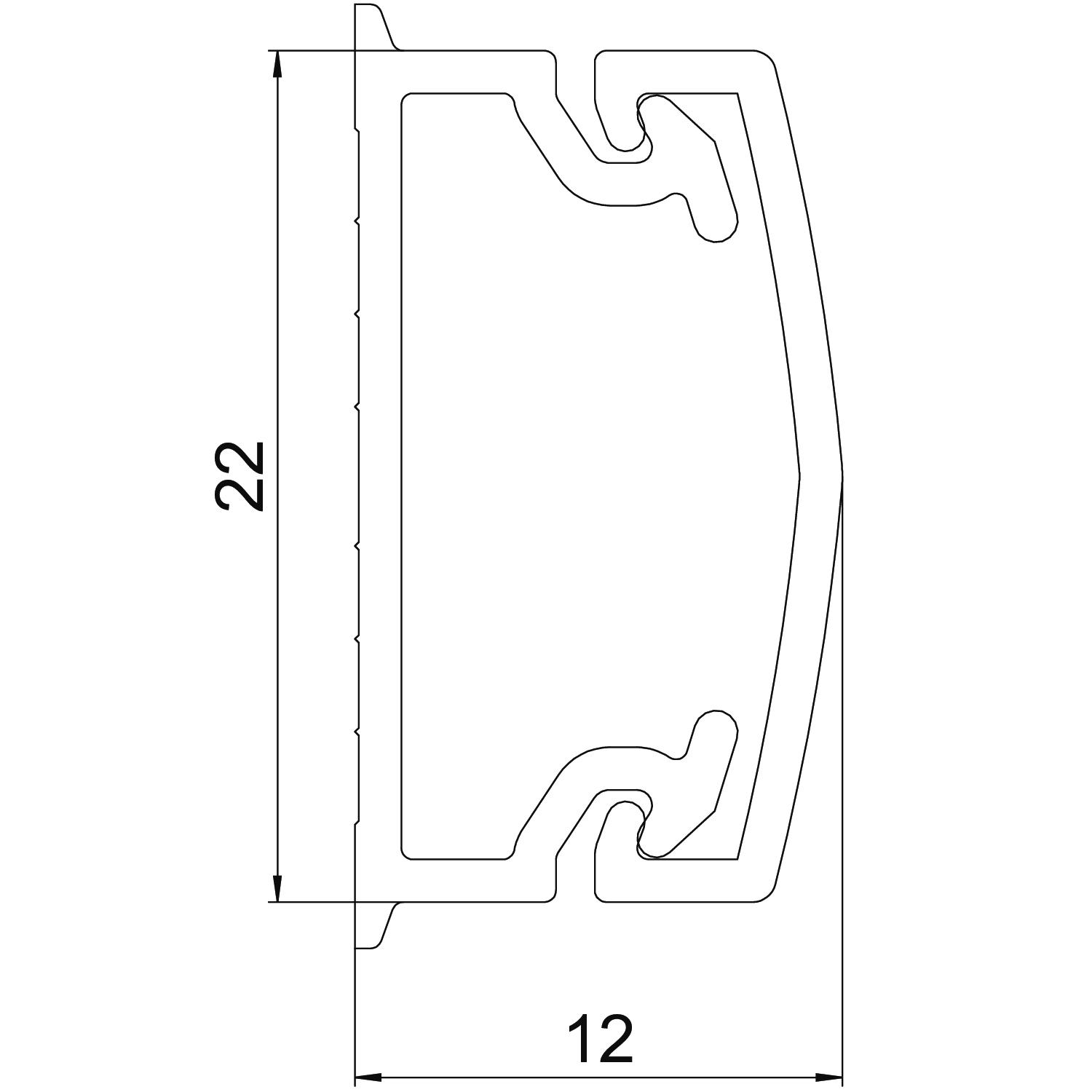

Dimension 2000x22x12
Duct connector no
Fastening type Self-adhesive
Halogen-free no
Height 12,6 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Protective film no
Transparent no
Usable cross-section 160 mm²
Version, cable trunking cover Loose
Width 24,4 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
ATR 2212 ADH 2000 mm 24.4 mm 12.6 mm Pure white; RAL 9010 6134550
132 m
Downloads

Download

EU declaration of conformity ATR 2212 ADH / 6134550 , 0.10MB , pdf
