Bend (angle)	90°
Change of direction	Horizontal
CO2 Footprint (GWP) Cradle-to-Gate	31,6017 kg CO2e / 1 Piece
Colour	zinc
Connector version	Without connectors

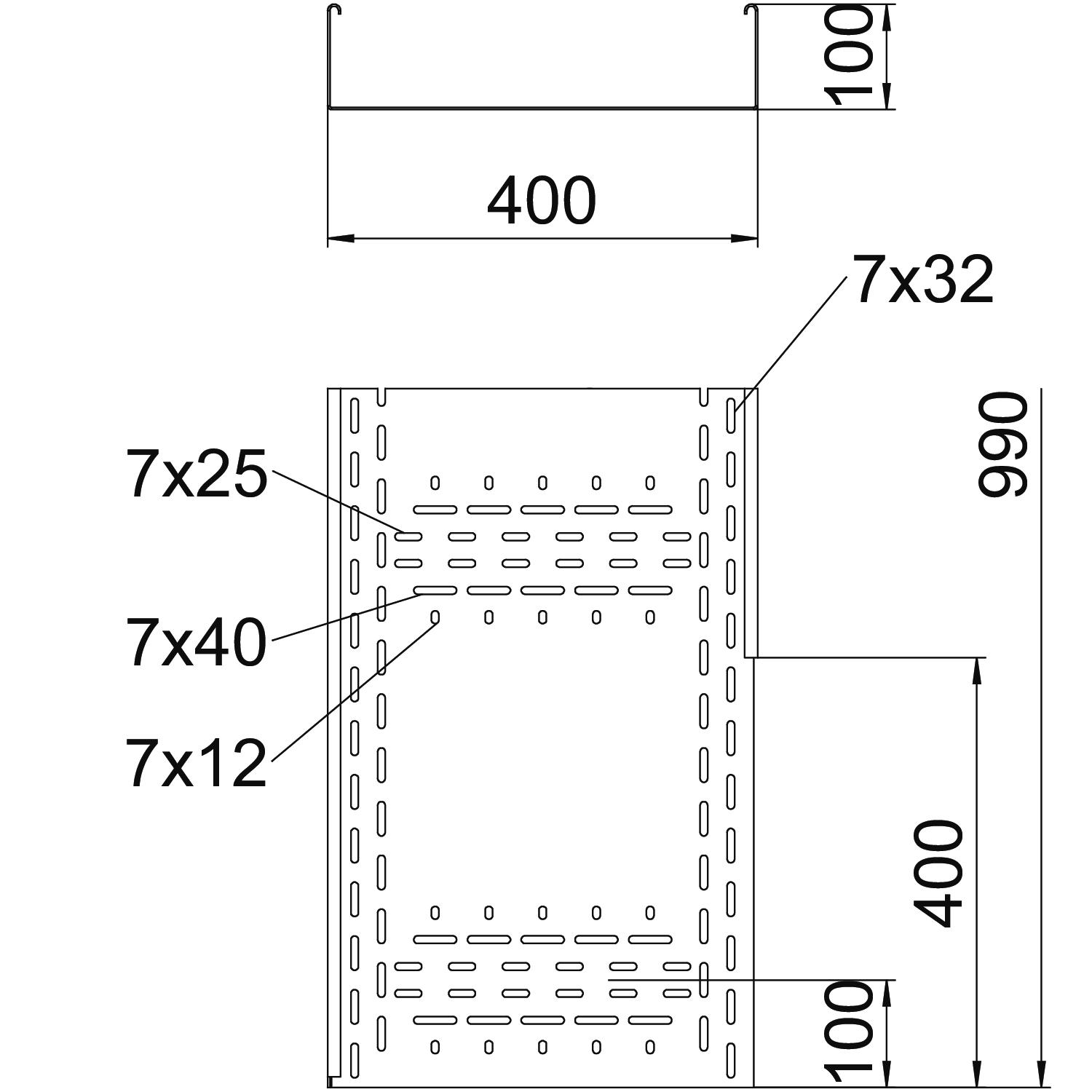

Dimension	100x400x1000
Dimension B	400 mm
Dimension H	100 mm
Dimension L	1000 mm
Height	100 mm
Length	1000 mm
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	yes
NATO hole pattern	no
Permitted temperature range, max.	120 °C
Permitted temperature range, min.	-20 °C
Plate thickness	2 mm
Rustproof steel, pickled	no
Side perforation	yes
Surface	Strip galvanized
Type	Bend, rigid
Type of connector, cable support system	Screwed
Wide-span version	no
Width	400 mm

Types	Width	Plate thickness	Maintain electrical functions	Item no.	Quantity	SSU
BKRS 1010 90L FS	100 mm	2 mm	no	6061918	piece	1 piece
BKRS 1020 90L FS	200 mm	2 mm	no	6061920	piece	1 piece
BKRS 1030 90L FS	300 mm	2 mm	no	6061922	piece	1 piece
BKRS 1040 90L FS	400 mm	2 mm	no	6061924	piece	1 piece
BKRS 1050 90L FS	500 mm	2 mm	no	6061926	piece	1 piece
BKRS 1060 90L FS	600 mm	2 mm	no	6061928	piece	1 piece
