BKRS FT support bracket
Item no. 6044541 | EAN 4012196695096
- Product description
-
Product description

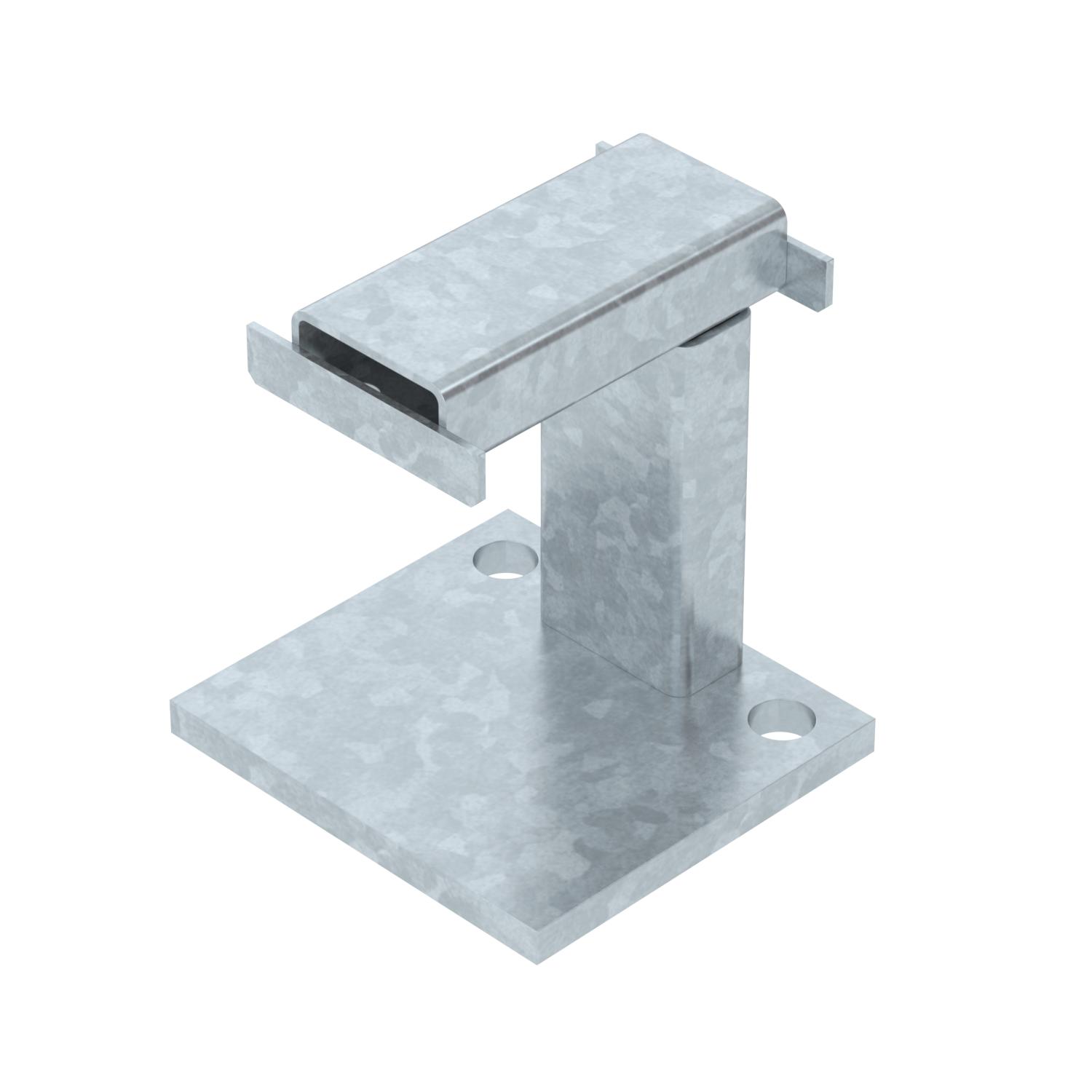

Support bracket, made of closed rectangular steel pipe, as a stand-off of the walkable cable tray system.
-
- Technical data
-
Technical data
Dimension B=100 for width max. 100 mm for width min. 100 Material Steel Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Surface Hot-dip galvanised Tray fastening Screw-on Version for Support bracket Version for Miscellaneous Dimensions

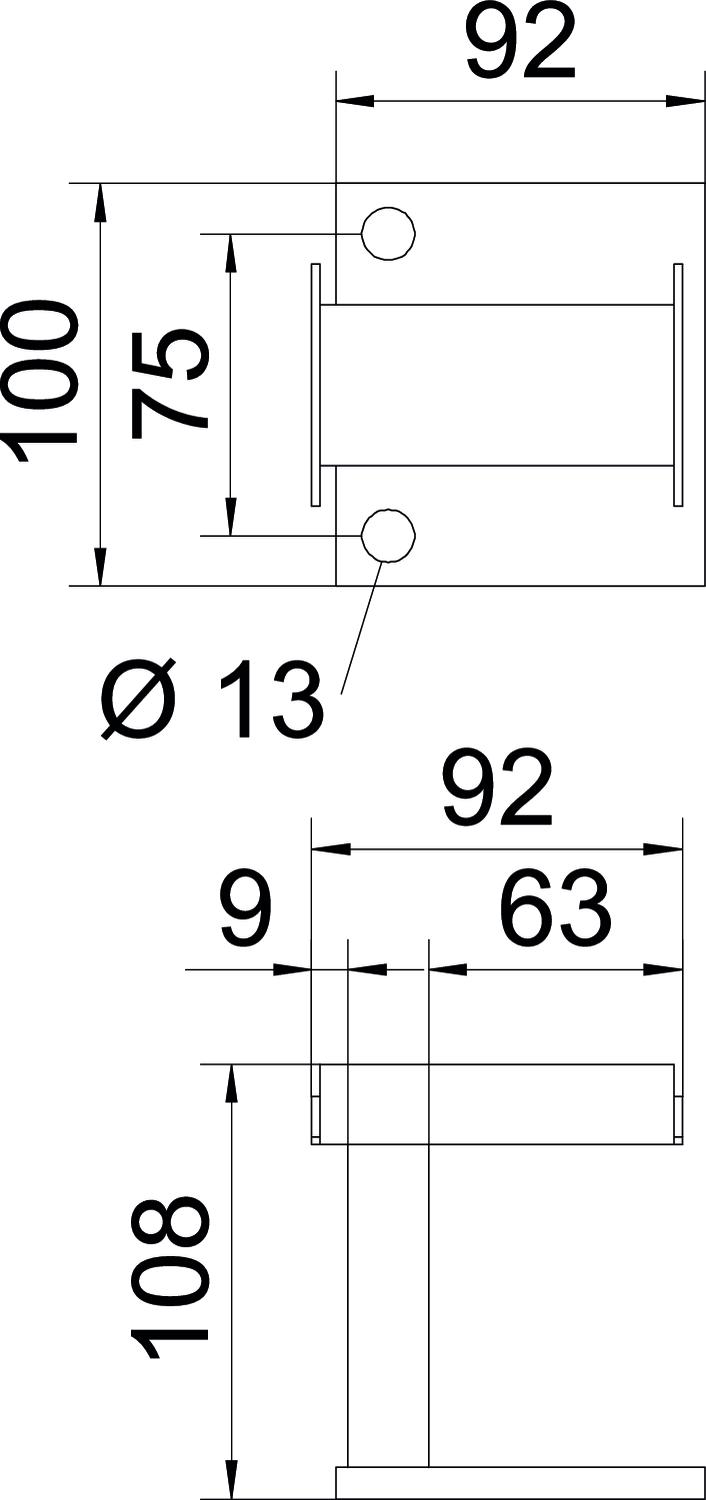

Dimension B 92 mm Dimension b1 11 mm Dimension b2 61 mm Dimension D 13 mm Height 108 mm Length 100 mm Width 98 mm - All types
- Downloads
-
Data sheet STA BKRS 100 FT / 6044541 , 0.21MB , pdfDeclaration of conformity STA BKRS 100 FT / 6044541 , 0.13MB , pdfREACH Declaration of conformity STA BKRS 100 FT / 6044541 , 0.12MB , pdfRoHS Declaration of conformity STA BKRS 100 FT / 6044541 , 0.13MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Audi AG , 0.05MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdf
