Cable routing trunking MKS 16, trunking width 38 2000 | 38 | 16 | Pure white; RAL 9010
morepic-1 morepic-2

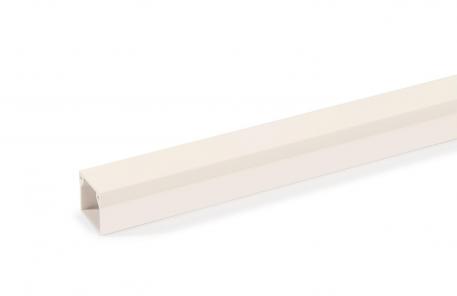

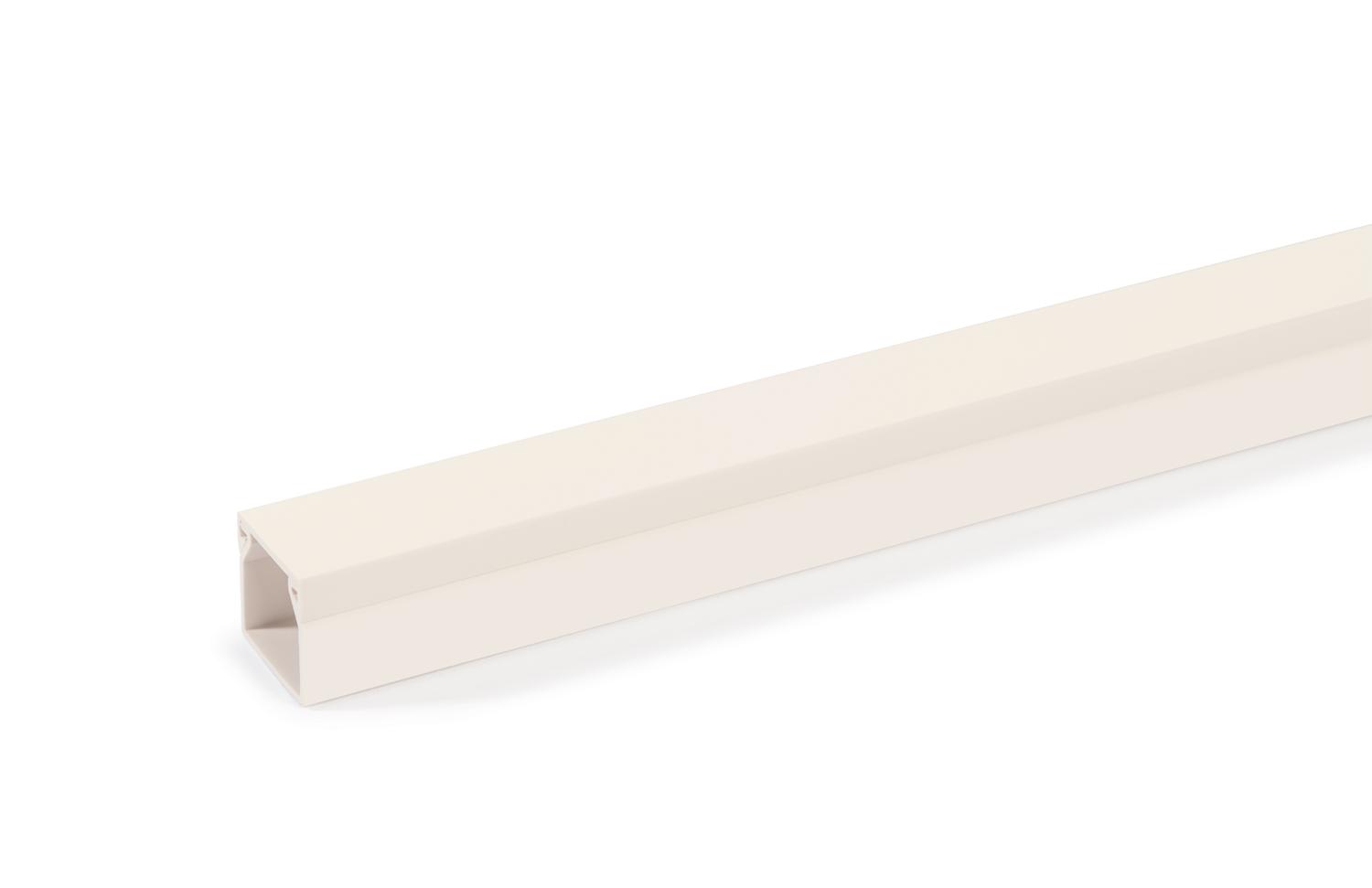

Cable routing trunking MKS 16, trunking width 38

Item no. 6130158 | EAN 4012196718146

2000 mm
38 mm
16 mm
Pure white; RAL 9010
Product description
Product description
MKS mini trunking for covered cable routing in internal areas.

Trunking base with base perforation for direct mounting on the wall.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 0,4848 kg CO2e / 1 Meter
Colour Pure white; RAL 9010
Delivery on a roll no
Dimension 2000x38x16
Duct connector no
Fastening type Base perforation
Halogen-free no
Height 16 mm
Length 2000 mm
Maintain electrical functions no
Material Polyvinylchloride
Protective film no
Transparent no
Usable cross-section 420 mm²
Width 38 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
MKS 1638 rws 2000 mm 38 mm 16 mm Pure white; RAL 9010 6130158
48 m
MKS 1638 KB rws 2000 mm 38 mm 16 mm Pure white; RAL 9010 6131362
42 m
Downloads

Download

EU declaration of conformity MKS 1638 rws / 6130158 , 0.10MB , pdf
Download
UK Declaration of Conformity MKS 1638 rws / 6130158 , 0.09MB , pdf
Download
REACH Declaration of conformity MKS 1638 rws / 6130158 , 0.12MB , pdf
Download
RoHS Declaration of conformity MKS 1638 rws / 6130158 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
