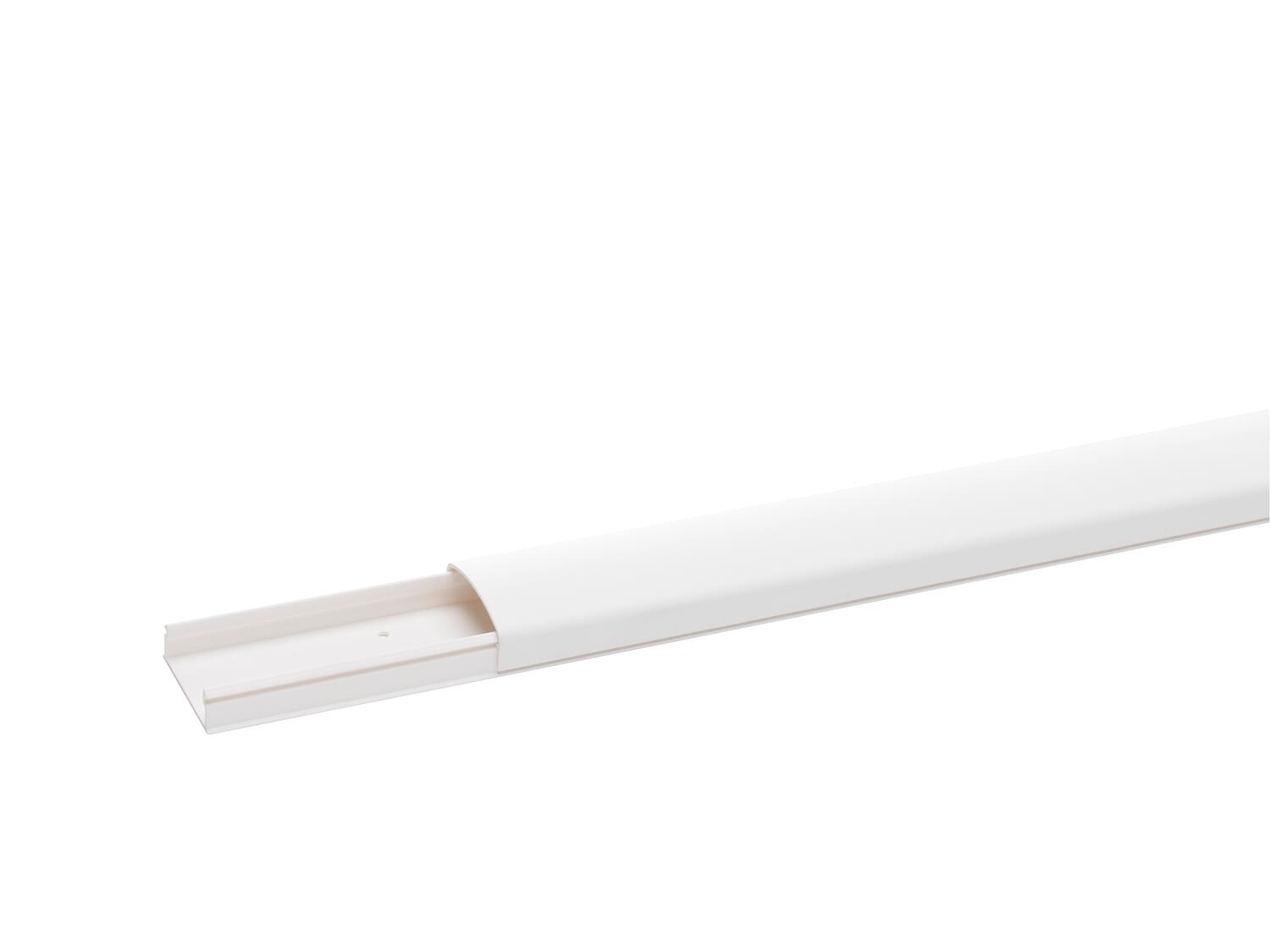

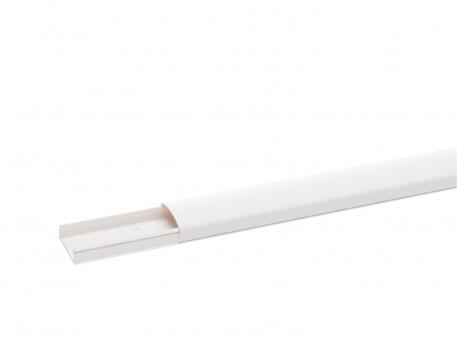

Cable routing trunking MKS 25, trunking width 38, with partition
Item no. 6130165 | EAN 4012196718191
- Product description
-
Product descriptionMKS mini trunking for covered cable routing in internal areas.
Trunking base with base perforation for direct mounting on the wall and partition to install different voltage levels.
-
- Technical data
-
Technical data
Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,6299 kg CO2e / 1 Meter Colour Pure white; RAL 9010 Delivery on a roll no Dimension 2000x38x25 Duct connector no Fastening type Base perforation Halogen-free no Height 25 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 3 Number of fixed partitions 1 Protective film no Transparent no Usable cross-section 730 mm² Width 38 mm - All types
- Downloads
-
Data sheet MKS 2538 TW rws / 6130165 , 0.14MB , pdfEU declaration of conformity MKS 2538 TW rws / 6130165 , 0.11MB , pdfUK Declaration of Conformity MKS 2538 TW rws / 6130165 , 0.09MB , pdfREACH Declaration of conformity MKS 2538 TW rws / 6130165 , 0.12MB , pdfRoHS Declaration of conformity MKS 2538 TW rws / 6130165 , 0.12MB , pdfNo invitation to tender text is available for this product.
