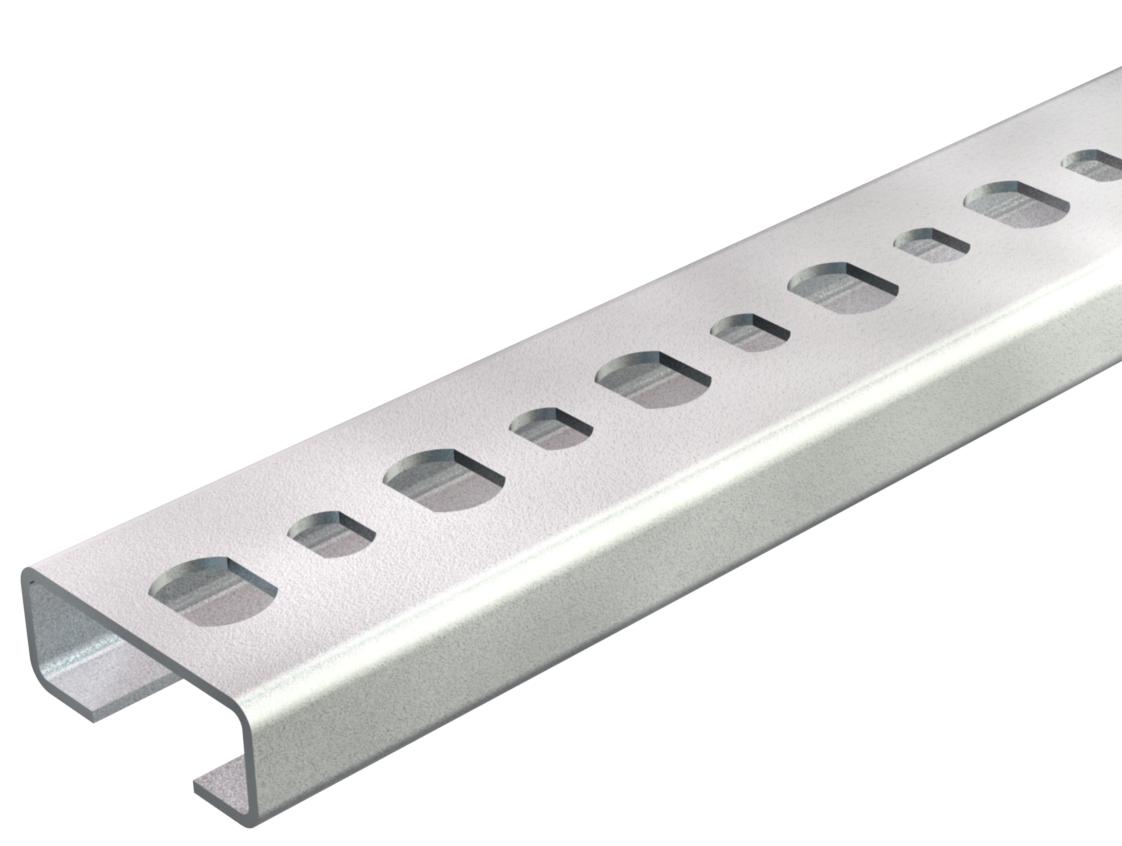

CL2510 profile rail, 11 mm slot, FS, perforated
Item no. 1108123 | EAN 4012195040811
- Product description
-
Product descriptionLight-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.
Perforated, cannot be broken.
-
- Technical data
-
Technical data

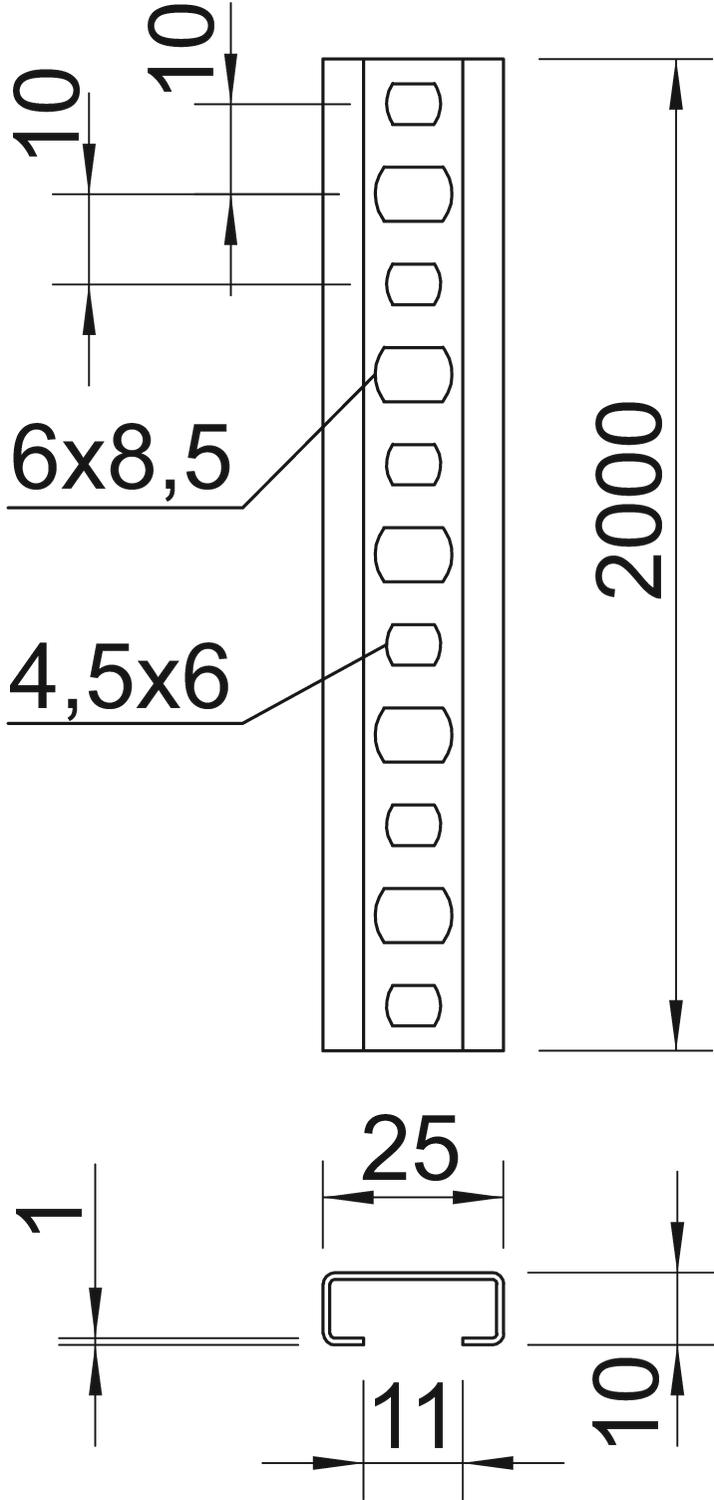

Breakable no Bundle 50 m CO2 Footprint (GWP) Cradle-to-Gate 0,9293 kg CO2e / 1 Meter Dimension 2000x25x10 Dimension L 2000 mm Drill hole spacing, centre 10 mm Height 10 mm Length 2000 mm Maintain electrical functions no Material Steel Material thickness 1 mm Profile shape C profile Slot width 11 mm Static value A 0,44 cm² Static value ly 0,06 cm⁴ Static value lz 0,44 cm⁴ Static value Wy 0,12 cm³ Static value Wz 0,35 cm³ Surface Strip galvanized Type of perforation Perforated back Version for Single profile Width 25 mm With perforation yes With toothing no - All types
