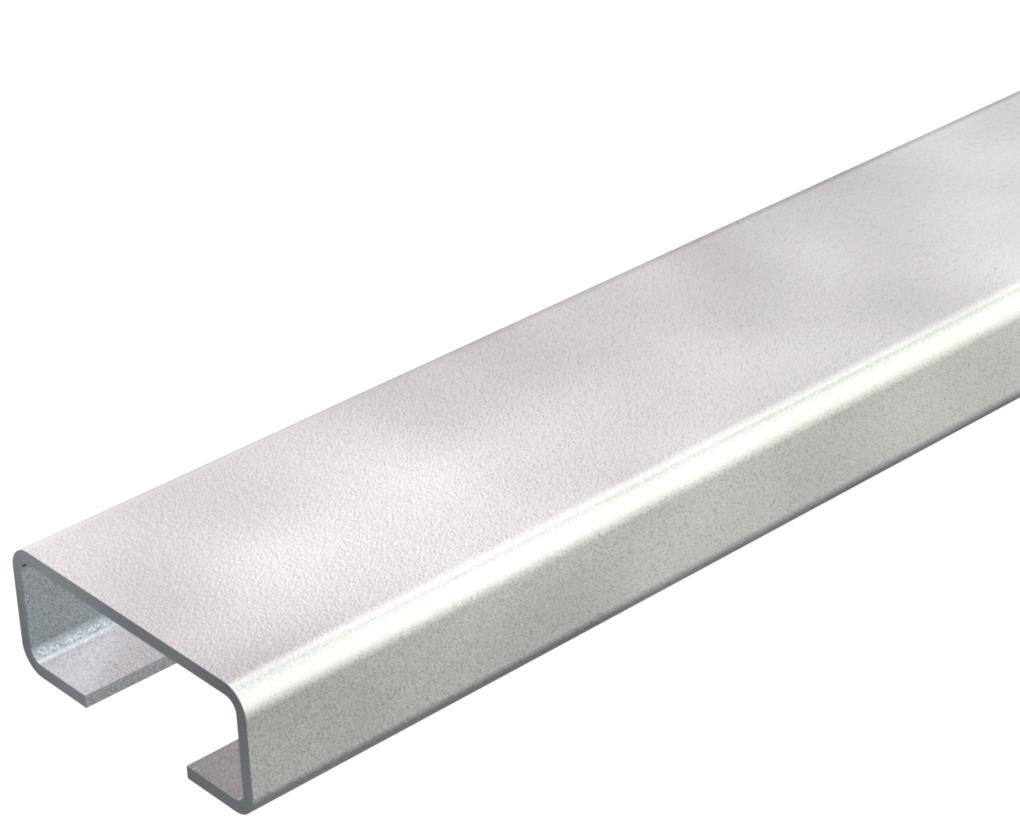

CL2510 profile rail, slot 11 mm, BK, unperforated
Item no. 1107038 | EAN 4012195040279
- Product description
-
Product descriptionLight-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.
Unperforated, non-breakable.
-
- Technical data
-
Technical data

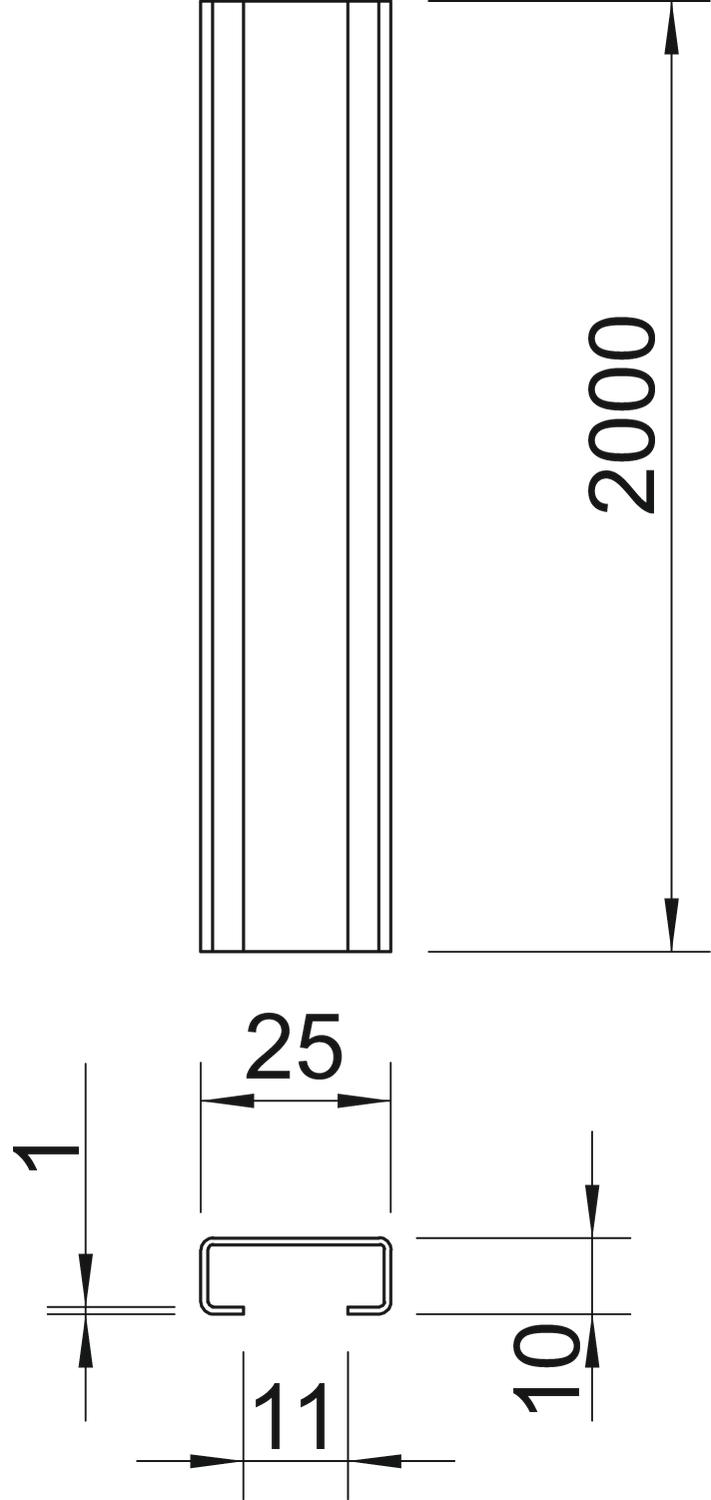

Breakable no Bundle 50 m CO2 Footprint (GWP) Cradle-to-Gate 0,7267 kg CO2e / 1 Meter Dimension 2000x25x10 Dimension L 2000 mm Height 10 mm Length 2000 mm Maintain electrical functions no Material Steel Material thickness 1 mm Profile shape C profile Slot width 11 mm Static value A 0,52 cm² Static value ly 0,08 cm⁴ Static value lz 0,44 cm⁴ Static value Wy 0,13 cm³ Static value Wz 0,35 cm³ Surface Bright Type of perforation Without Version for Single profile Width 25 mm With perforation no With toothing no - All types
