Clamp clip 2056, F foot, single, plastic pressure trough, FT 22 | 28 | 3

Clamp clip 2056, F foot, single, plastic pressure trough, FT

Item no. 1188210 | EAN 4012197405199

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	3 Nm

Product description

Product description

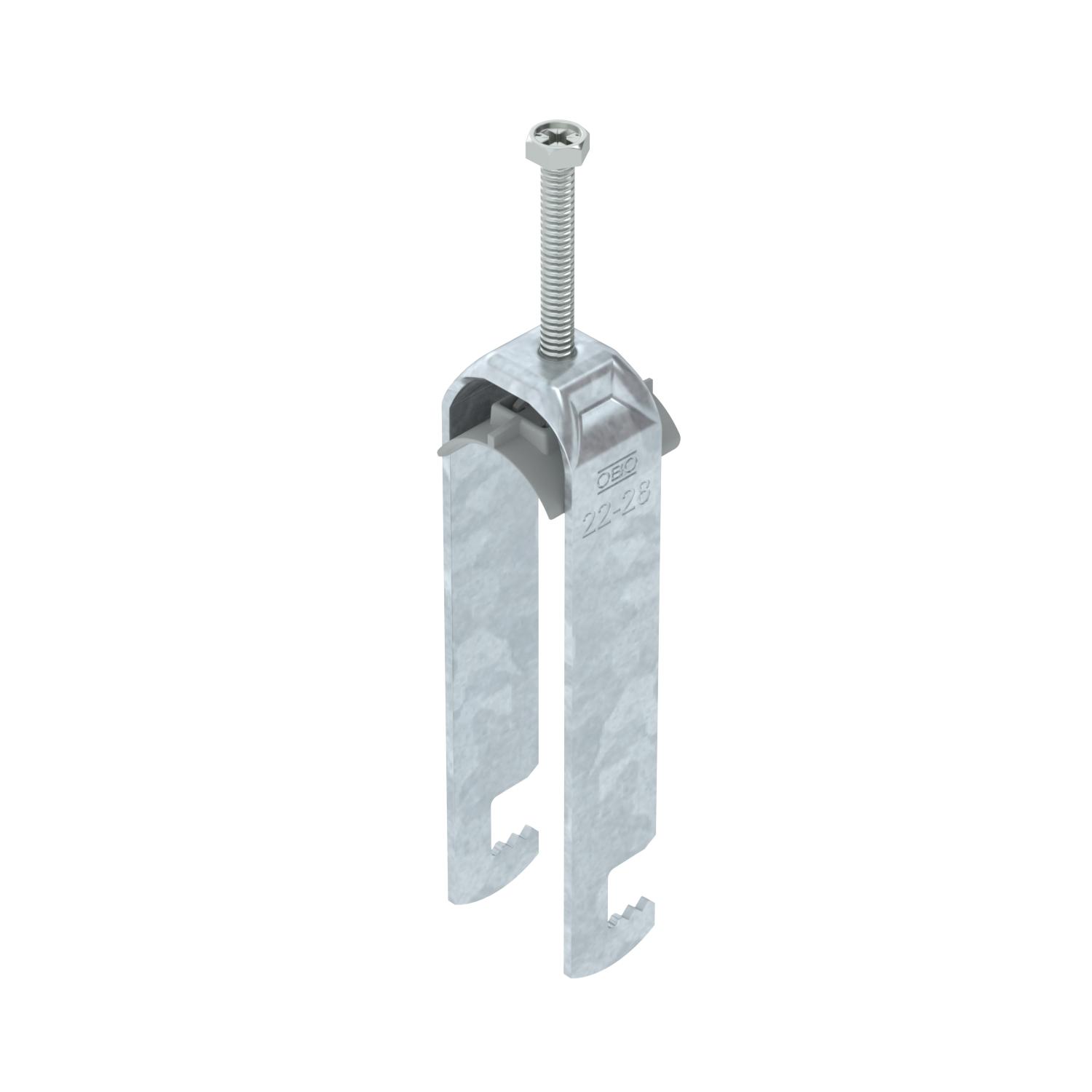

Clamp clip with F-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 3 single cables on flat bars. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. Multiple cables should be separated by double troughs. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,2974 kg CO2e / 1 Piece

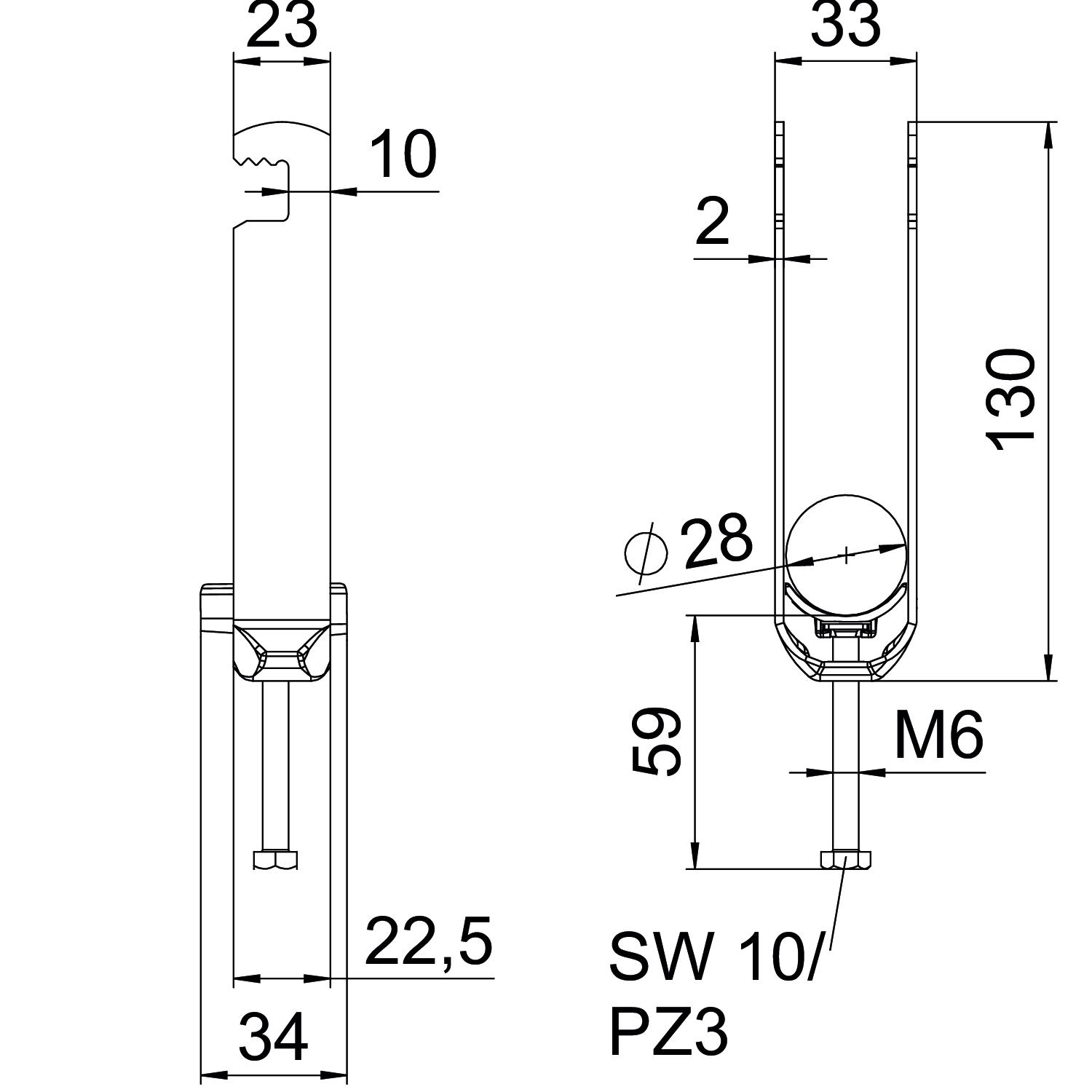

Dimension	22-28mm
Dimension A	22,5 mm
Dimension B	33 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	130 mm
Dimension L	59 mm
Dimension t	2 mm
For pipe diameter, max.	28 mm
For pipe diameter, min.	22 mm
Halogen-free	yes

Height	130 mm
Length	22,5 mm
Material	Steel
Material addition	Steel
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	3
Plate thickness	2 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M6
Width	33 mm
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F3-K-12 FT	8 mm	12 mm	3 Nm	1188201	piece	50 piece
BS-F3-K-16 FT	12 mm	16 mm	3 Nm	1188204	piece	50 piece
BS-F3-K-22 FT	16 mm	22 mm	3 Nm	1188207	piece	50 piece
BS-F3-K-28 FT	22 mm	28 mm	3 Nm	1188210	piece	50 piece
