Clamp clip, U base, 3x single-wire connection 37 | 40 | 5

Clamp clip, U base, 3x single-wire connection

Item no. 1174525 | EAN 4012195451334

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	5 Nm

Product description

Product description

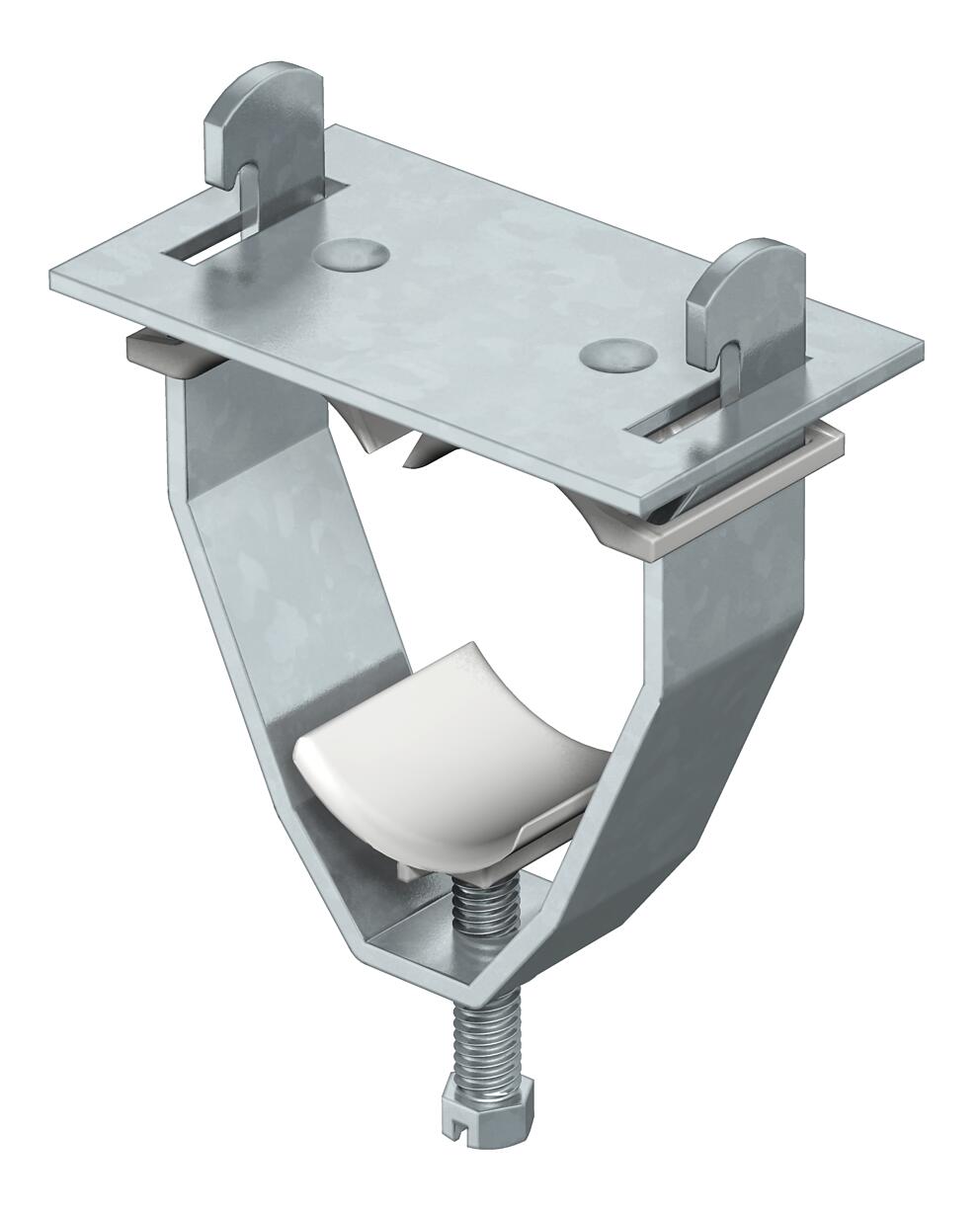

Clip element, bolt and lock plate made of hot-dip galvanised steel, pressure and counter-trough made of polypropylene, halogen-free, light grey RAL 7035.

Delivered complete with lock plate and counter-troughs.

The clamp clips 2056/U-E are used for systematic routing of single-wire cables in rotary current networks. As, with this routing type, the magnetic fields counteract each other, no heating is to be feared and steel clips can be used.

2056/U-E is suitable for all profile rails of 18 or 22 mm slot width.

Technical data

Technical data

Cable diameter, max.	40 mm
Cable diameter, min.	37 mm
Clamping range D, max.	40 mm
Clamping range D, min.	37 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,6662 kg CO2e / 1 Piece
Dimension	37-40mm

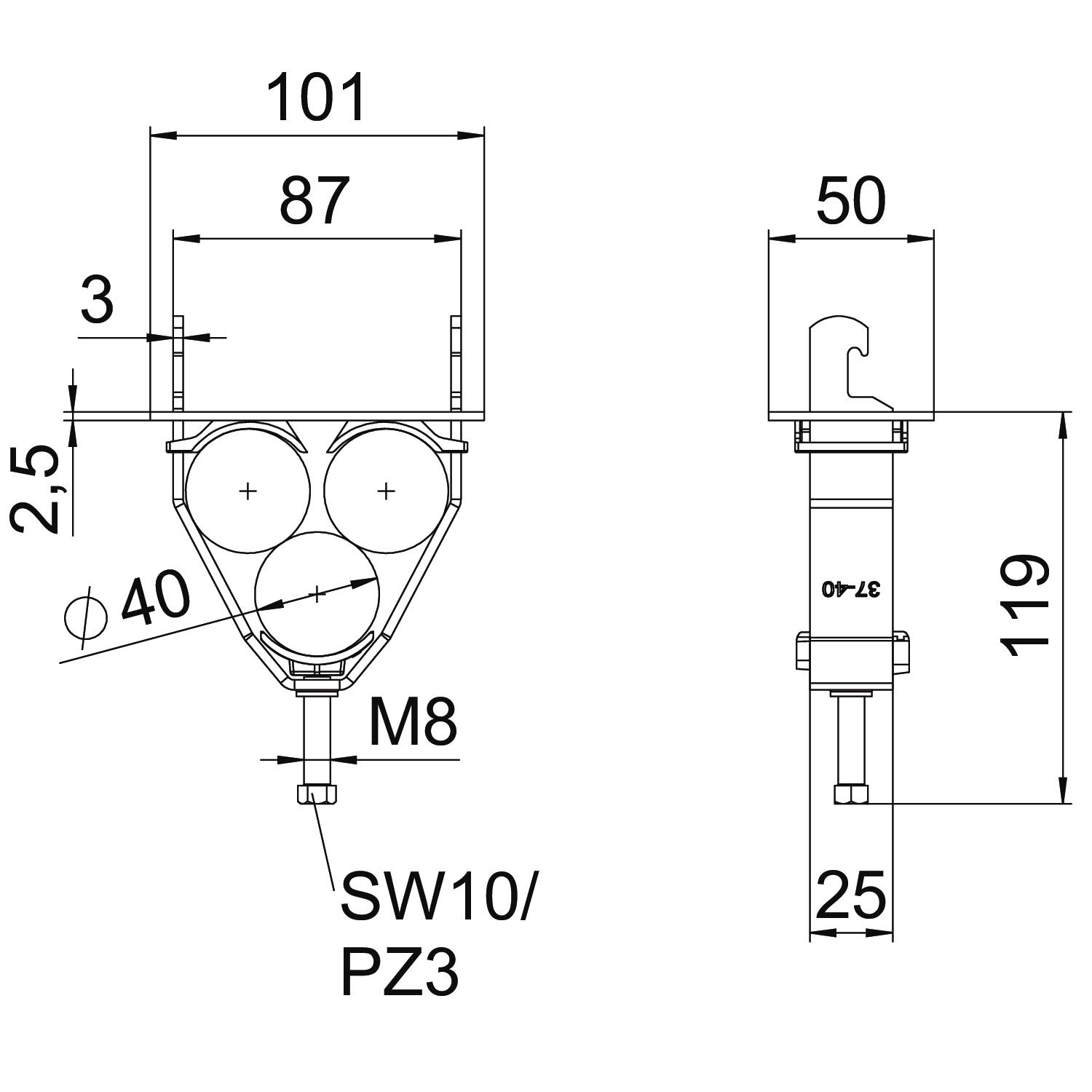

Dimension A	101 mm
Dimension B	87 mm
Dimension H	123 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Impact-resistant	no

Material	Steel
Material addition	Steel
Material of counter-trough	Plastic
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	3
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	yes
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U-E28 FT	25 mm	28 mm	5 Nm	1174509	piece	25 piece
2056U-E34 FT	31 mm	34 mm	5 Nm	1174517	piece	25 piece
2056U-E40 FT	37 mm	40 mm	5 Nm	1174525	piece	25 piece
2056U-E31 FT	28 mm	31 mm	5 Nm	1174541	piece	25 piece
2056U-E37 FT	34 mm	37 mm	5 Nm	1174568	piece	25 piece
2056U-E44 FT	40 mm	44 mm	5 Nm	1174576	piece	25 piece
