Connection terminal, double 45 | 120 | | Brass
morepic-1 morepic-2

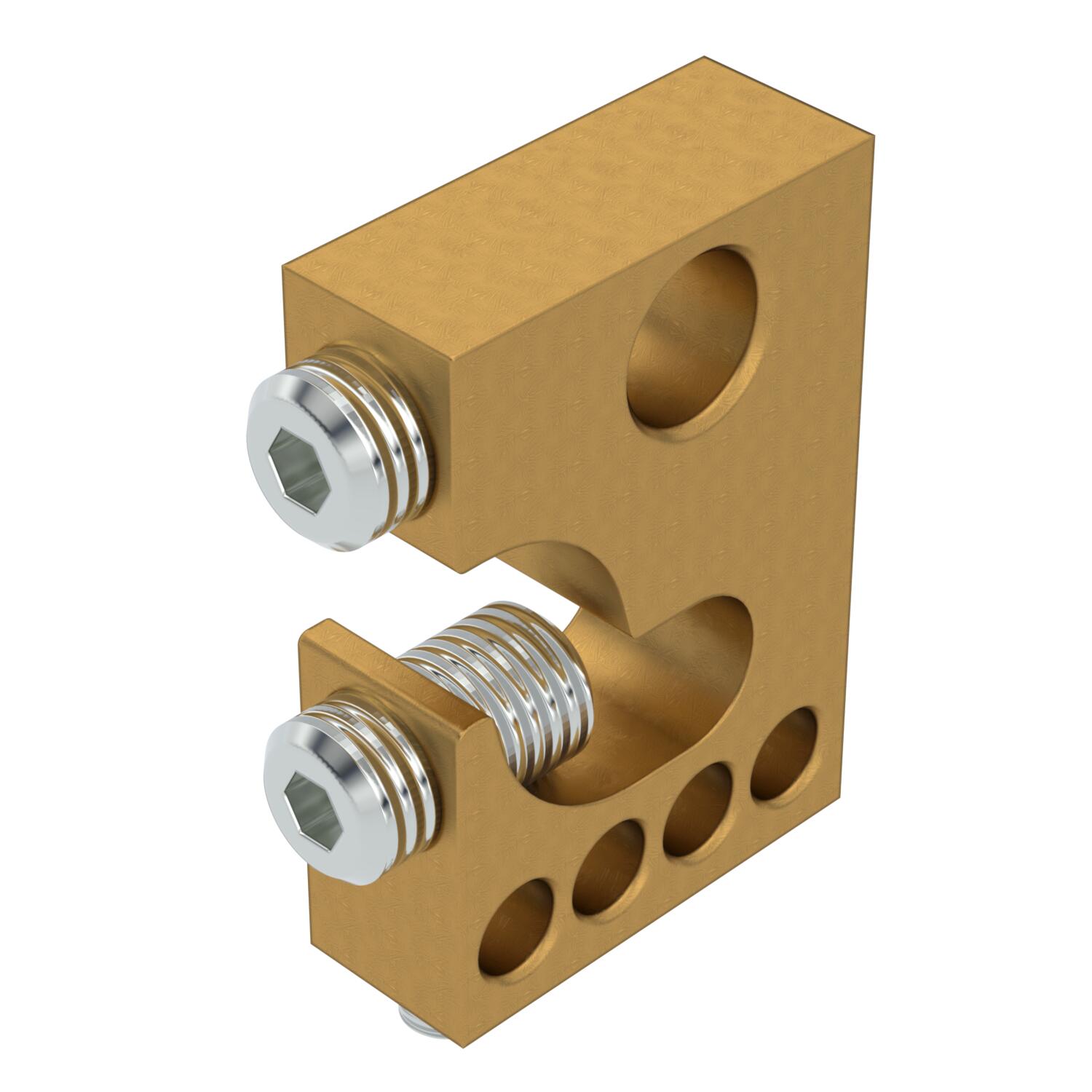

Connection terminal, double

Item no. 6049274 | EAN 4012197465070

6049274 / AKL 95 Z DM
45 mm
120 mm²
Brass
Product description
Product description
Double connection terminal to accept 2 conductor cables, to create the protective equipotential bonding for cable support systems. Suitable for direct mounting on cable support systems with M8 screw. Conductor cable up to max. 120 mm², 4 earthing cable connections with max. 35 mm² to DIN 46228 Part 4, stripping length 18 mm.
  • Communautés Européennes, EC declaration of conformity according to EC directives

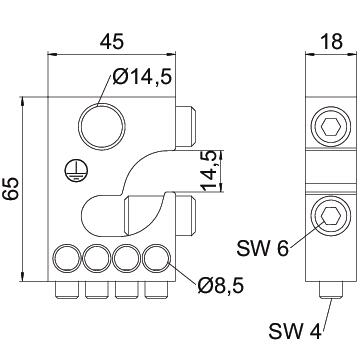

Technical data

Technical data

Colour Brass
Cross-section 120 mm²
Dimension 95mm² - 120mm²
Height 65 mm
Length 45 mm
Material Brass
Suitable for Round conductor
Width 18 mm
All types

All types

Types Length Cross-section Material Item no. Quantity SSU
AKL 95 Z DM 45 mm 120 mm² Brass 6049274
10 piece
Downloads

Download

EU declaration of conformity AKL 95 Z DM / 6049274 , 0.10MB , pdf
Download
REACH Declaration of conformity AKL 95 Z DM / 6049274 , 0.13MB , pdf
Download
RoHS Declaration of conformity AKL 95 Z DM / 6049274 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
