Connector A4
Item no. 7103592 | EAN 4012196698134
- Product description
-

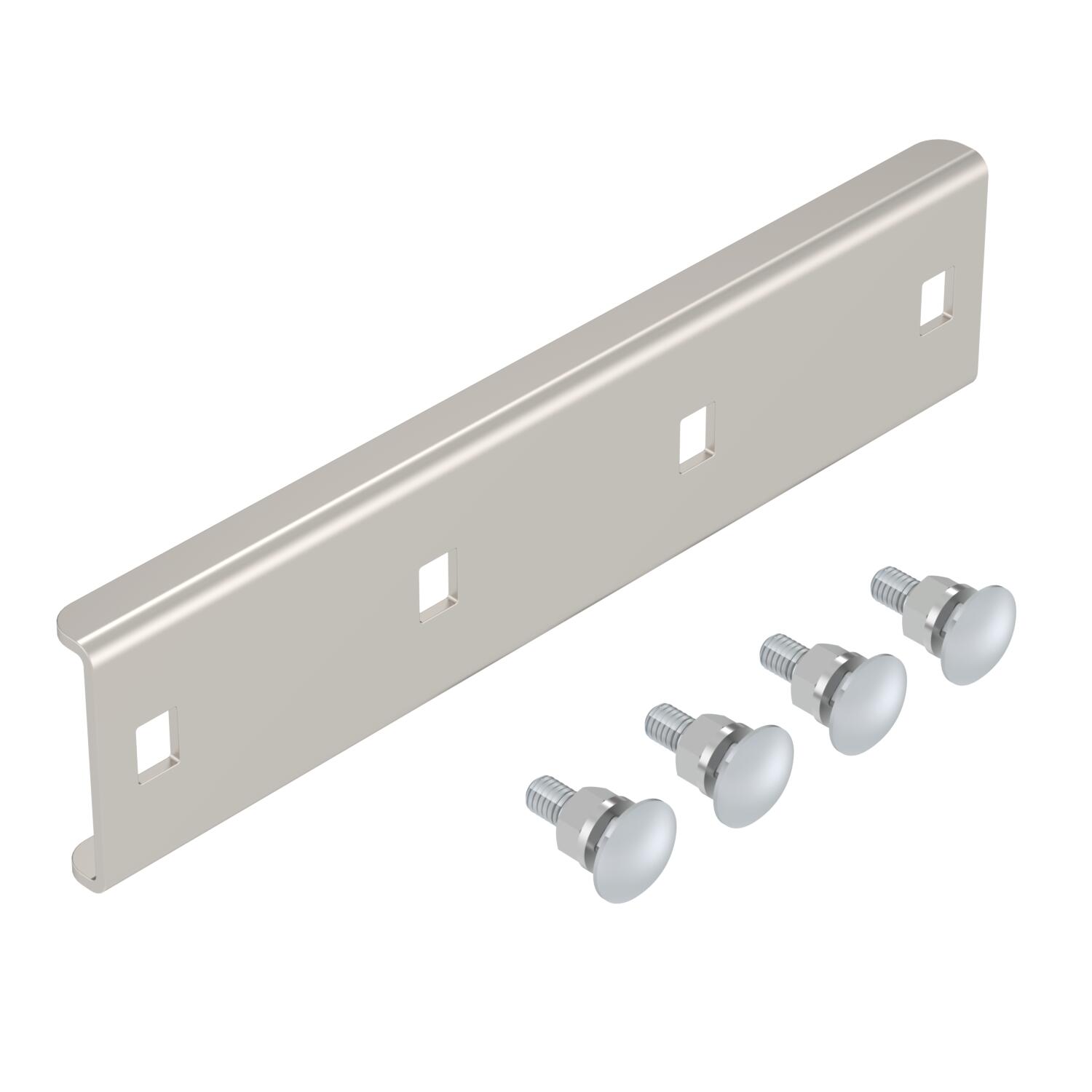

Product descriptionStraight connector to connect cable ladders and fittings with a side height of 35 mm.
The bolt fastening ensures the continuity of the equipotential bonding.
-
- Technical data
-
Technical data

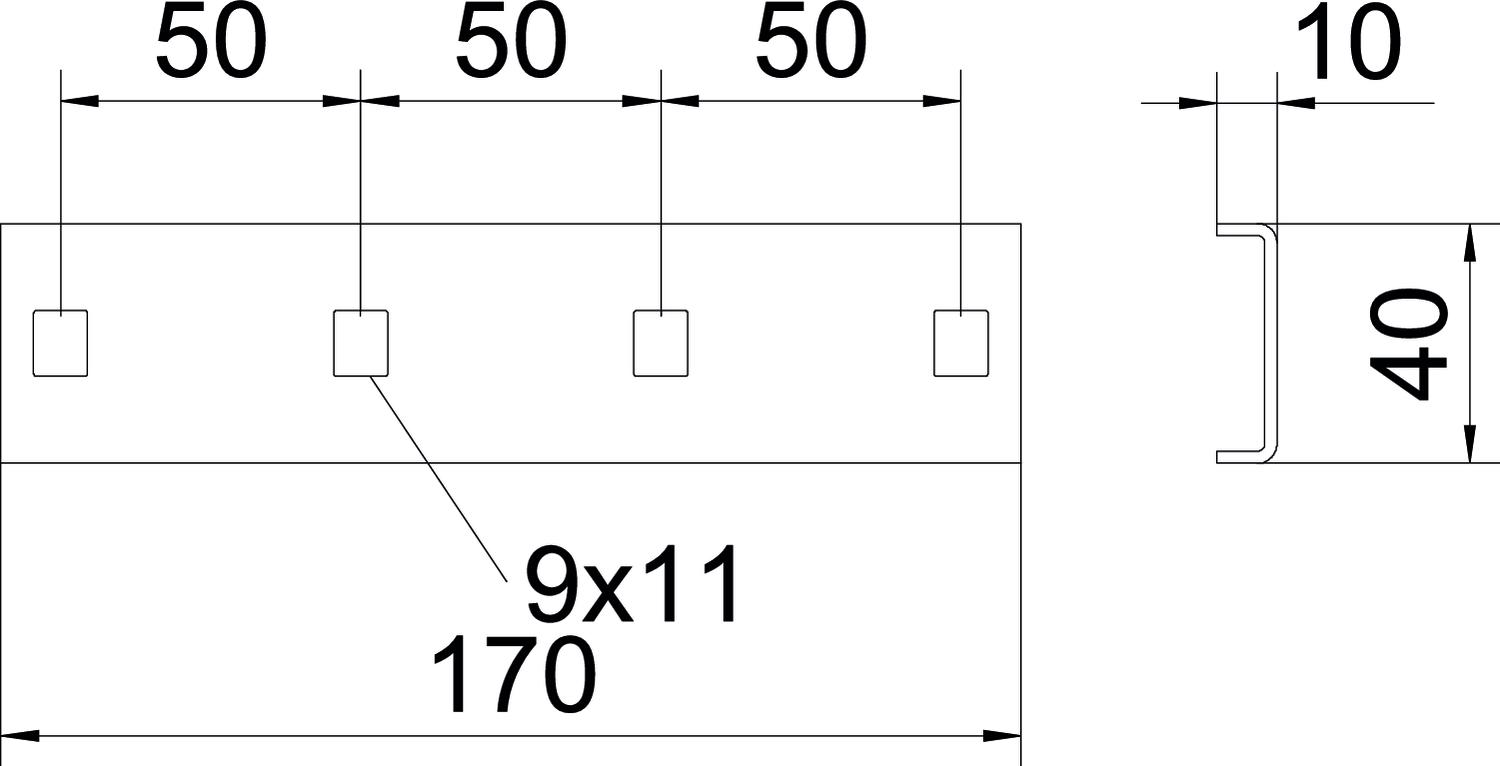

Adjustable connector, horizontal no Articulated connector, vertical no CO2 Footprint (GWP) Cradle-to-Gate 1,2258 kg CO2e / 1 Piece Colour stainless steel Connection type Screw connector Dimension 170x40 Dimension 170x52 Height 10 mm Length 170 mm Maintain electrical functions no Material Stainless steel 1.4571 Rustproof steel, pickled yes Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 35 mm Suitable for mesh cable tray no Version for Straight connector Wide-span version no Width 40 mm - All types
- Downloads
-
Data sheet SLV 52 A4 / 7103592 , 0.15MB , pdfEU declaration of conformity SLV 52 A4 / 7103592 , 0.10MB , pdfREACH Declaration of conformity SLV 52 A4 / 7103592 , 0.12MB , pdfRoHS Declaration of conformity SLV 52 A4 / 7103592 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
