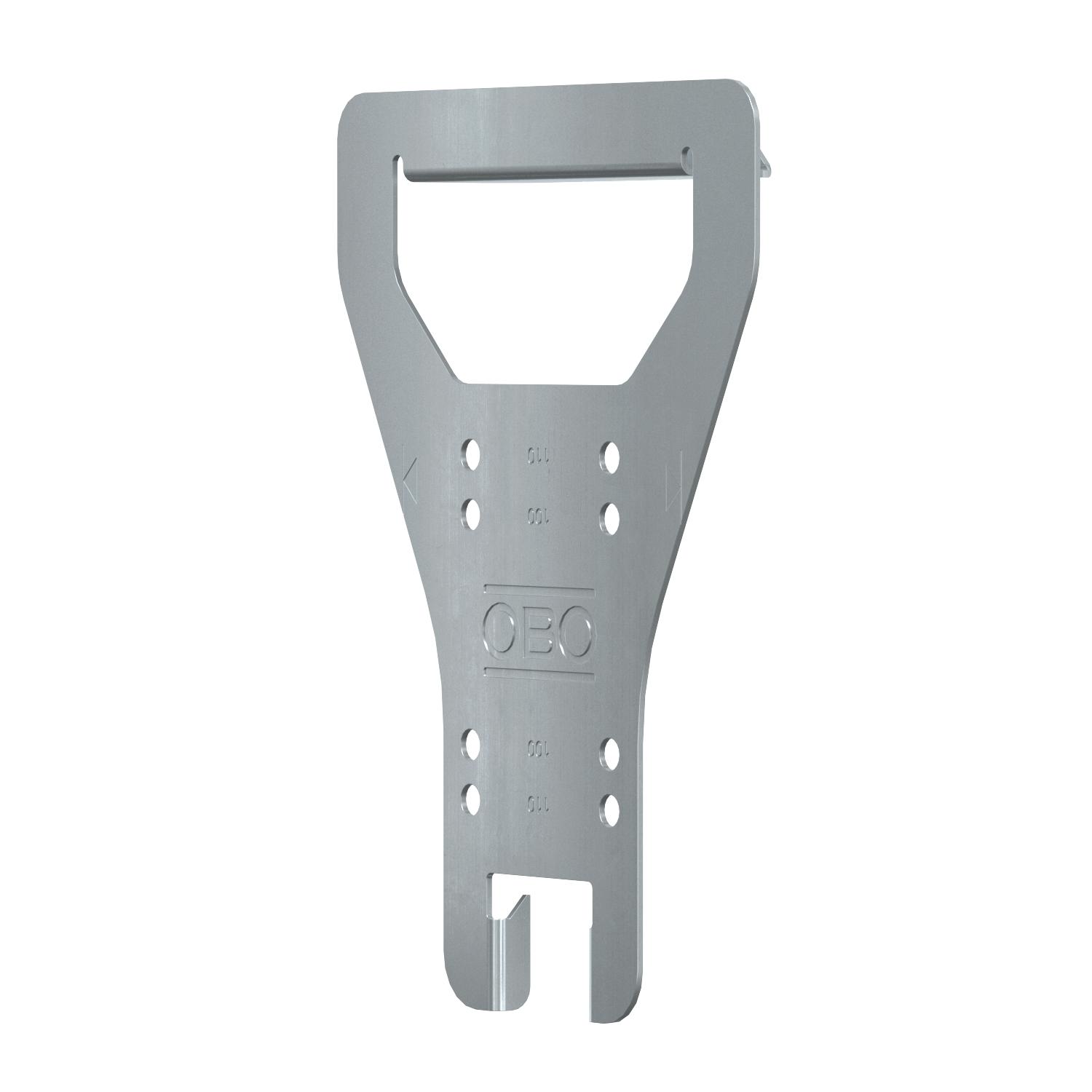

Cover lifter for chequer plate cover
Item no. 6049285 | EAN 4012196672271
- Product description
-
Product description
Using the cover lifter, chequer plate covers installed with cover clamps can be dismantled quickly and simply.
Alternatively, the cover lifter can be used as a template for the connector perforation with cable trays cut during construction. For this, turn the cover lifter through 180° and position on the cable tray. Then use the perforation template appropriate to the side height.
-
- Technical data
-
Technical data

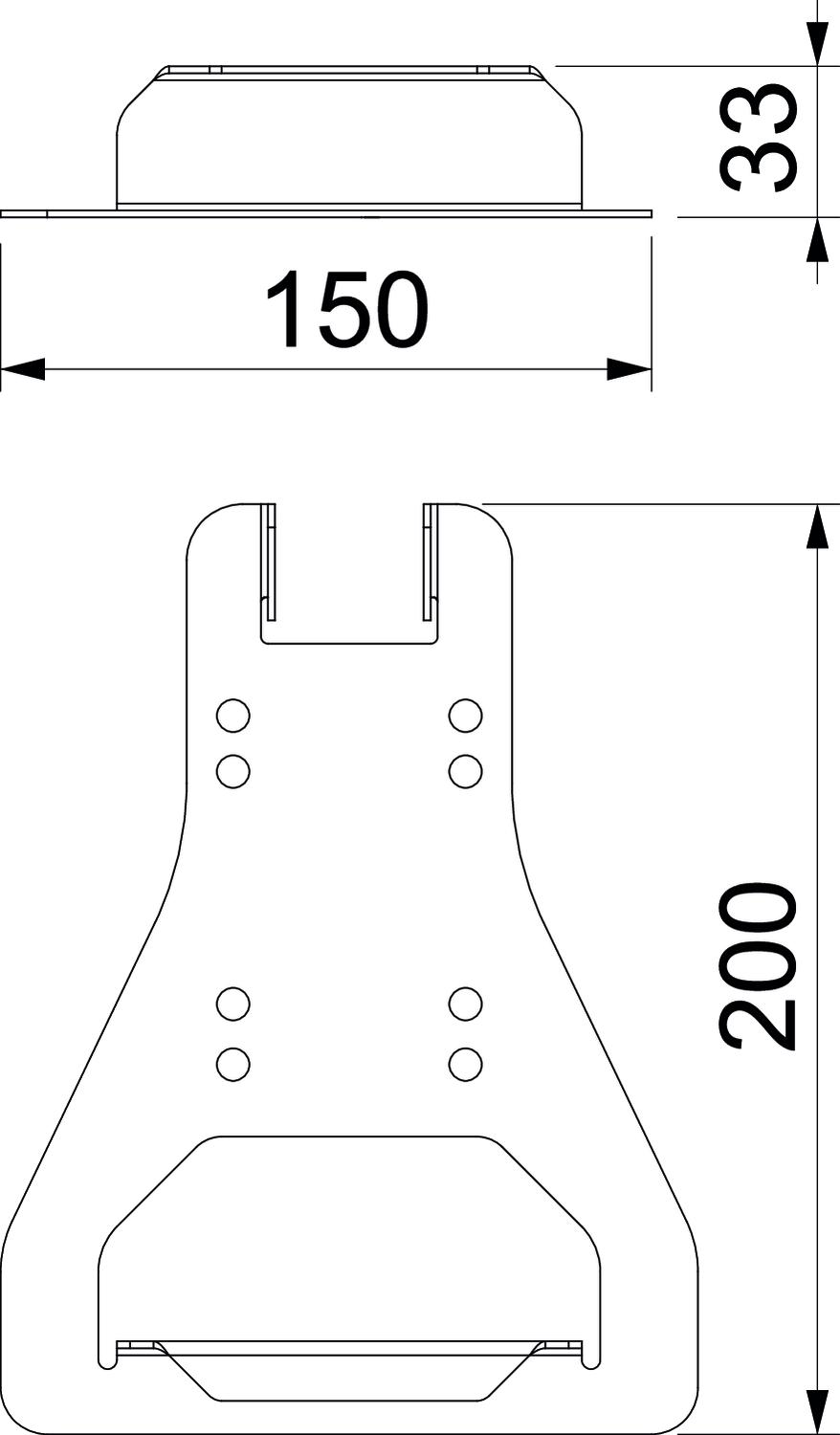

Dimension 150x200x33 Halogen-free no Impact-resistant no Material Steel Rustproof steel no Surface Strip galvanized Symmetrical yes With hand protection yes Dimensions
Height 33 mm Length 200 mm Width 150 mm - All types
- Downloads
-
Data sheet DH DBKR FS / 6049285 , 0.35MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity DH DBKR FS / 6049285 , 0.15MB , pdfUK Declaration of Conformity DH DBKR FS / 6049285 , 0.14MB , pdfREACH Declaration of conformity DH DBKR FS / 6049285 , 0.12MB , pdfRoHS Declaration of conformity DH DBKR FS / 6049285 , 0.12MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Porsche AG , 0.06MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for VW AG , 0.05MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Mercedes Benz , 4.15MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for Audi AG , 0.05MB , pdfMounting instructions Mounting instructions, BKRS walkable cable tray systems for BMW AG , 4.54MB , pdfMounting instructions BKRS Begehbare Kabelrinnensysteme , 5.36MB , pdf
