Cover support for walkable cable trays
Item no. 6049244 | EAN 4012197362935
- Product description
-

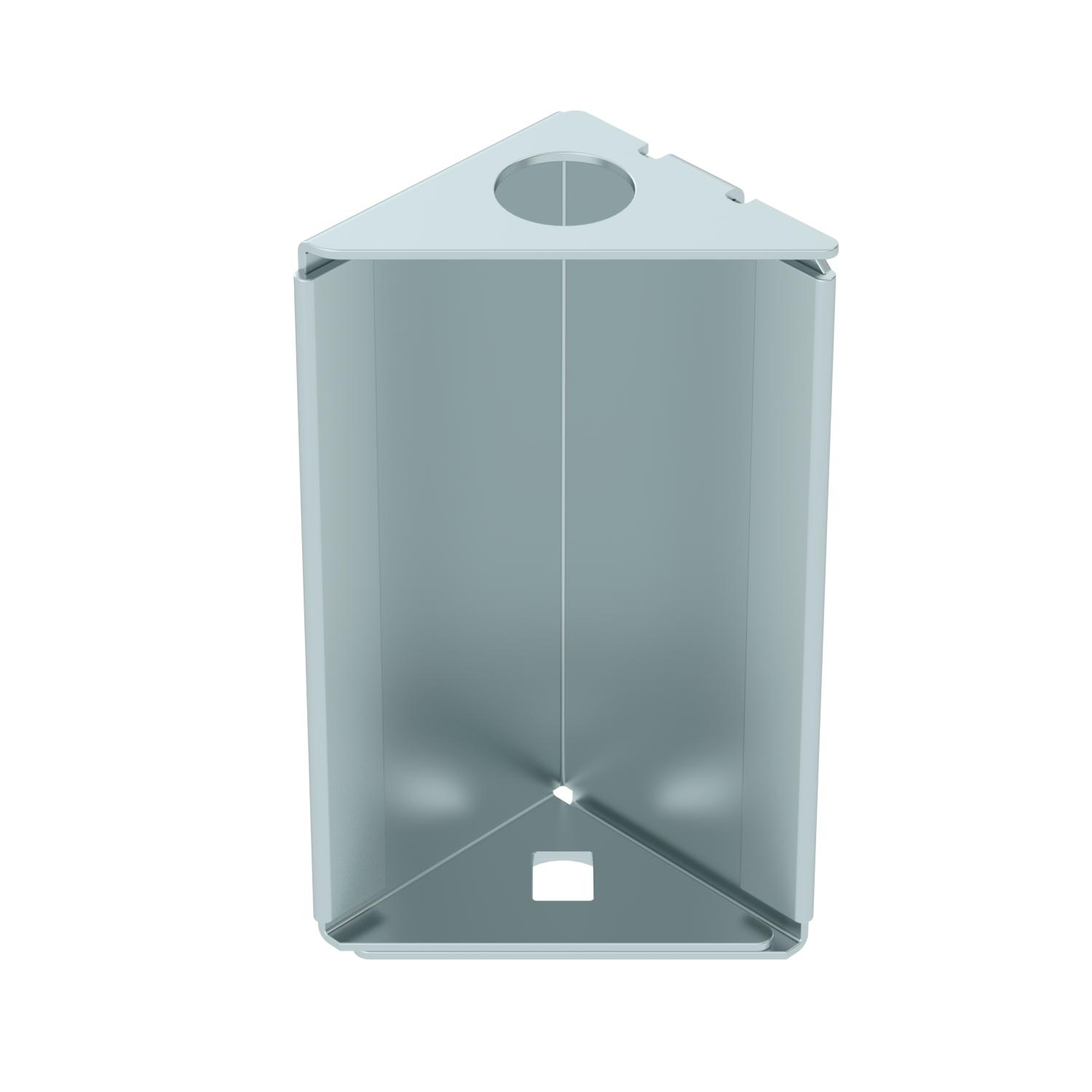

Product descriptionCover support for the walkable BKRS cable tray system, as an additional support for covers. With rounded edges to protect the cables during routing.
-
- Technical data
-
Technical data

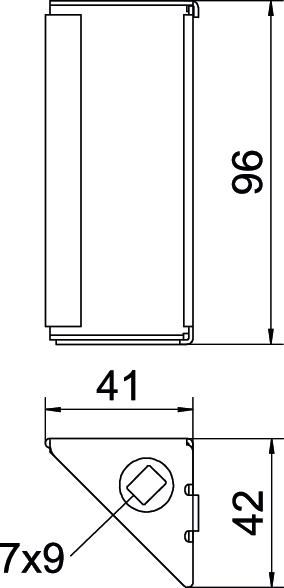

CO2 Footprint (GWP) Cradle-to-Gate 0,3996 kg CO2e / 1 Piece Colour zinc Dimension 96x43x42 Dimension L 96 mm Height 100 mm Hole diameter 15 mm Length 41 mm Maintain electrical functions no Material Steel Material thickness 1,25 mm Profile shape Miscellaneous Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Suitable for profile shapes Miscellaneous Surface Strip galvanized Width 42 mm With screw accessories no - All types
