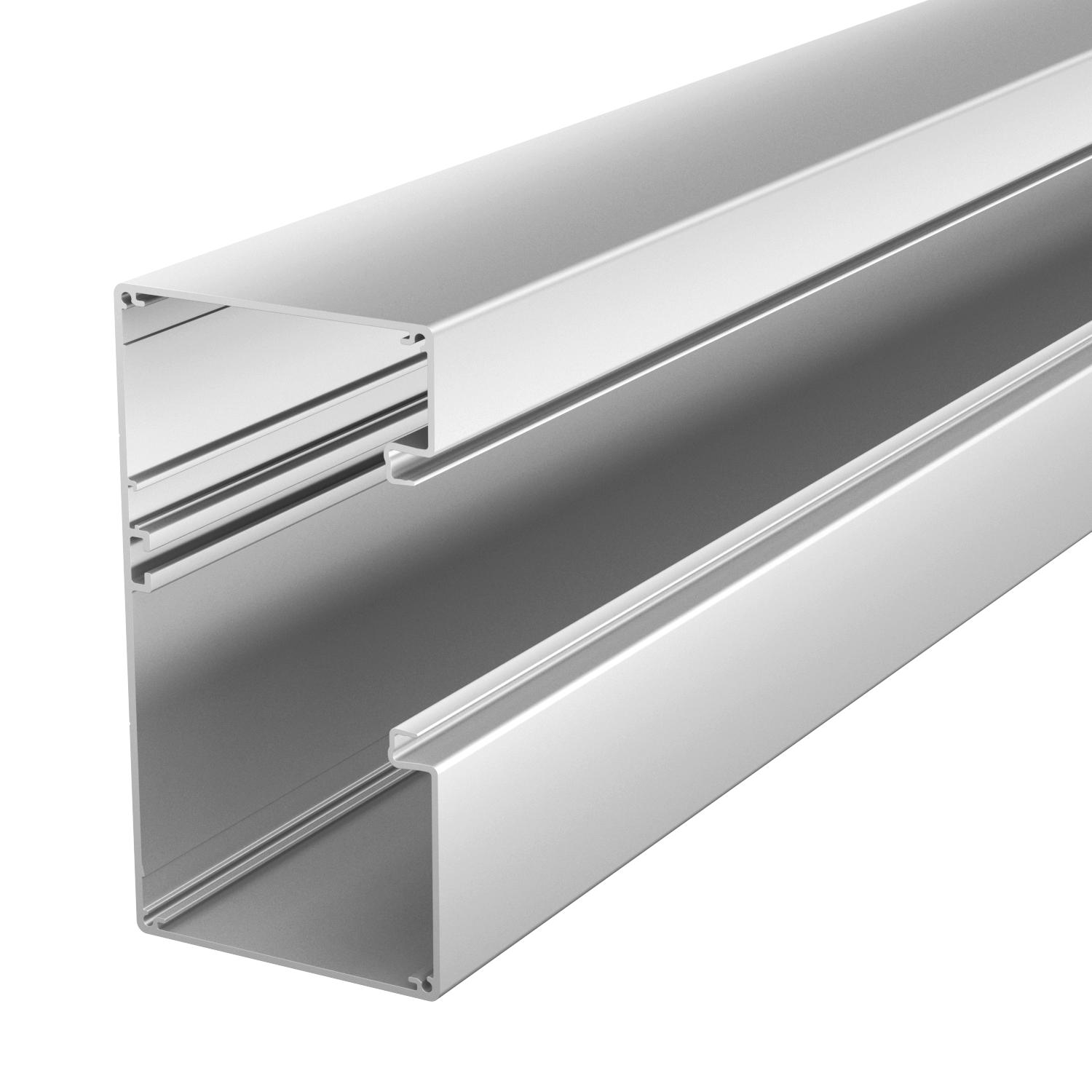

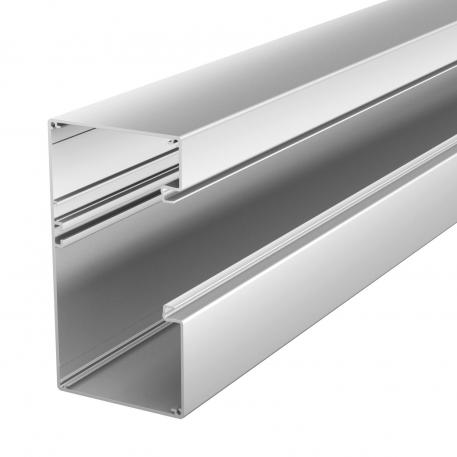

Device installation trunking Rapid 80, trunking width 170, trunking height 90, asymmetrical 2000

Device installation trunking Rapid 80, trunking width 170, trunking height 90, asymmetrical

Item no. 6279503 | EAN 4012195769071

Item no. / Types

Length	2000 mm

Product description

Product description

Device installation trunking Without base perforation for direct wall mounting or mounting on panels. Over-lengths up to 6,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by tolerance based on the material and process conditions, cannot be avoided (according to DIN 17 611). Alternatively, we recommend powder coating in the colour RAL 9006 (white aluminium).

The cover must be ordered separately. We recommend the use of the duct clamp.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	Without base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	36,5408 kg CO2e / 1 Meter
Colour	aluminium
Cover mounting type	Internal
Cover supplied	no
Cover width	76,5 mm

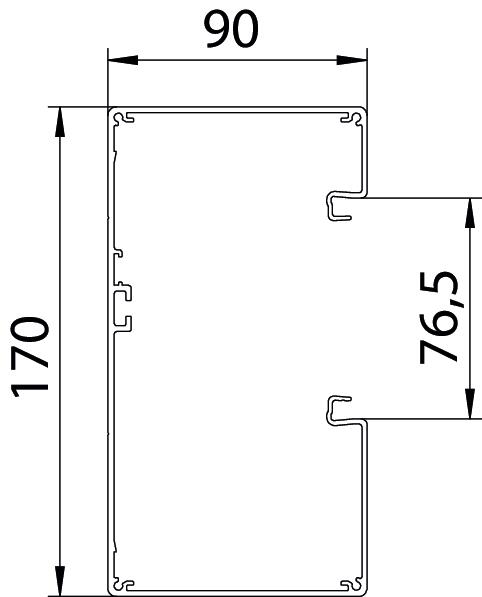

Dimension	90x170x2000
Duct connector	no
Halogen-free	yes
Height	90 mm
Length	2000 mm
Material	Aluminium

Mounting perforation in base	no
Number of covers	1
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	yes
Rear panel version (inner side)	Continuous C profile
Rectangular shape	yes
Surface	Anodised
Symmetrical	no
Usable cross-section	11756 mm²
Width	170 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
GA-A90170RW	2000 mm	6279500	m	2 m
GA-A90170EL	2000 mm	6279503	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Coupling GA-KUP90	GA-KUP90	6279704	PU	1 PU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
7ZE strain relief	7ZE	6288790	piece	50 piece
Aluminium trunking cover	GA-OTEL	6279723	m	2 m
Trunking cover, aluminium, 100 mm	GA-OTEL 100	6279733	piece	1 piece
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece

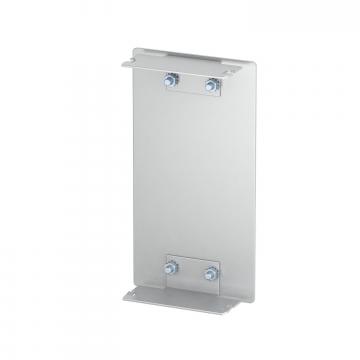

End piece, for device installation trunking Rapid 80 type GA-A90170	GA-E90170EL	6279573	piece	1 piece
Partition GA-TW90	GA-TW90	6279714	m	2 m

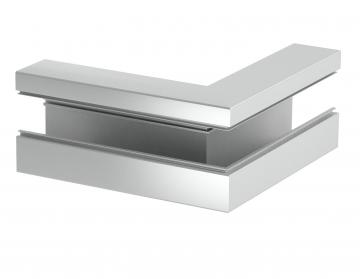

External corner, asymmetrical, for device installation trunking Rapid 80 type GA-A90170	GA-AA90170EL	6279513	piece	1 piece
Aluminium external corner cover	GA-OTAEL	6279727	piece	1 piece

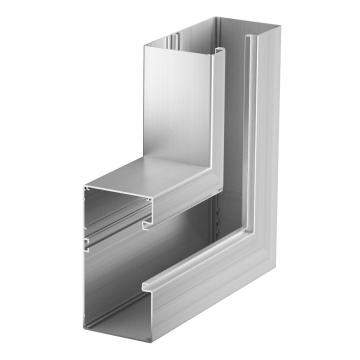

Flat angle, asymmetrical, rising, for device installation trunking Rapid 80 type GA-A90170	GA-AFS90170EL	6279523	piece	1 piece

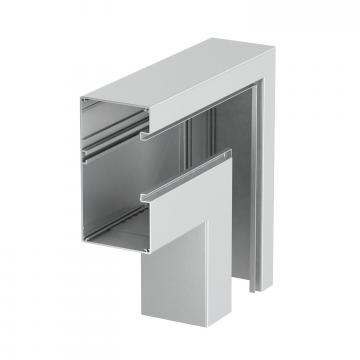

Flat angle, asymmetrical, falling, for device installation trunking Rapid 80 type GA-90170	GA-AFF90170EL	6279533	piece	1 piece
Aluminium flat angle cover	GA-OTFEL	6279736	piece	1 piece

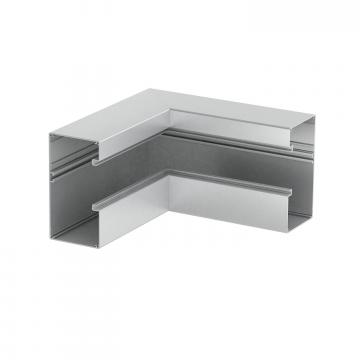

Internal corner, asymmetrical, for device installation trunking Rapid 80 type GA-A90170	GA-AI90170EL	6279543	piece	1 piece

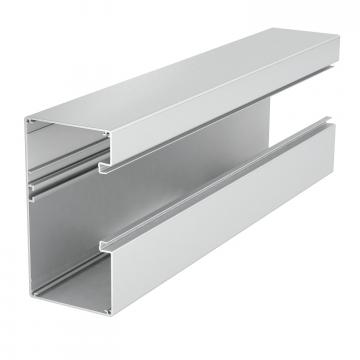

T piece, asymmetrical, for device installation trunking Rapid 80 type GA-A90170	GA-AT90170EL	6279563	piece	1 piece
Duct clamp KL80A	KL80A	6288640	piece	20 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
AR45 socket unit, double	SDE-RW D0RW2	6119407	piece	1 piece
