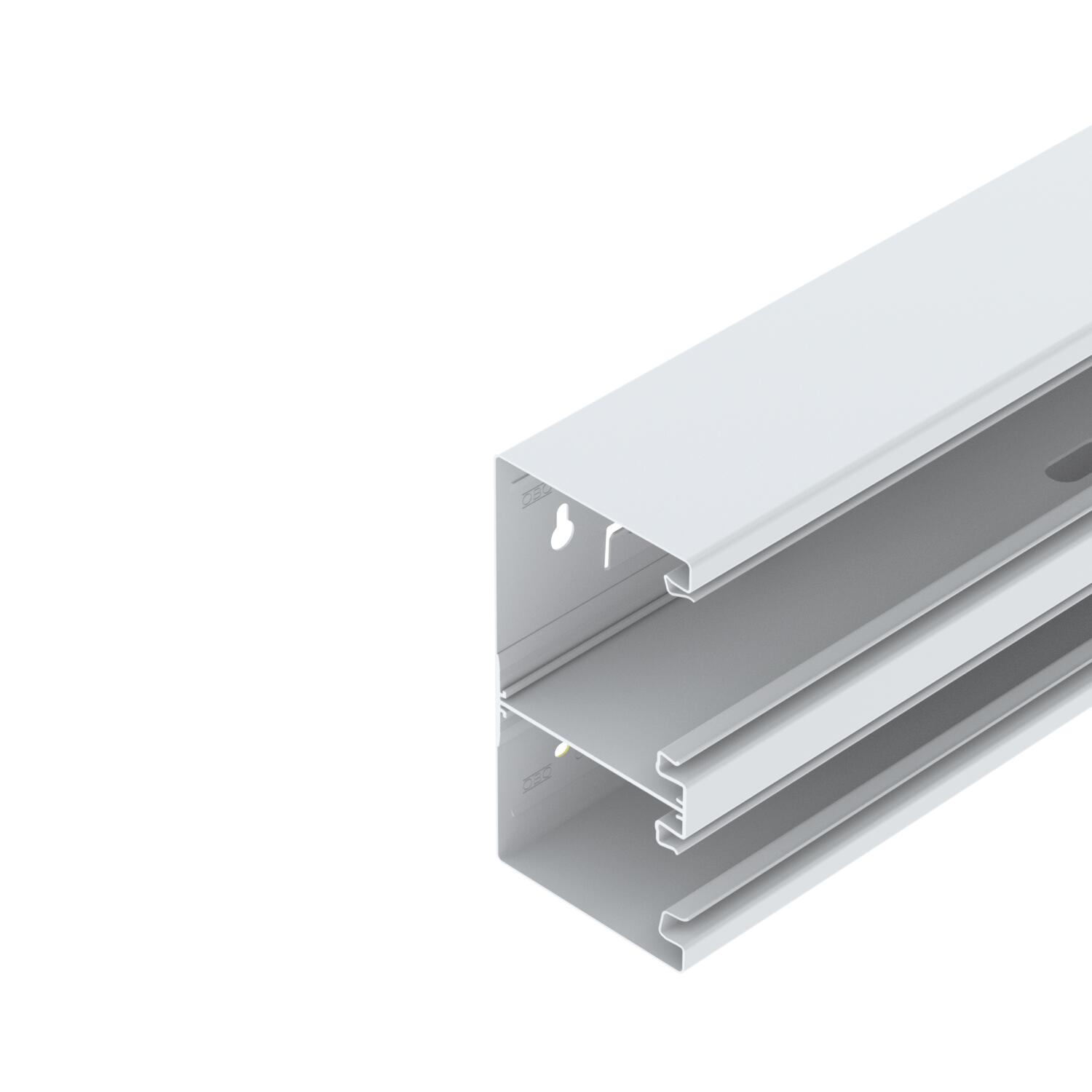

Device installation trunking Rapid 80, trunking width 170, trunking height 90, asymmetrical, double 2000

Device installation trunking Rapid 80, trunking width 170, trunking height 90, asymmetrical, double

Item no. 6278300 | EAN 4012195665137

Item no. / Types	6278300 / GS-D90170RW

Length	2000 mm

Product description

Product description

GS device installation trunking for mounting on the wall or on fastening panels. The GS device installation trunking possesses self-contacting locking straps to accept a sheet steel partition. The equipotential bonding between the trunking bases takes place using the trunking coupling. The protective measure and the equipotential bonding is guaranteed between the cover and the base by the self-contacting trunking cover. The real system opening for device installation is 76.5 mm. The second trunking track with a system opening of 45 mm is used for cable routing. Installation of Modul 45 switching and connection devices is not possible here. The cover must be ordered separately.

Overlengths up to 3,000 mm for trunking bases and covers as well as other RAL colours can be provided on request. The visible surfaces of the painted device installation trunking are laminated.

Technical data

Technical data

Antibacterial treatment	no
Base perforation	with base perforation
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	21,2263 kg CO2e / 1 Meter
Colour	Pure white; RAL 9010
Cover mounting type	Internal
Cover supplied	no
Cover width	76,5 mm
Cover width 2	45 mm

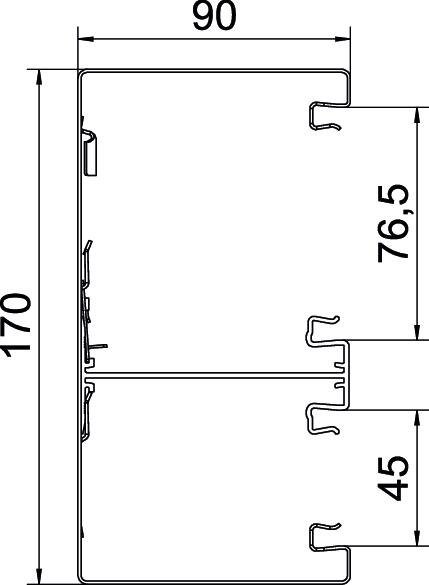

Dimension	90x170x2000
Duct connector	no
Halogen-free	yes
Height	90 mm
Length	2000 mm

Material	Steel
Mounting perforation in base	yes
Number of covers	2
Number of insertable partitions	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-25 °C
Protection rating	IP30
Protection rating IK code	IK10
Protective film	yes
Rear panel version (inner side)	With locking lugs
Rectangular shape	yes
Symmetrical	no
Usable cross-section	12355 mm²
Width	170 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
GS-D90170RW	2000 mm	6278300	m	2 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Coupling GS-KUP90	GS-KUP90	6277294	PU	1 PU
Accessory mounting box 71GD6, single	71GD6	6288610	piece	5 piece
Accessory mounting box 71GD7-2, double	71GD7-2	6288608	piece	2 piece
7ZE strain relief	7ZE	6288790	piece	50 piece
Trunking cover, sheet steel	GS-OTRW	6279850	m	2 m

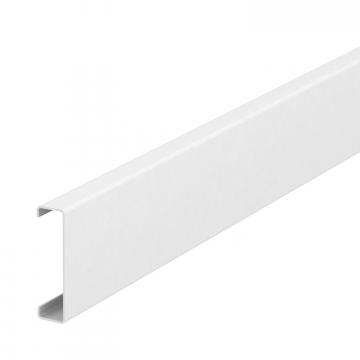

Sheet steel trunking cover, 50 mm system opening	GS-OT50RW	6279880	m	2 m
Locking bracket RKV3V	RKV3V	6288700	piece	20 piece

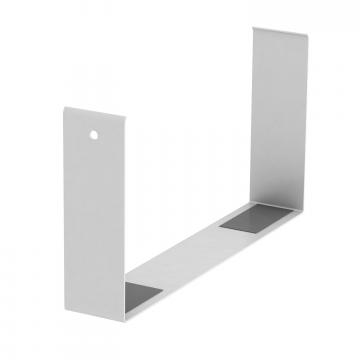

Joint cover, trunking height 90 mm	G-SVS90170RW	6279784	piece	1 piece

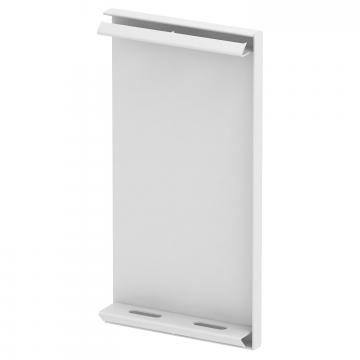

End piece, for device installation trunking Rapid 80 type GS-90170	GS-E90170RW	6277770	piece	1 piece
Partition GS-TW90	GS-TW90	6277095	m	2 m

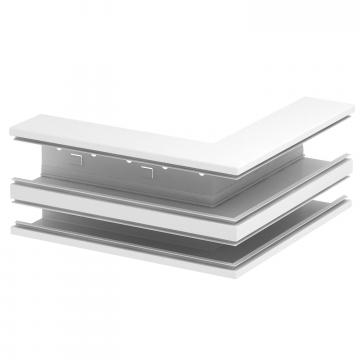

External corner, asymmetrical, double, for device installation trunking Rapid 80 type GS-D90170	GS-DA90170RW	6278310	piece	1 piece
Sheet steel external corner cover	GS-OTARW	6279870	piece	1 piece

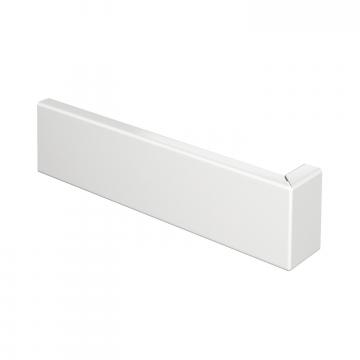

Sheet steel external corner cover, 50 mm system opening	GS-OT50ARW	6279890	piece	1 piece

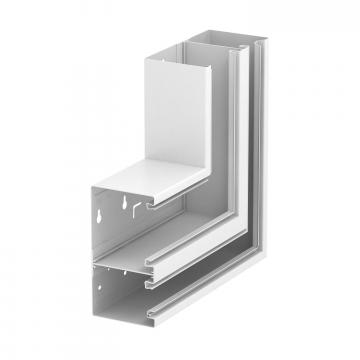

Flat angle, asymmetrical, rising, double, for device installation trunking Rapid 80 type GS-D90170	GS-DFS90170RW	6278320	piece	1 piece

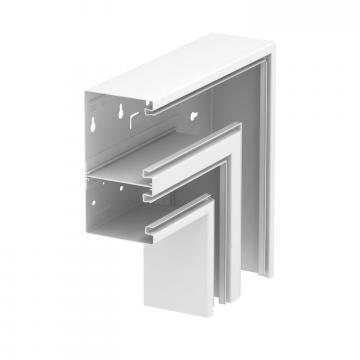

Flat angle, asymmetrical, falling, double, for device installation trunking Rapid 80 type GS-D90170	GS-DFF90170RW	6278330	piece	1 piece
Sheet steel flat angle cover	GS-OTFRW	6279860	piece	1 piece

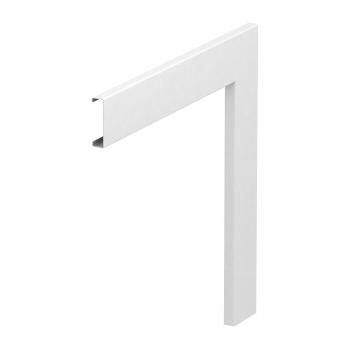

Sheet steel flat angle cover, 50 mm system opening	GS-OT50FRW	6279990	piece	1 piece

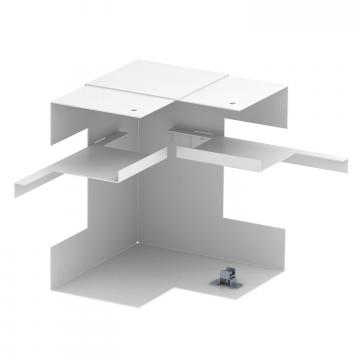

Internal corner, asymmetrical, double, for Rapid 80 device installation trunking, type GS-D90170	GS-DI90170RW	6278340	piece	1 piece
T piece, asymmetrical, double, for device installation trunking Rapid 80 type GS-D90170	GS-DT90170RW	6278360	piece	1 piece
Duct clamp KL80A	KL80A	6288640	piece	20 piece
Protective conductor connection bracket	8AWR	6288704	piece	10 piece
AR45 socket unit, double	SDE-RW D0RW2	6119407	piece	1 piece

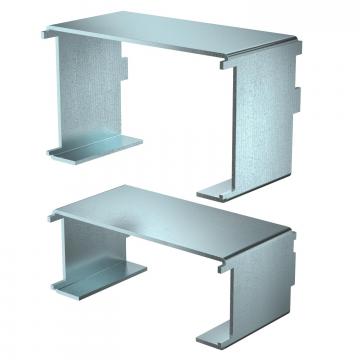

Calyx	SK GS-D90170	6288743	piece	1 piece
