Drilling template, BKRS floor support
Item no. 6044609 | EAN 4012197389338
- Product description
-

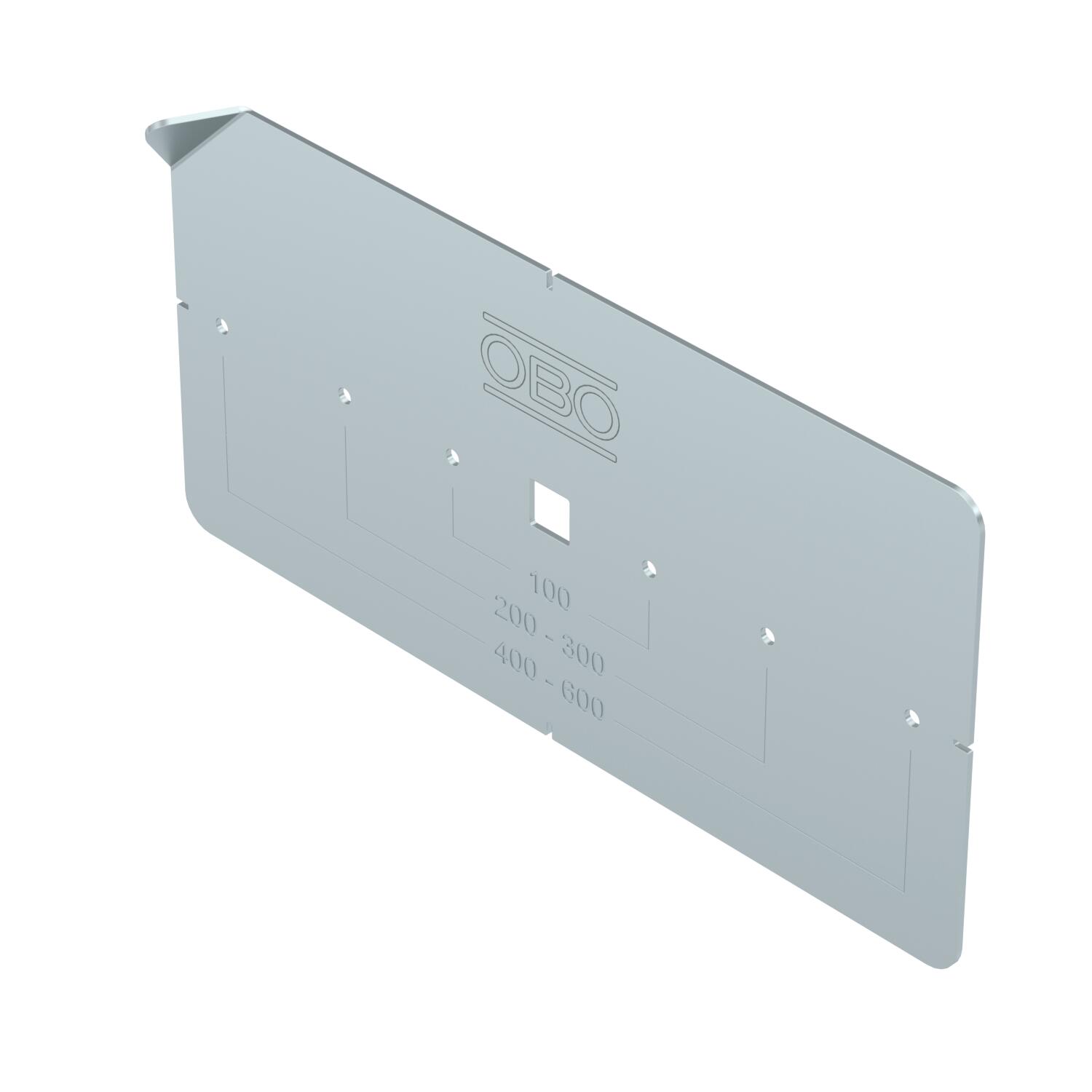

Product descriptionSteel drilling template for the alignment and drilling of fastening holes for symmetrical floor supports of the BKRS walkable cable tray system. Suitable for support bases of type BSSU 190 1010/2030/4060.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 3,0291 kg CO2e / 1 Piece Colour zinc Dimension 297x150x18 Height 18 mm Length 297 mm Material Steel Material thickness 2 mm Surface Strip galvanized Width 150 mm - All types
- Downloads
-
Data sheet BSS BS / 6044609 , 0.18MB , pdfCatalogue Cable support systems , 54.52MB , pdfEU declaration of conformity BSS BS / 6044609 , 0.10MB , pdfREACH Declaration of conformity BSS BS / 6044609 , 0.12MB , pdfRoHS Declaration of conformity BSS BS / 6044609 , 0.13MB , pdf
