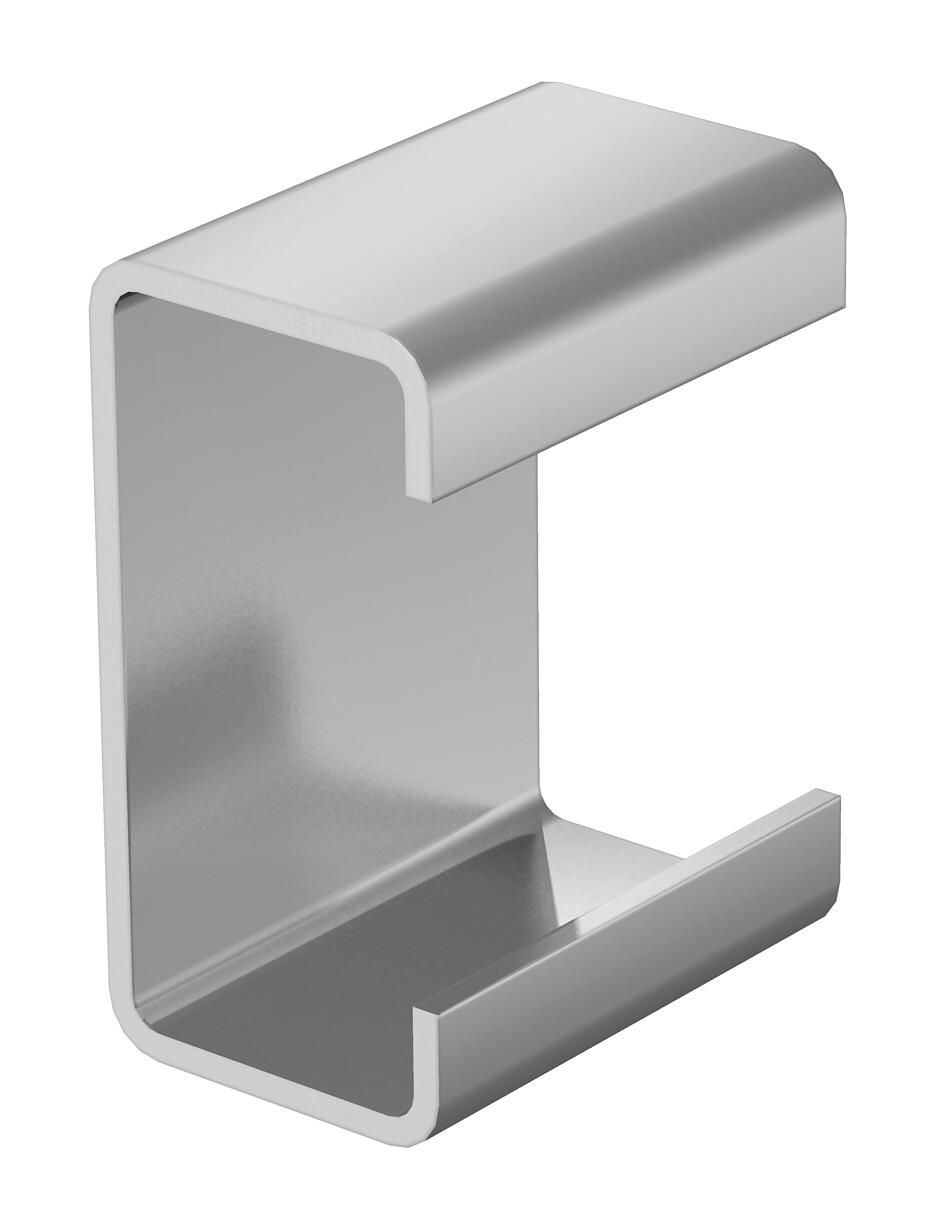

DSK 61 A4 spacer
Item no. 6416533 | EAN 4012195403173
- Product description
-
Product descriptionSpacer for use in US 7 supports.
For static reasons, the spacer is always used to prevent the support from deforming when the hexagonal bolts are used to fasten the bracket or head plate.
-
- Technical data
-
Technical data
CO2 Footprint (GWP) Cradle-to-Gate 1,1847 kg CO2e / 1 Piece Colour stainless steel Dimension 80 x 61 x 40 x 2,5 Dimension 80x61x40 Height 40 mm Length 80 mm Material Stainless steel 1.4571 Suitable for profile shapes U profile Surface Bright, treated Width 61 mm With screw accessories no - All types
- Downloads
-
Data sheet DSK 61 A4 / 6416533 , 0.18MB , pdfEU declaration of conformity DSK 61 A4 / 6416533 , 0.10MB , pdfUK Declaration of Conformity DSK 61 A4 / 6416533 , 0.09MB , pdfREACH Declaration of conformity DSK 61 A4 / 6416533 , 0.12MB , pdfRoHS Declaration of conformity DSK 61 A4 / 6416533 , 0.13MB , pdfMounting instructions Mounting instructions, U support systems , 2.02MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
