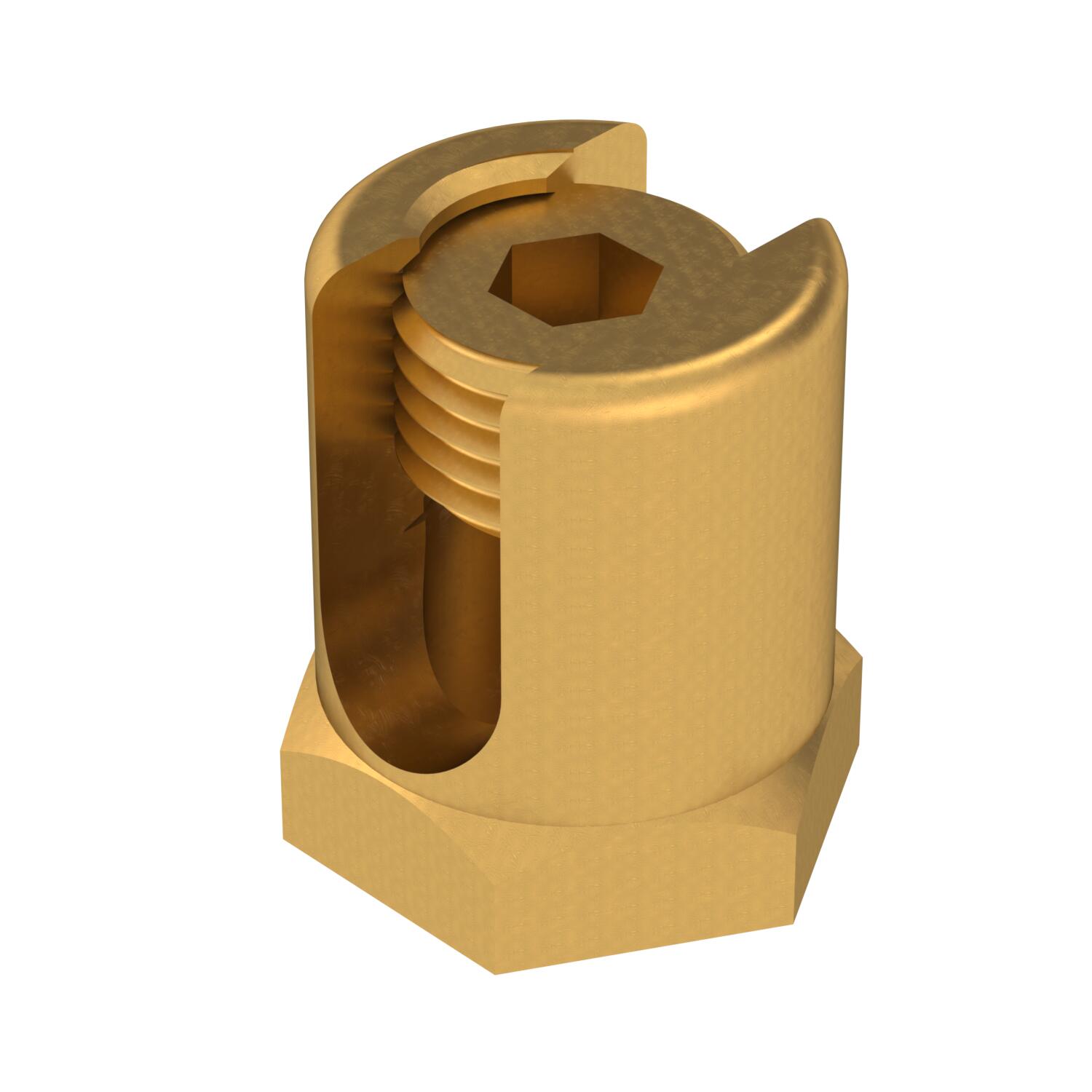

Earthing terminal with fastening thread

Item no. 6404016 | EAN 4012196708529

6404016 / EKL 35 M6 ISK
26 mm
75 mm²
Product description

Product description

Earthing terminal for fastening the equipotential bonding conductor to the cable support system. M14 threaded pin, Allen drive with 6 mm across flats.

Suitable for conductor cross sections of 25–75 mm².
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cross-section 75 mm²
Dimension 25-75mm²
Maintain electrical functions no
Material Brass
Rustproof steel, pickled no
Suitable for cable ladder yes
Suitable for cable tray yes
Suitable for mesh cable tray no
Thread M6
WAF 21
With screw accessories no

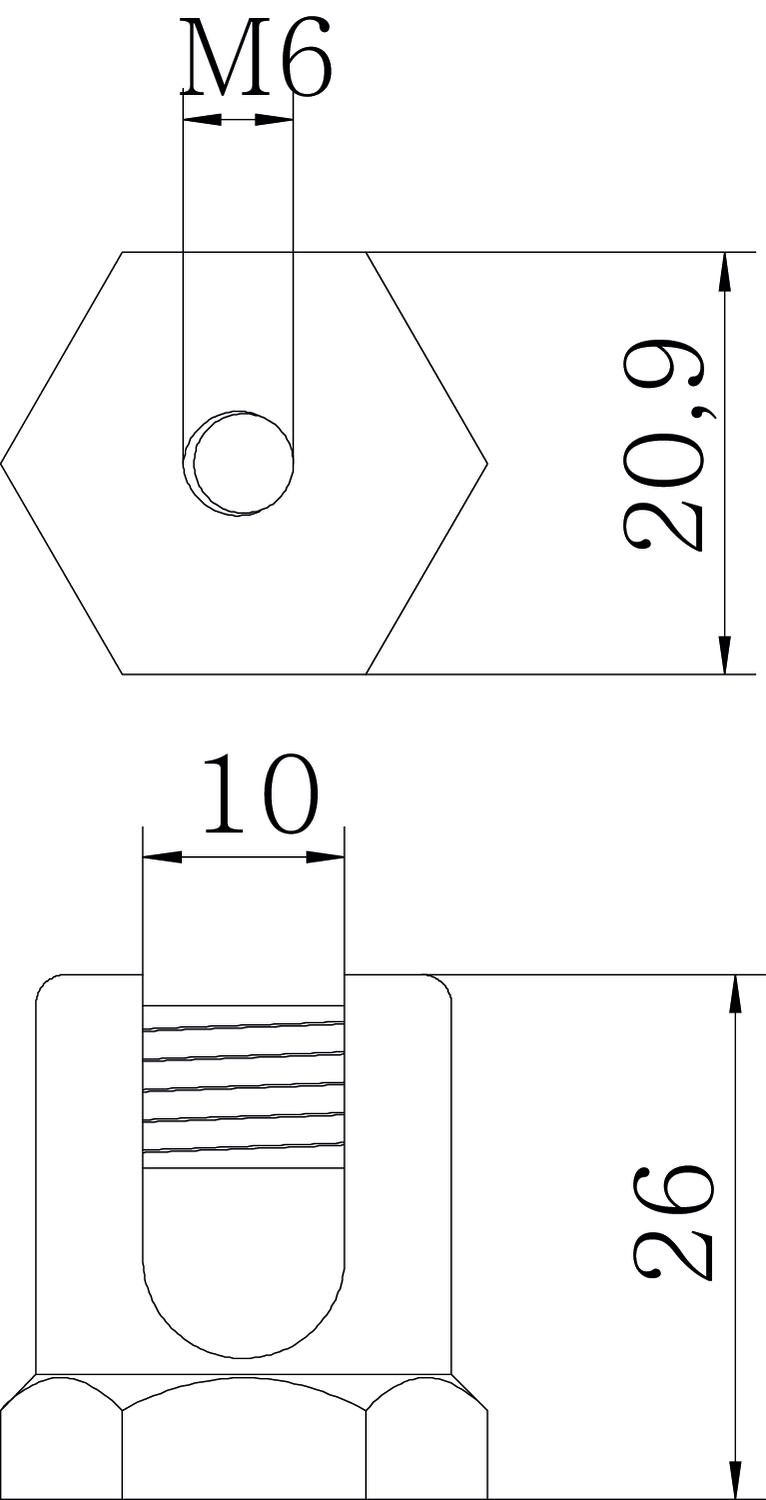

Dimensions

Dimension L 26 mm
Dimension l 10 mm
Height 26 mm
Width 21 mm
All types

All types

Types Dimension L Cross-section Item no. Quantity SSU
EKL 35 M6 ISK 26 mm 75 mm² 6404016
50 piece
