End piece, for device installation trunking Rapid 45-2 type GK-53130 | | | | Pure white; RAL 9010
morepic-1 morepic-2

End piece, for device installation trunking Rapid 45-2 type GK-53130

Item no. 6113280 | EAN 4012196419647

Product description
Product description
End piece for side closing of the Rapid 45-2 GK and GA 53130 device installation trunking.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,226 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cut lamination yes

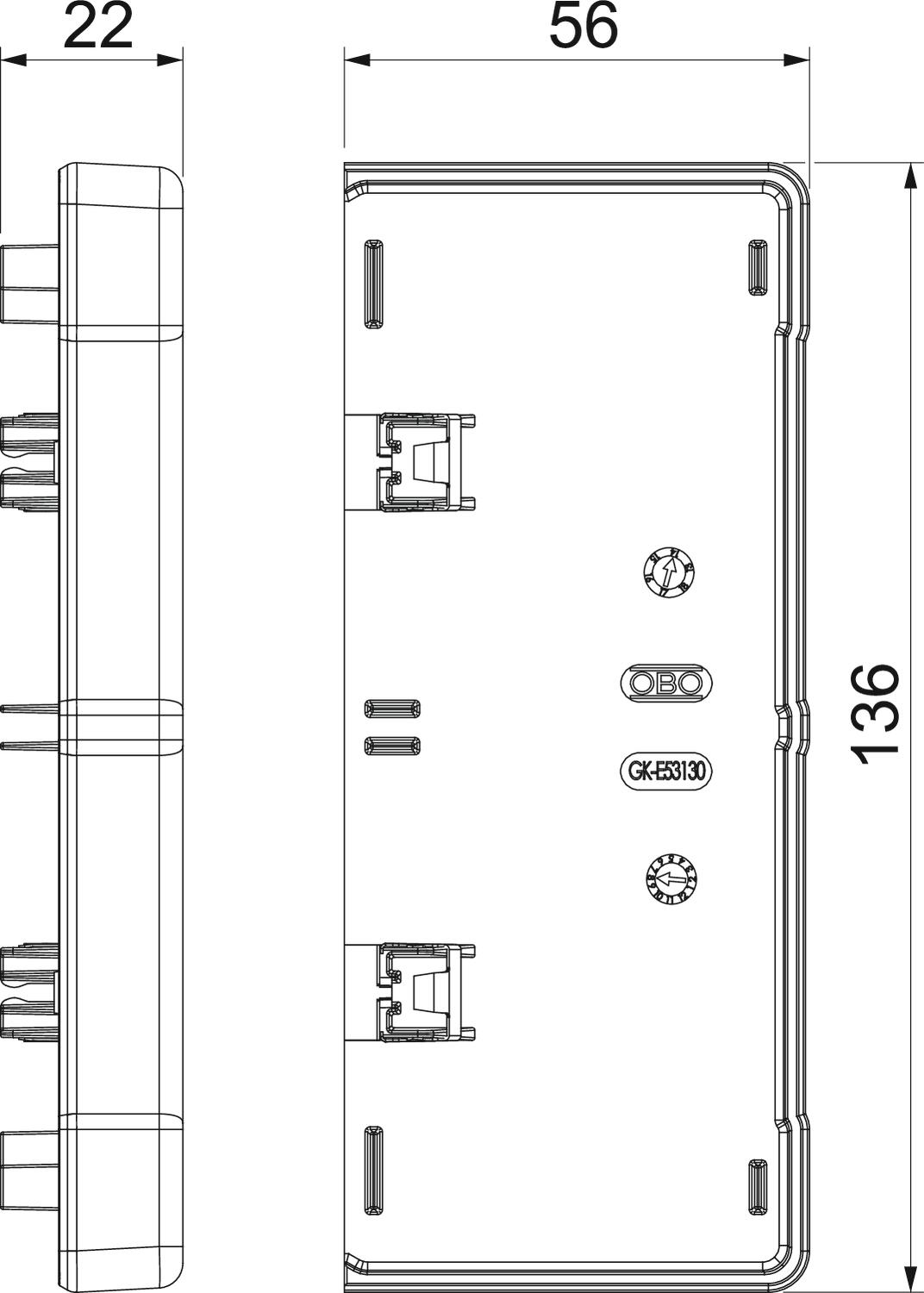

Dimension 136x56x22
Fastening type Lockable
for duct width 130 mm
for trunking height 53 mm
Halogen-free yes
Height 56 mm
Length 22 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Protective film no
Suitable for Left/right
Version for Symmetrical
Width 136 mm
All types

All types

Types Colour Item no. Quantity SSU
GK-E53130RW Pure white; RAL 9010 6113280
1 piece
GK-E53130LGR Light grey; RAL 7035 6113282
1 piece
GK-E53130AL aluminium 6113284
1 piece
Downloads

Download

Download

EU declaration of conformity GK-E53130RW / 6113280 , 0.11MB , pdf
Download
REACH Declaration of conformity GK-E53130RW / 6113280 , 0.12MB , pdf
Download
RoHS Declaration of conformity GK-E53130RW / 6113280 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
