Note: This article is discontinued.
You can find the current article here: 6113380 / End piece, for Rapid 45-2 device installation trunking, type 53160
End piece, for device installation trunking Rapid 45-2 type GK-53160
Item no. 6116403 | EAN 4012195391685
- Product description
-

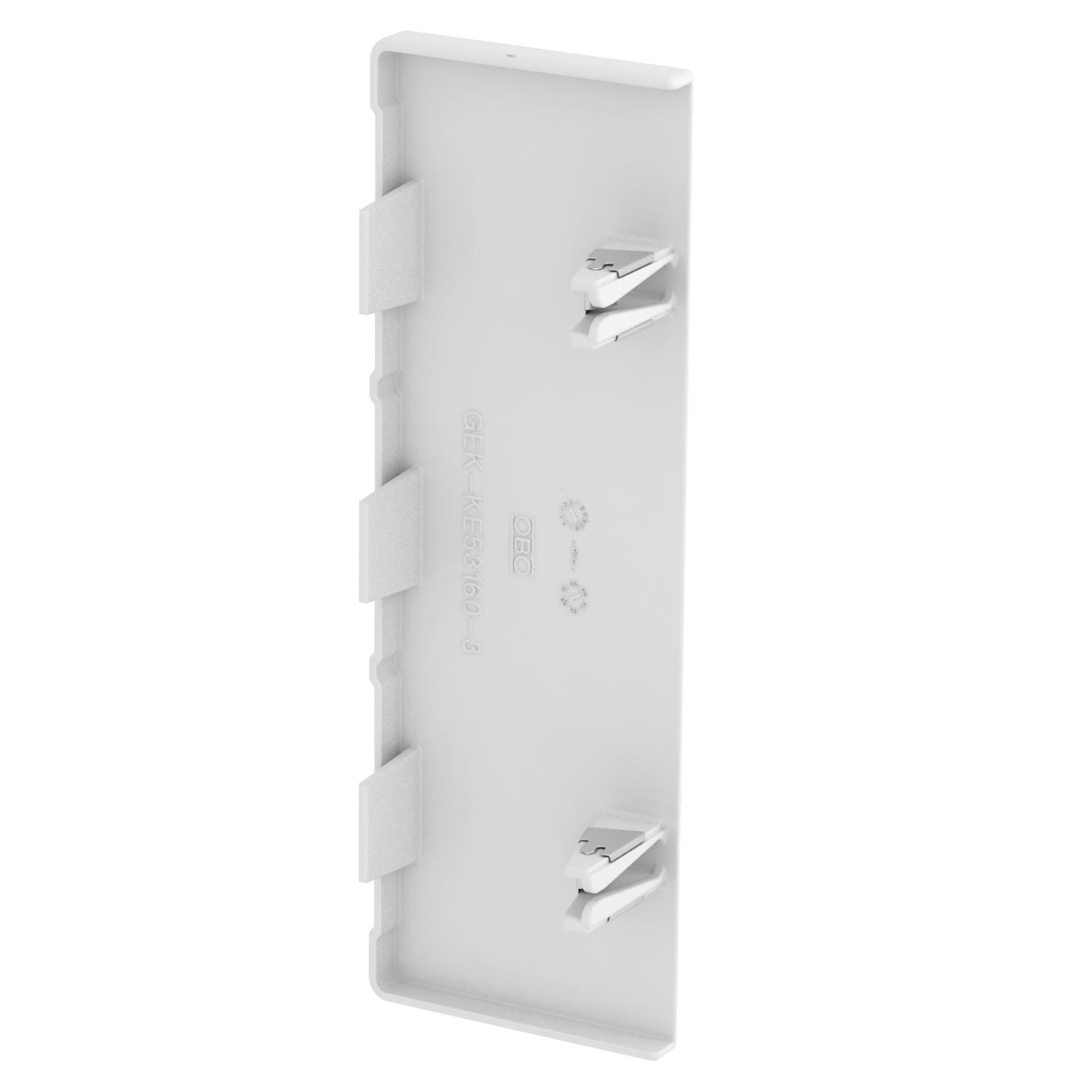

Product descriptionEnd piece for closing the device installation trunking Rapid 45 GEK-K53160-3.
The end pieces are pinned on the connector in the base and held in place.
-
- Technical data
-
Technical data

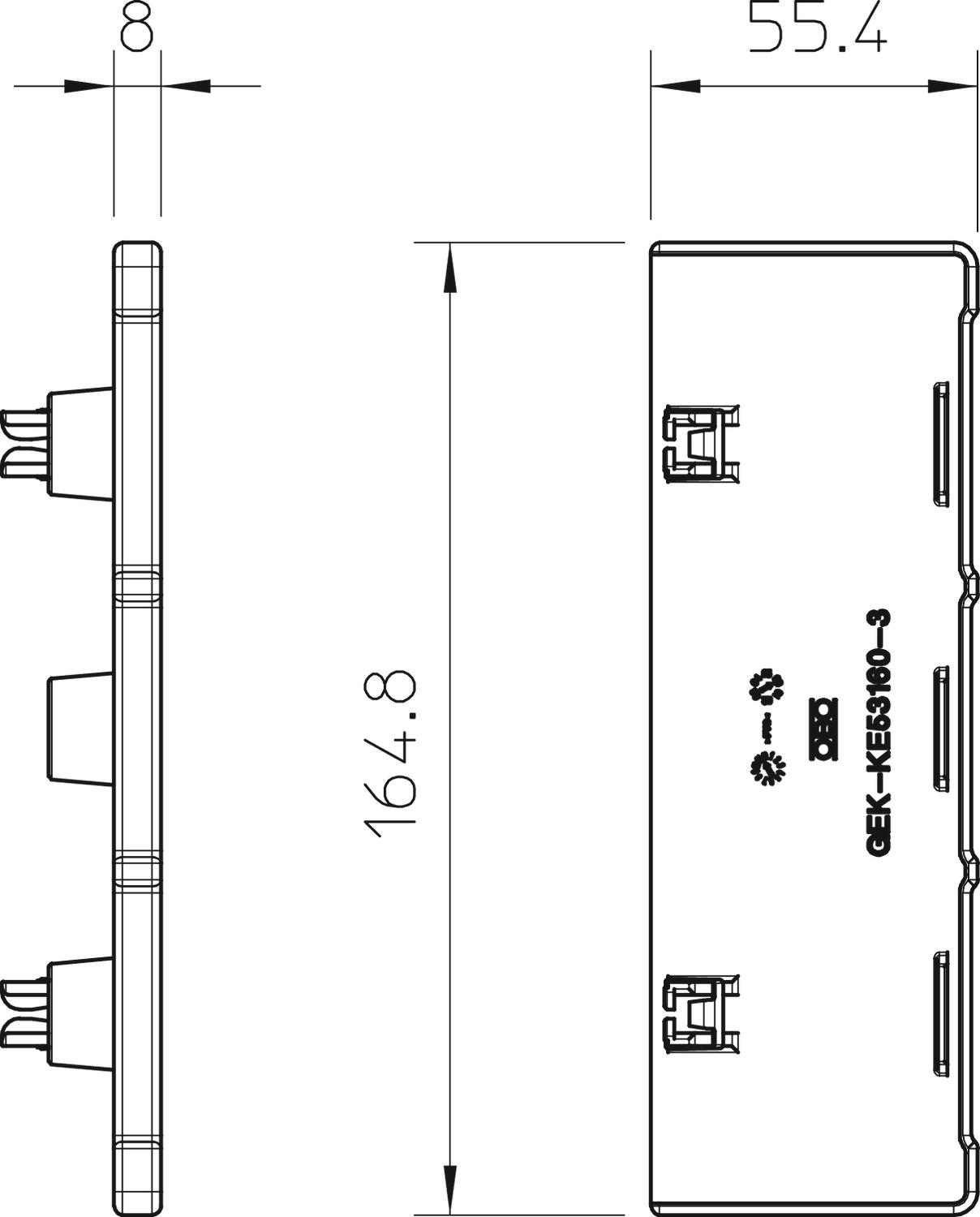

Antibacterial treatment no CO2 Footprint (GWP) Cradle-to-Gate 0,1186 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cut lamination yes Dimension 53x160mm Dimension a 164 mm Dimension b 55,4 mm Dimension H 160 mm Fastening type Lockable for trunking height 53 mm Halogen-free no Height 55,4 mm Length 8 mm Material Polyvinylchloride Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Protective film no Suitable for Left/right Version for Symmetrical Width 164,8 mm - All types
- Downloads
-
Data sheet GEK-KE53160-3 / 6116403 , 0.17MB , pdfSafety data sheet GEK-KE53160-3 / 6116403 , 0.02MB , pdfEU declaration of conformity GEK-KE53160-3 / 6116403 , 0.10MB , pdfREACH Declaration of conformity GEK-KE53160-3 / 6116403 , 0.12MB , pdfRoHS Declaration of conformity GEK-KE53160-3 / 6116403 , 0.13MB , pdfNo invitation to tender text is available for this product.
