End piece, for device installation trunking Rapid 80 type 70110 | | | | White aluminium; RAL 9006
morepic-1 morepic-2 video-1

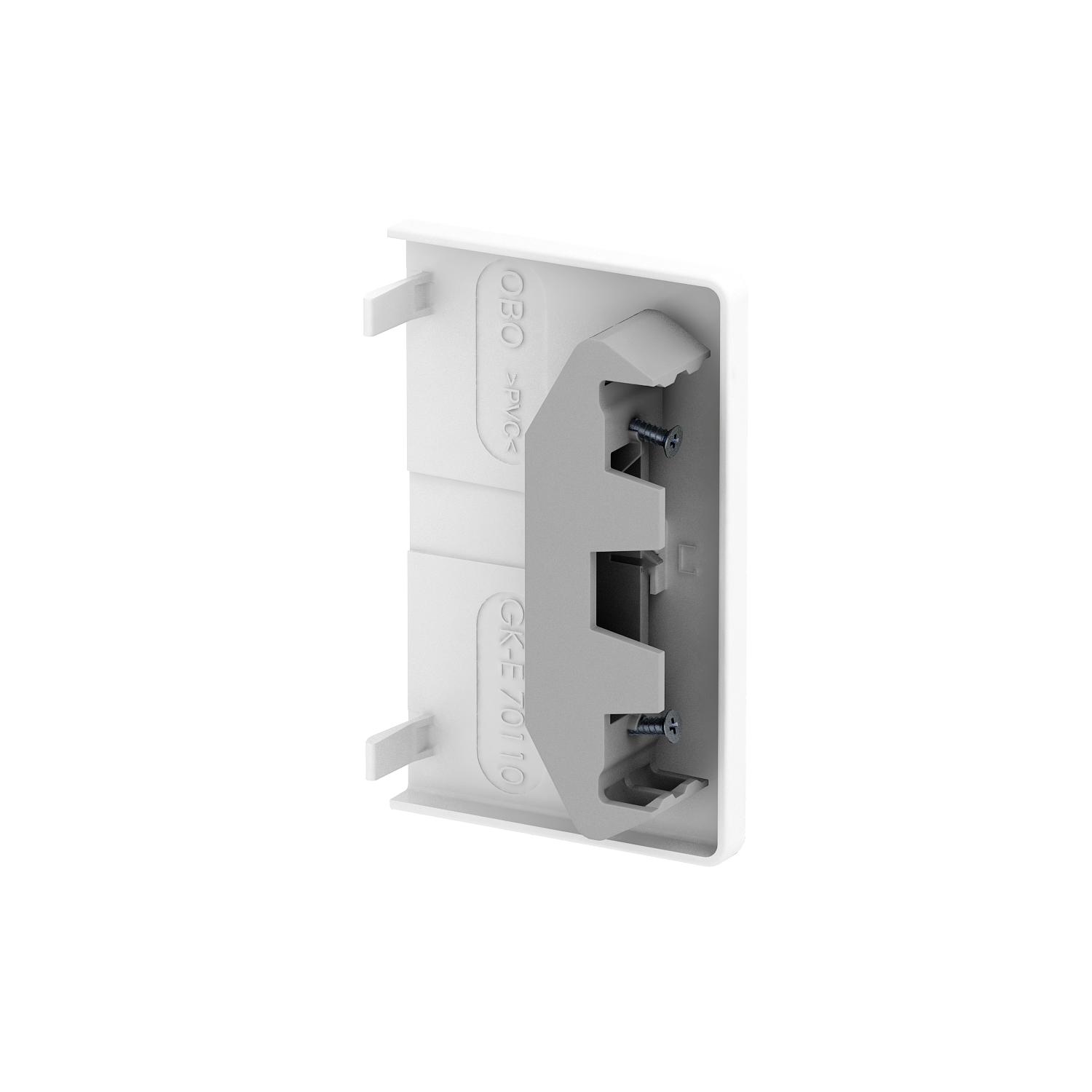

End piece, for device installation trunking Rapid 80 type 70110

Item no. 6274374 | EAN 4012195842705

Product description
Product description
End piece for closing the device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,2349 kg CO2e / 1 Piece
Colour White aluminium; RAL 9006
Cut lamination yes

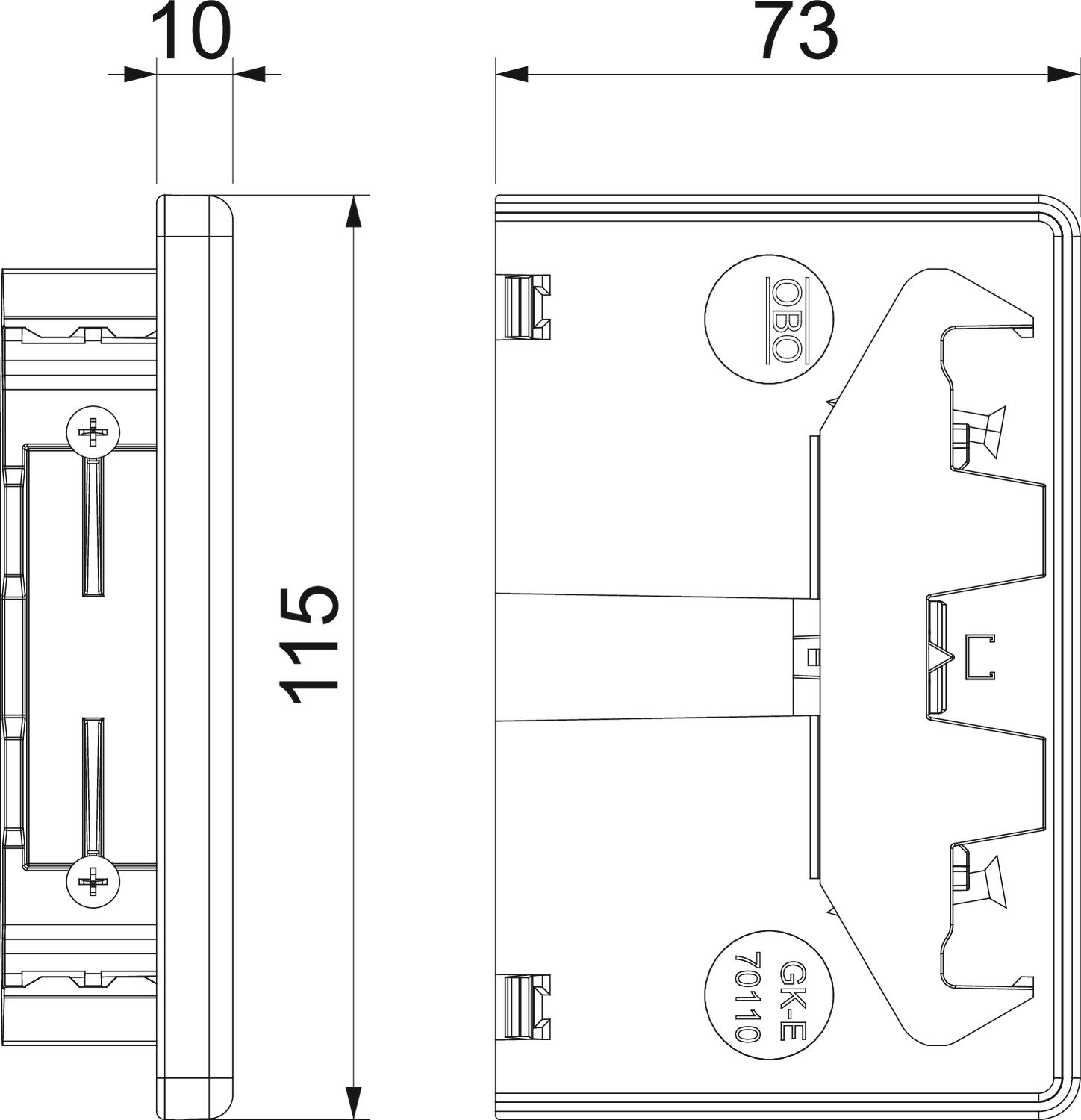

Dimension 70x110mm
Fastening type Screw-on
for duct width 110 mm
for trunking height 70 mm
Halogen-free no
Height 73 mm
Length 29 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP30
Protection rating IK code IK08
Protective film yes
Suitable for Left/right
Version for Symmetrical
Width 115 mm
All types

All types

Types Colour Item no. Quantity SSU
GK-E70110RW Pure white; RAL 9010 6274370
1 piece
GK-E70110CW Cream; RAL 9001 6274371
1 piece
GK-E70110LGR Light grey; RAL 7035 6274372
1 piece
GK-E70110WA White aluminium; RAL 9006 6274374
1 piece
GK-E70110GR Stone grey; RAL 7030 6274376
1 piece
Downloads

Download
Download

Download

EU declaration of conformity GK-E70110WA / 6274374 , 0.10MB , pdf
Download
UK Declaration of Conformity GK-E70110WA / 6274374 , 0.09MB , pdf
Download

Download

Download
Download

No invitation to tender text is available for this product.
