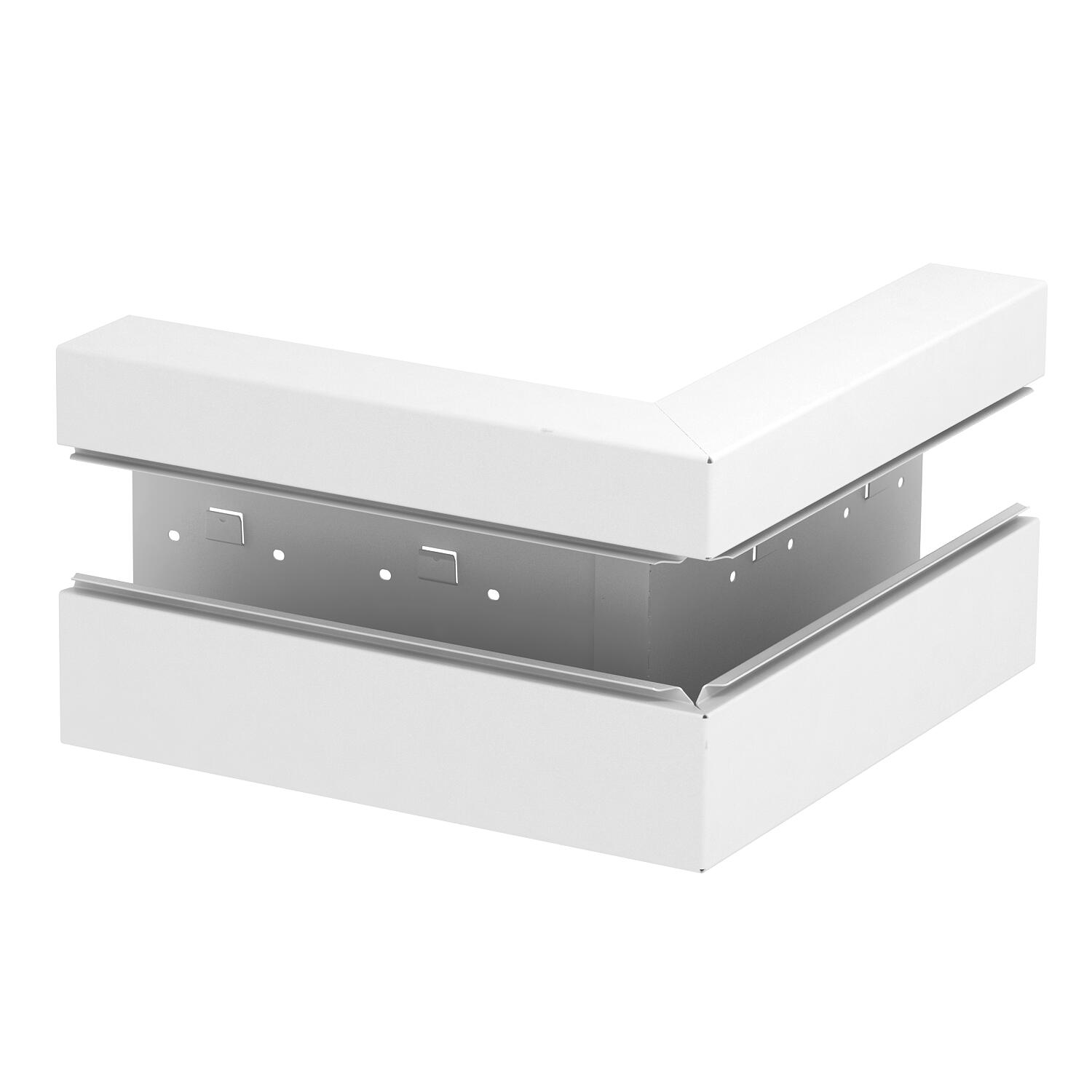

External corner, asymmetrical, for device installation trunking Rapid 80 type GS-A70210
Item no. 6278010 | EAN 4012195663812
- Product description
-
Product descriptionExternal corner for changing the direction of the GS device installation trunking.
-
- Technical data
-
Technical data

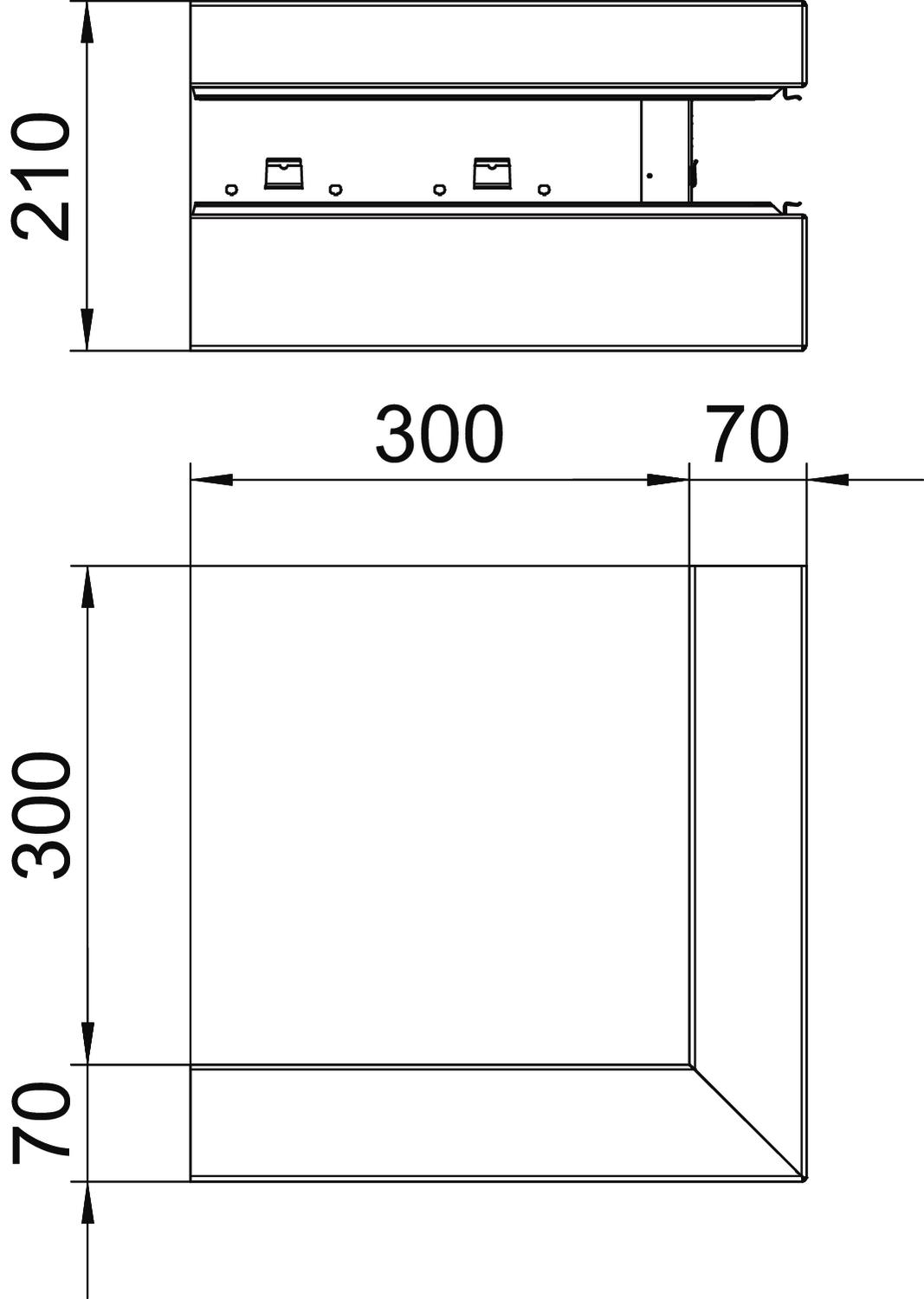

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 10,5218 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Dimension 70x210x300 Duct connector no for duct width 210 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 300 mm Material Steel Mounting perforation in base yes Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Symmetrical no Version for Base Width 210 mm - All types
- Downloads
-
Data sheet GS-AA70210RW / 6278010 , 0.22MB , pdfEU declaration of conformity GS-AA70210RW / 6278010 , 0.11MB , pdfUK Declaration of Conformity GS-AA70210RW / 6278010 , 0.09MB , pdfREACH Declaration of conformity GS-AA70210RW / 6278010 , 0.12MB , pdfRoHS Declaration of conformity GS-AA70210RW / 6278010 , 0.12MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
