External corner cover, trunking type WDK 20050 45 | 50 | 20 | 20 x 50 | Pure white; RAL 9010
morepic-1 morepic-2

External corner cover, trunking type WDK 20050

Item no. 6154468 | EAN 4012196493210

45 mm
50 mm
20 mm
20 x 50
Product description
Product description
External corner hood for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,068 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Dimension 20x50mm

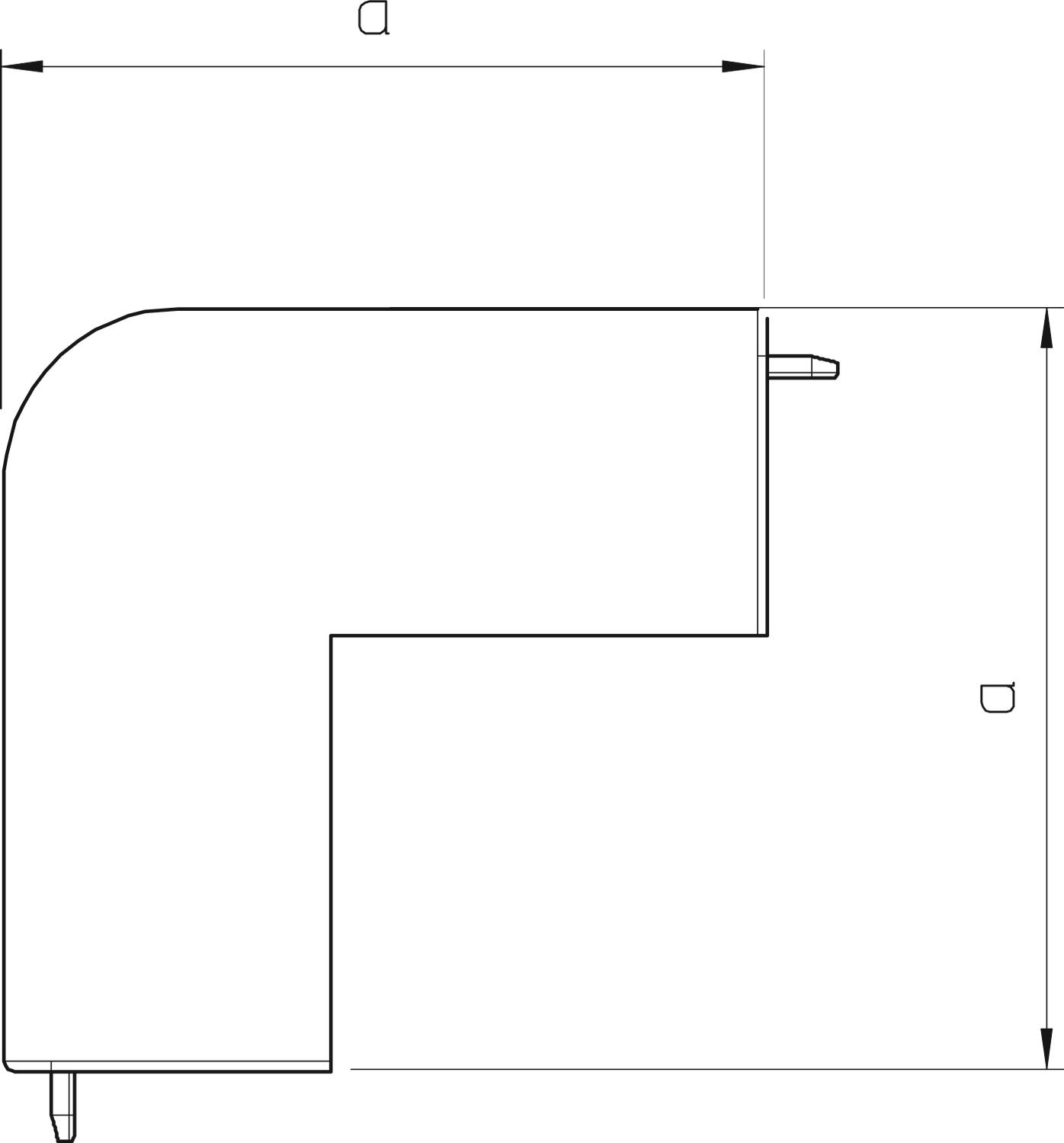

Dimension a 45 mm
Dimension H 50 mm
Fastening type Lockable
for duct dimension 20 x 50
Halogen-free no
Height 20 mm
Length 45 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Self-extinguishing yes
Trunking depth 20 mm
Version for Hood fitting
Width 50 mm
All types

All types

Types Length Width Height for duct dimension Colour Item no. Quantity SSU
WDK HA20050CW 45 mm 50 mm 20 mm 20 x 50 Cream; RAL 9001 6153372
4 piece
WDK HA20050RW 45 mm 50 mm 20 mm 20 x 50 Pure white; RAL 9010 6154468
4 piece
