Angle range, max.	90 mm
Angle range, min.	90 mm
Antibacterial treatment	no
CO2 Footprint (GWP) Cradle-to-Gate	0,3114 kg CO2e / 1 Piece
Colour	Stone grey; RAL 7030
Dimension	40x110mm

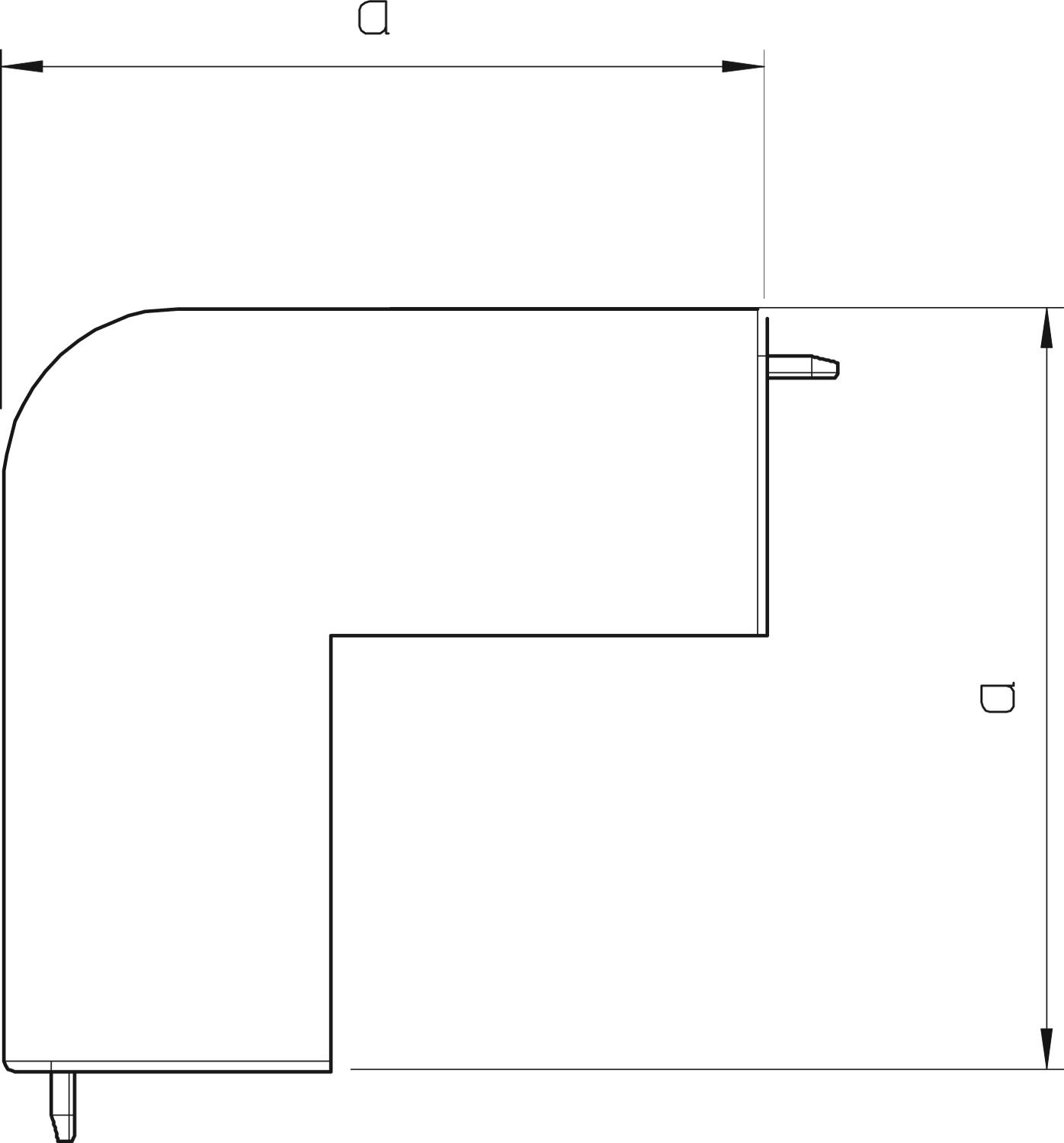

Dimension a	100 mm
Dimension H	110 mm
Fastening type	Lockable
for duct dimension	40 x 110
Halogen-free	no
Height	40 mm

Length	100 mm
Maintain electrical functions	no
Material	Polyvinylchloride
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Protection rating	IP30
Protection rating IK code	IK04
Protective film	no
Self-extinguishing	yes
Trunking depth	40 mm
Version for	Hood fitting
Width	110 mm

Types	Length	Width	Height	for duct dimension	Colour	Item no.	Quantity	SSU
WDK HA40110GR	100 mm	110 mm	40 mm	40 x 110	Stone grey; RAL 7030	6021700	piece	2 piece
WDK HA40110CW	100 mm	110 mm	40 mm	40 x 110	Cream; RAL 9001	6160727	piece	2 piece
WDK HA40110LGR	100 mm	110 mm	40 mm	40 x 110	Light grey; RAL 7035	6182550	piece	2 piece
WDK HA40110RW	100 mm	110 mm	40 mm	40 x 110	Pure white; RAL 9010	6192270	piece	2 piece

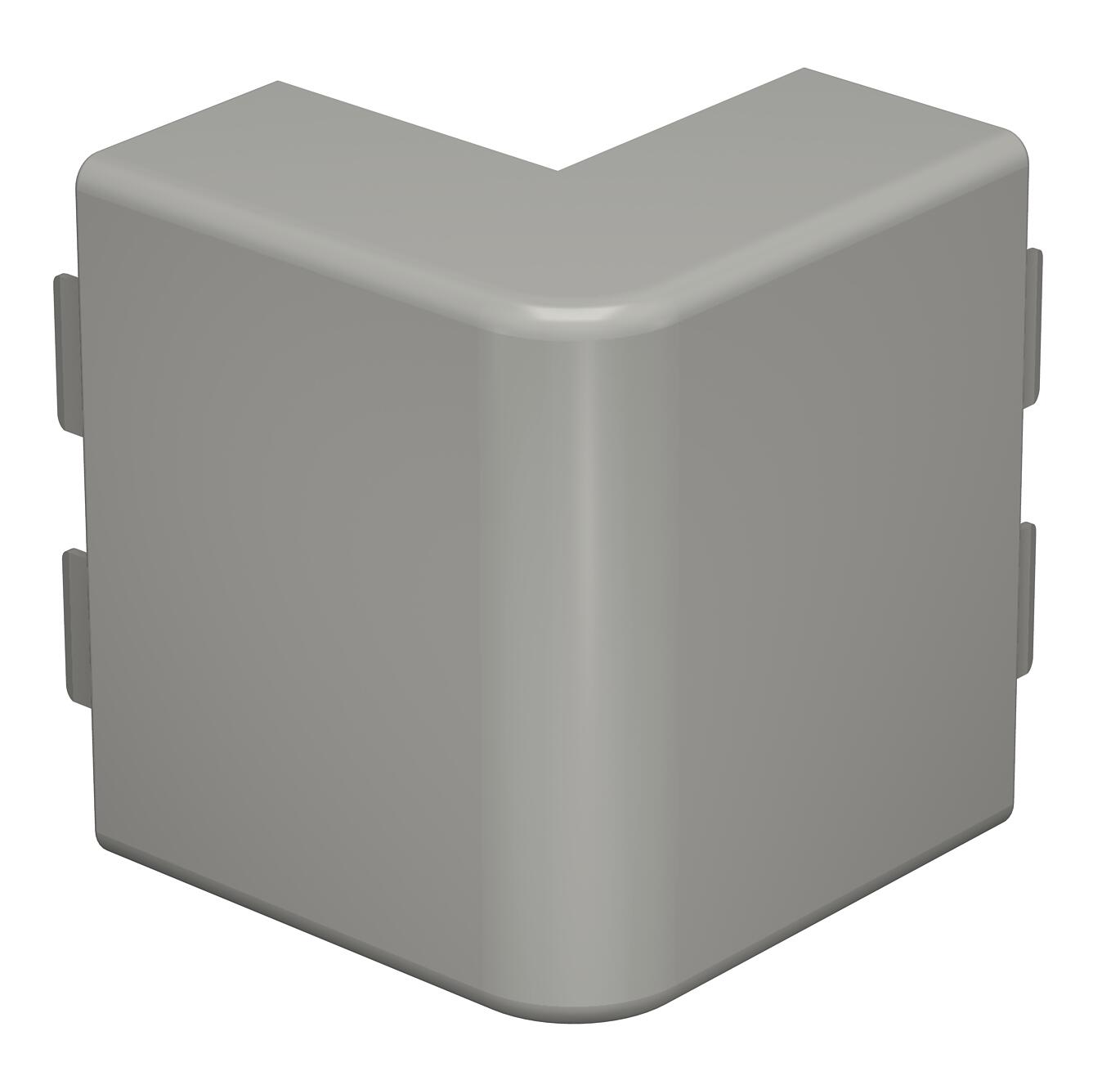

External corner cover, trunking type WDK 40110

All types
