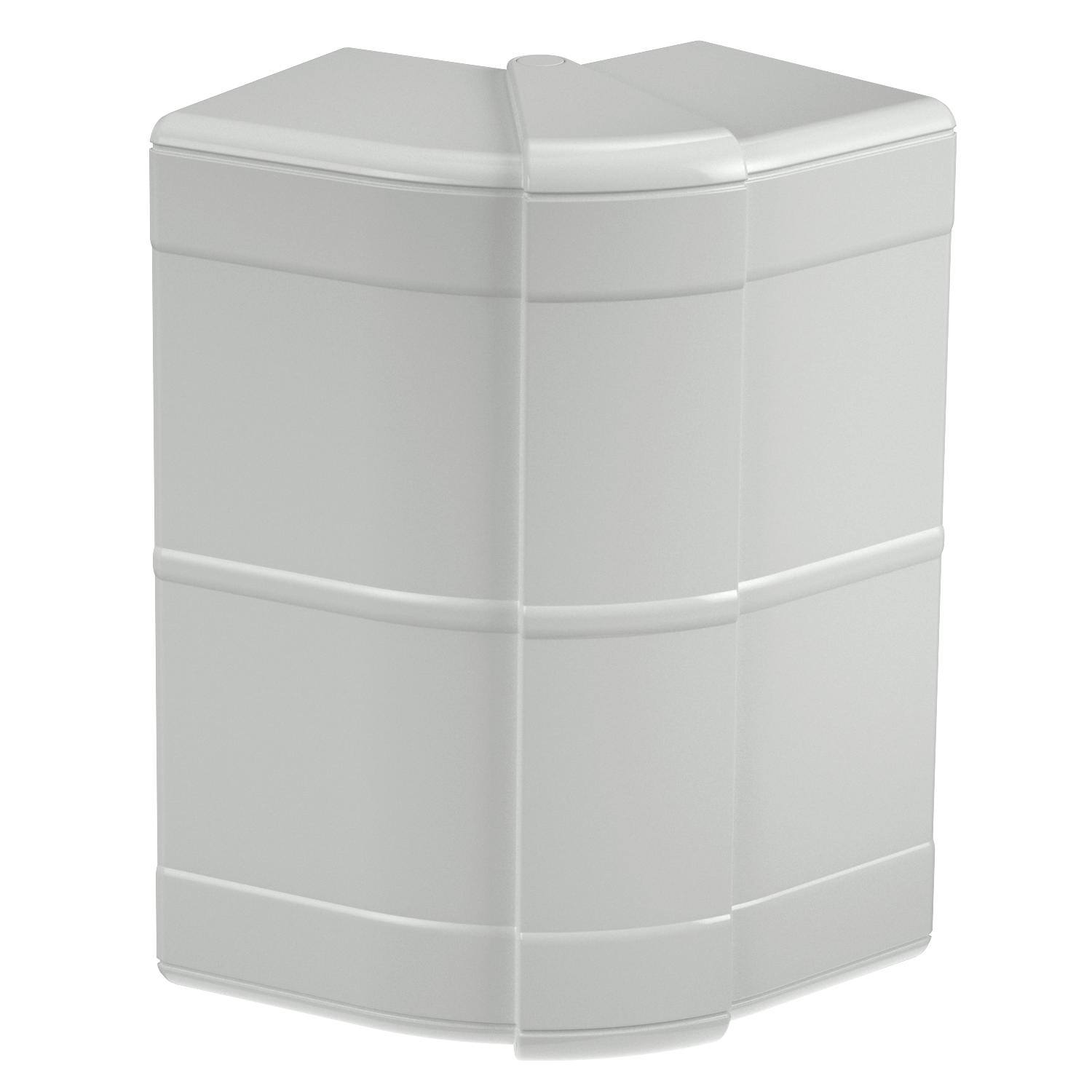

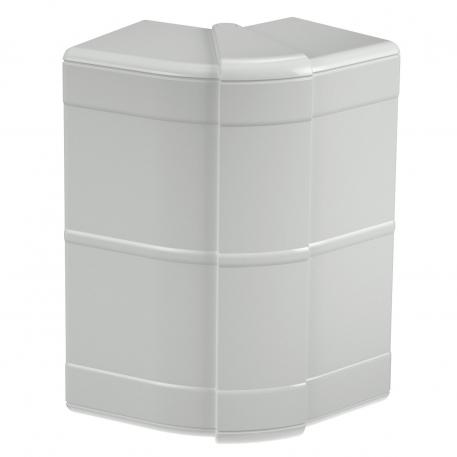

External corner hood, for device installation trunking Rapid 45-2 type 53130
Item no. 6113232 | EAN 4012196419500
- Product description
-
Product descriptionExternal corner for changing the direction of Rapid 45-2 device installation trunking. The fittings can be adjusted between 80‒110°.
-
- Technical data
-
Technical data

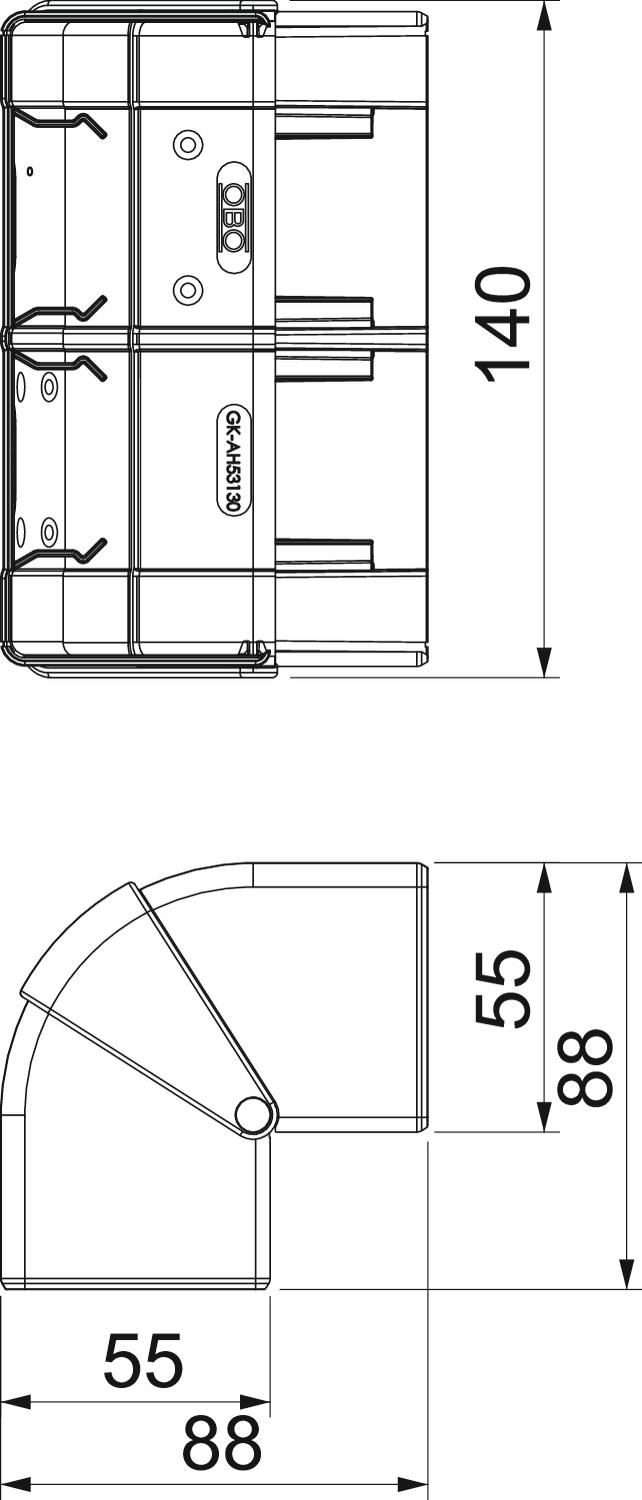

Angle range, max. 110 mm Angle range, min. 80 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 0,5441 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover mounting type Cross-over Dimension 140x88x88 Duct connector no for duct width 130 mm for trunking height 53 mm Halogen-free yes Height 55 mm Length 88 mm Material Polycarbonate/Acrylnitrile-butadiene-styrene Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film no Symmetrical yes Version for Hood fitting Width 140 mm - All types
- Downloads
-
Data sheet GK-AH53130LGR / 6113232 , 0.24MB , pdfEU declaration of conformity GK-AH53130LGR / 6113232 , 0.10MB , pdfREACH Declaration of conformity GK-AH53130LGR / 6113232 , 0.12MB , pdfRoHS Declaration of conformity GK-AH53130LGR / 6113232 , 0.13MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
