Flat angle, asymmetrical, falling, for device installation trunking Rapid 80 type GS-A90210 210 | 90 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

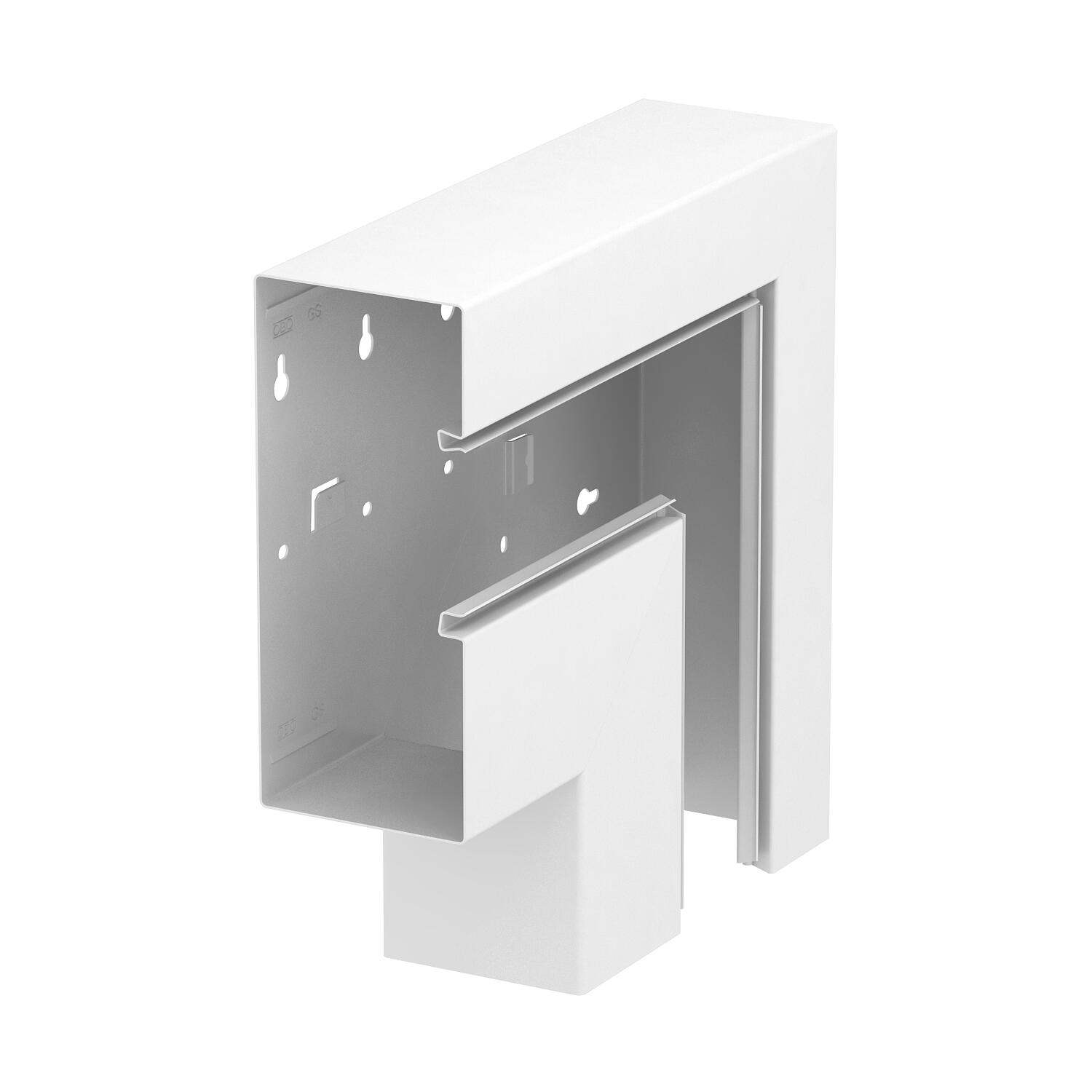

Flat angle, asymmetrical, falling, for device installation trunking Rapid 80 type GS-A90210

Item no. 6278130 | EAN 4012195664260

6278130 / GS-AFF90210RW
210 mm
90 mm
Pure white; RAL 9010
Product description
Product description
Flat angle, falling, for changing the direction of the GS device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, falling
CO2 Footprint (GWP) Cradle-to-Gate 8,0491 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cover mounting type Internal
Cover width 76,5 mm

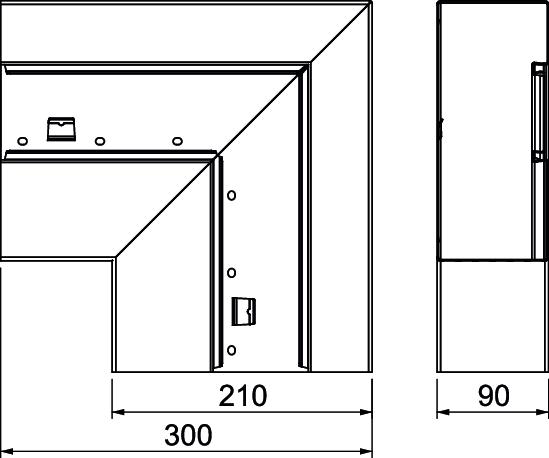

Dimension 90x210x300
Duct connector no
for duct width 210 mm
for trunking height 90 mm
Halogen-free yes
Height 90 mm
Length 300 mm
Material Steel
Mounting perforation in base yes
Number of covers 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Symmetrical no
Version for Base
Width 210 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
GS-AFF90210RW 210 mm 90 mm Pure white; RAL 9010 6278130
1 piece
Downloads

Download

Download

EU declaration of conformity GS-AFF90210RW / 6278130 , 0.10MB , pdf
Download
UK Declaration of Conformity GS-AFF90210RW / 6278130 , 0.09MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
