Flat angle hood, for device installation trunking Rapid 45-2 type GK-53165 172 | 55.5 | Pure white; RAL 9010
morepic-1 morepic-2

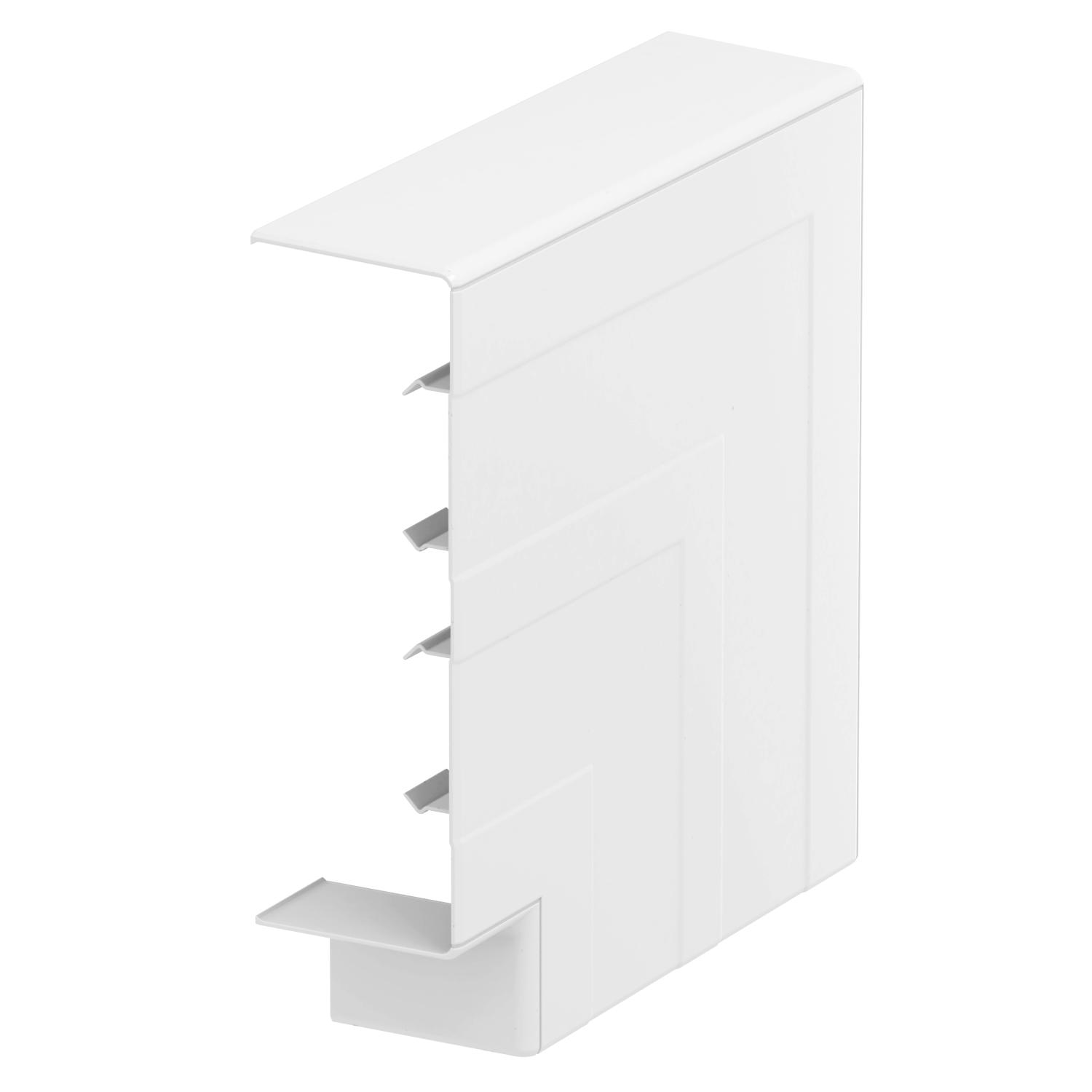

Flat angle hood, for device installation trunking Rapid 45-2 type GK-53165

Item no. 6113460 | EAN 4012196420094

172 mm
55.5 mm
Product description
Product description
Flat angle as hood fitting for changing the direction of the Rapid 45-2 device installation trunking.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
Change of direction Vertical, rising/falling
CO2 Footprint (GWP) Cradle-to-Gate 1,0149 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cover mounting type Cross-over

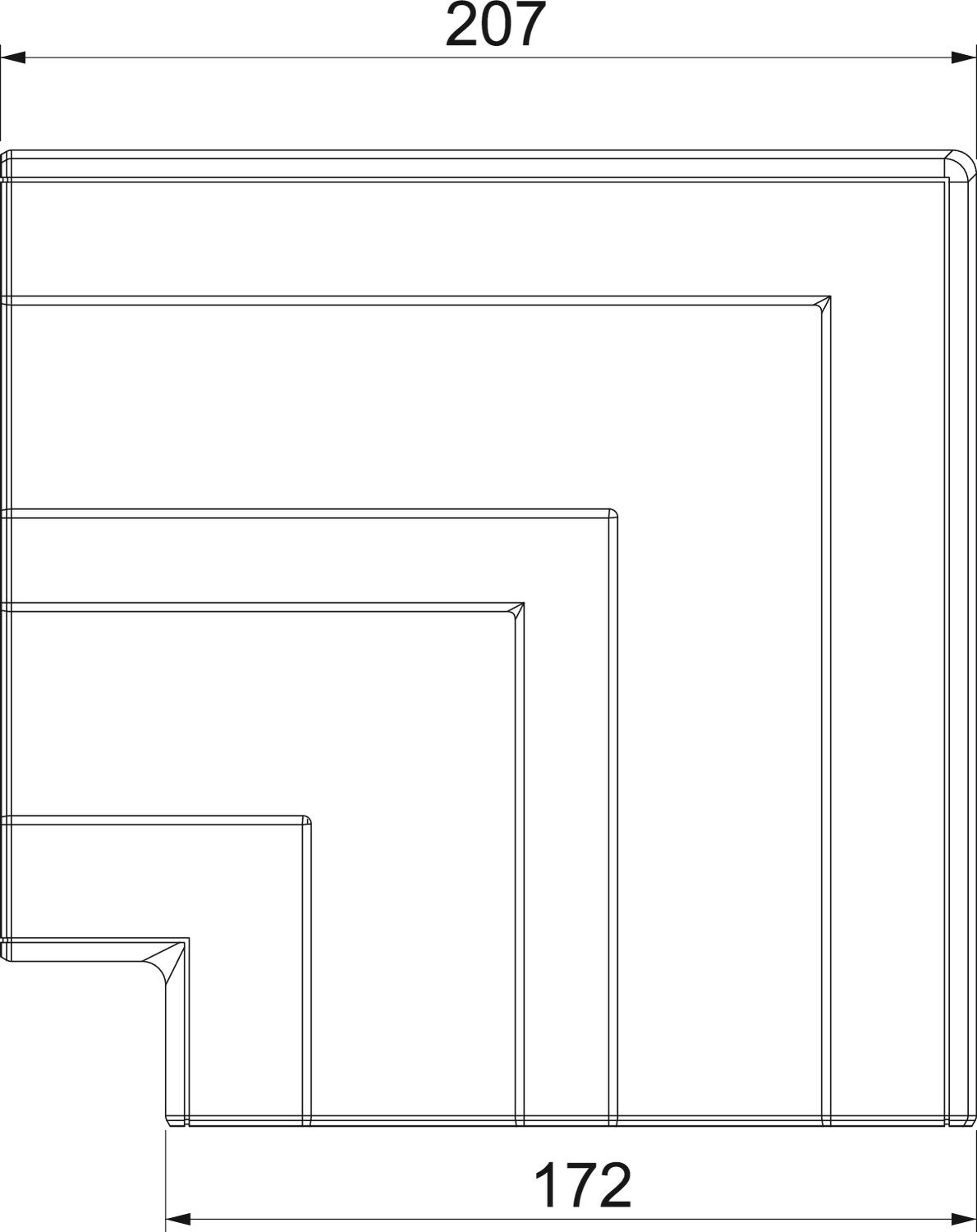

Dimension 207x207x56
Duct connector no
for duct width 165 mm
for trunking height 53 mm
Halogen-free yes
Height 55,5 mm
Length 207 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base no
Number of covers 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -15 °C
Protection rating IP40
Protection rating IK code IK08
Protective film no
Symmetrical yes
Version for Hood fitting
Width 172 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
GK-FH53165RW 172 mm 55.5 mm Pure white; RAL 9010 6113460
1 piece
GK-FH53165LGR 172 mm 55.5 mm Light grey; RAL 7035 6113462
1 piece
GK-FH53165AL 172 mm 55.5 mm aluminium 6113464
1 piece
Downloads

Download

Download

EU declaration of conformity GK-FH53165RW / 6113460 , 0.10MB , pdf
Download
REACH Declaration of conformity GK-FH53165RW / 6113460 , 0.12MB , pdf
Download
RoHS Declaration of conformity GK-FH53165RW / 6113460 , 0.13MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
