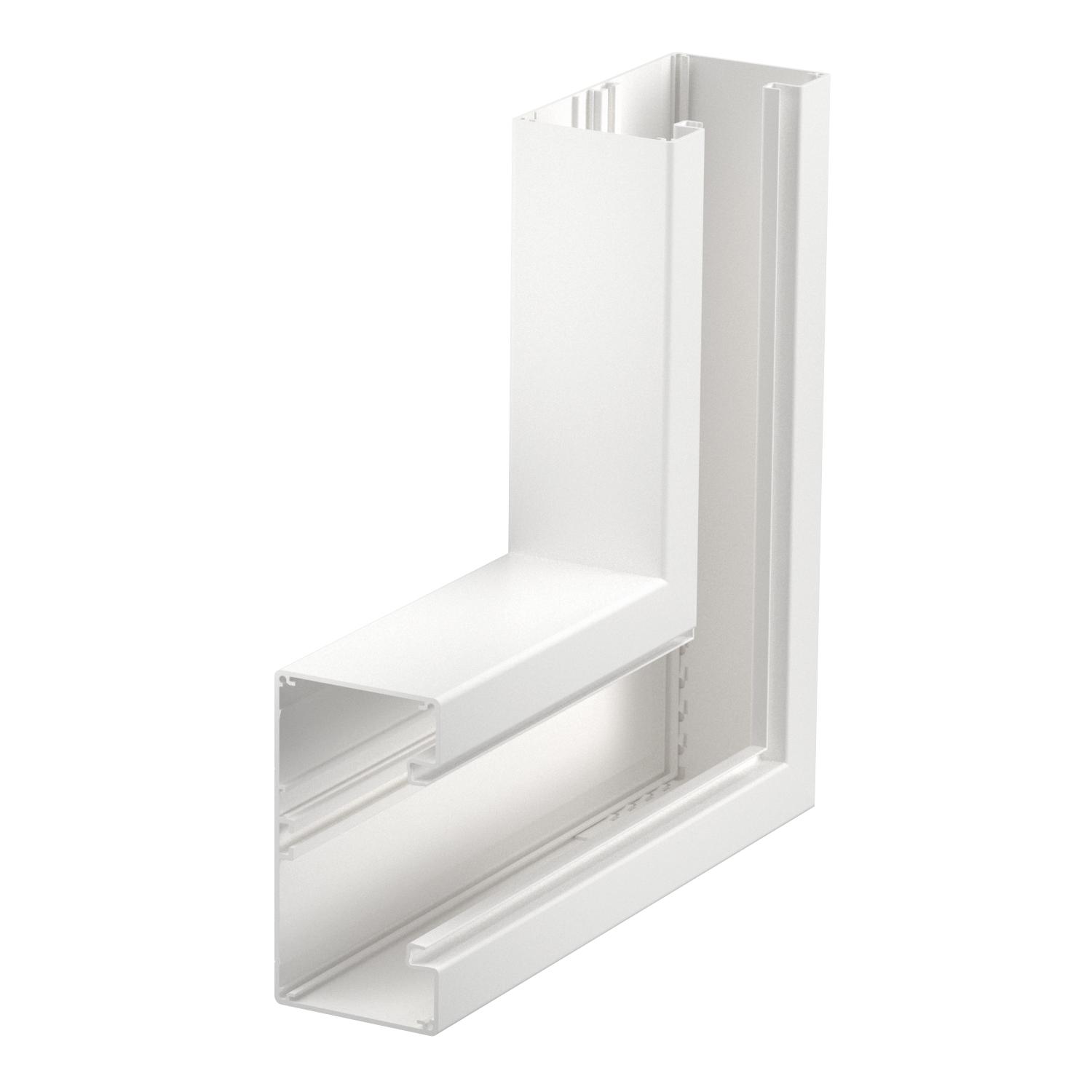

Flat angle, symmetrical, for device installation trunking Rapid 80 type GA-S70130
Item no. 6279320 | EAN 4012195768487
- Product description
-
Product descriptionFlat angle for changing the direction of the Rapid 80 GA aluminium device installation trunking.
The visible surfaces of the fittings are laminated. The cover must be ordered separately.
-
- Technical data
-
Technical data

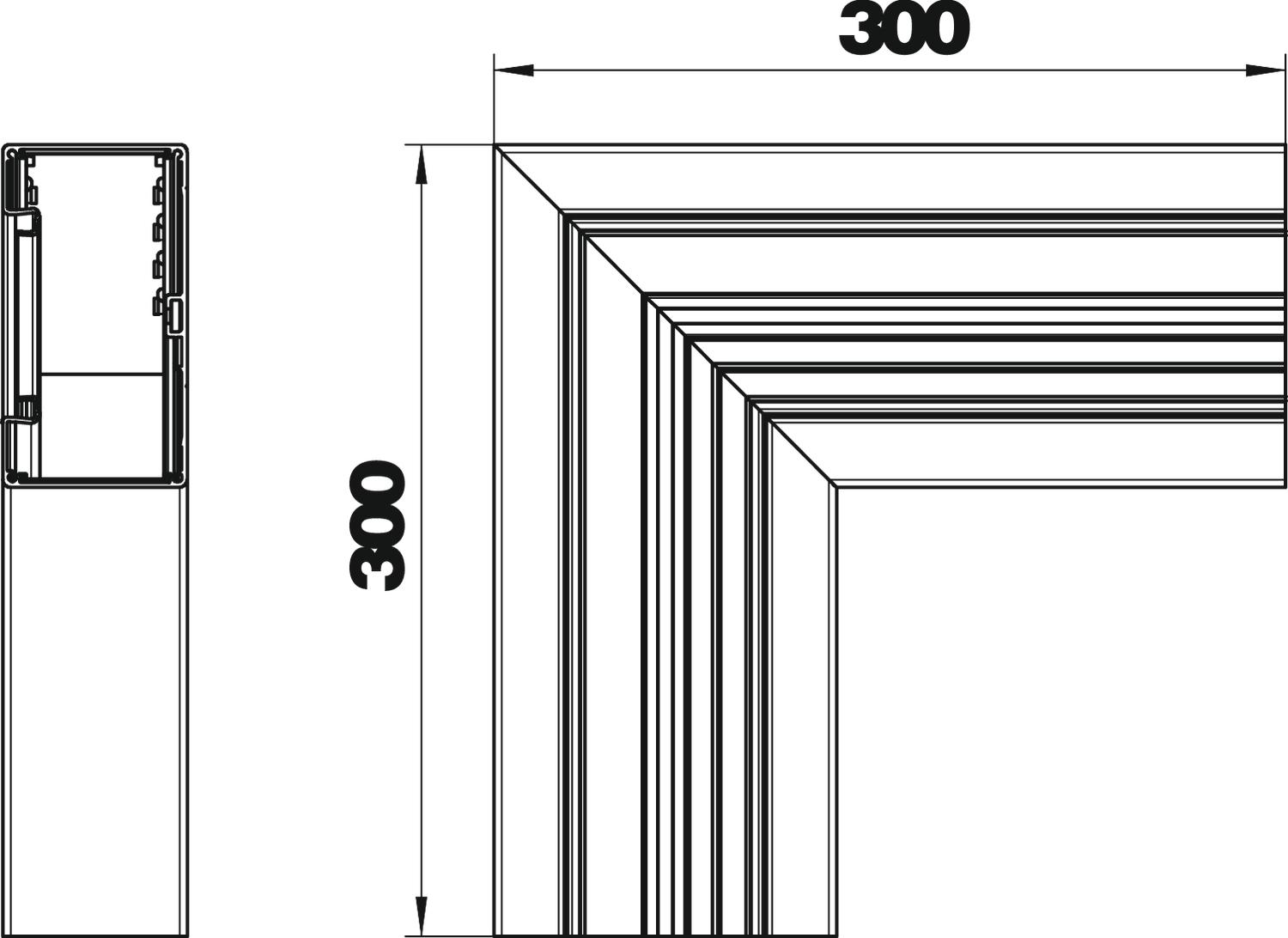

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no Change of direction Vertical, rising/falling CO2 Footprint (GWP) Cradle-to-Gate 19,1405 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Dimension 70x130x300 Duct connector no for duct width 130 mm for trunking height 70 mm Halogen-free yes Height 70 mm Length 300 mm Material Aluminium Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Symmetrical yes Version for Base Width 130 mm - All types
- Downloads
-
Data sheet GA-SF70130RW / 6279320 , 0.20MB , pdfEU declaration of conformity GA-SF70130RW / 6279320 , 0.10MB , pdfUK Declaration of Conformity GA-SF70130RW / 6279320 , 0.09MB , pdfREACH Declaration of conformity GA-SF70130RW / 6279320 , 0.27MB , pdfRoHS Declaration of conformity GA-SF70130RW / 6279320 , 0.28MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
