GES2 with MT3 45
Item no. 7429580 | EAN 4012196086641
- Product description
-

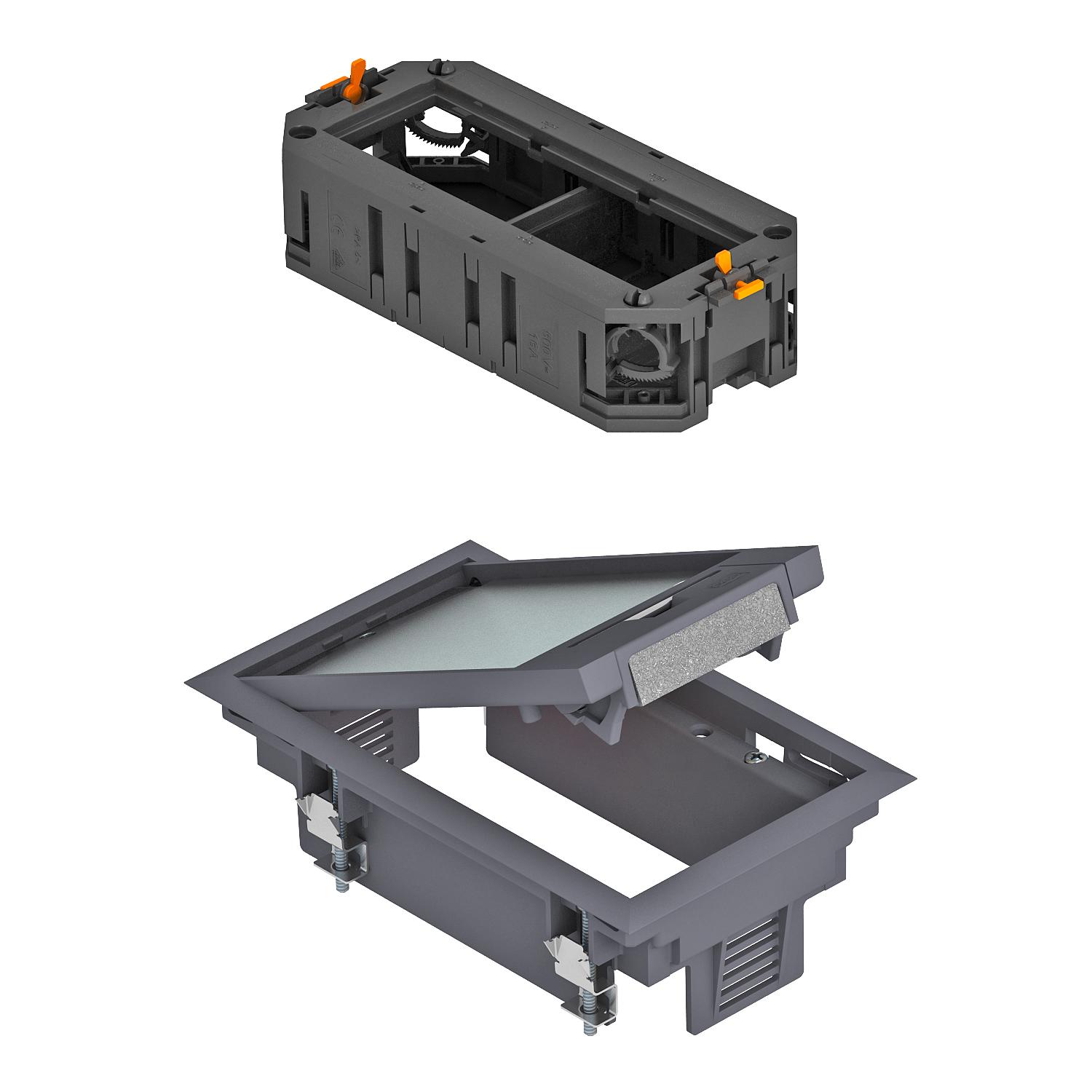

Product descriptionService outlet with all necessary system accessories for direct installation in screed floors for indoor use.
The scope of delivery contains a service outlet of nominal size 2 with universal fastening bracket and one module support for three Modul 45 devices.
Service outlet with carpet protection frame, hinged lid and cord outlet made of polyamide in the colour RAL 7011. 5 mm floor covering recess in the hinged lid.
-
- Technical data
-
Technical data
Cable outlet version Swivellable cord outlet Clamping range D, max. 29 mm Clamping range D, min. 7 mm CO2 Footprint (GWP) Cradle-to-Gate 1,7907 kg CO2e / 1 Piece Colour Iron grey; RAL 7011 Floor covering thickness 5 mm Length of installation dimensions 181 mm Material Polyamide Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 Wide installation dimensions 105 mm - All types
- Downloads
-
Data sheet GES2 KU 7011 / 7429580 , 0.11MB , pdfSafety data sheet GES2 KU 7011 / 7429580 , 0.05MB , pdfCatalogue Underfloor systems , 2.10MB , pdfREACH Declaration of conformity GES2 KU 7011 / 7429580 , 0.12MB , pdfRoHS Declaration of conformity GES2 KU 7011 / 7429580 , 0.13MB , pdfMounting instructions GES KV KO RKSN KV KO , 3.61MB , pdfNo invitation to tender text is available for this product.
