GES9-3 service outlet with UT4 45
Item no. 7429592 | EAN 4012196086689
- Product description
-
Product description
Service outlet with all necessary system accessories for direct installation in screed floors for indoor use.

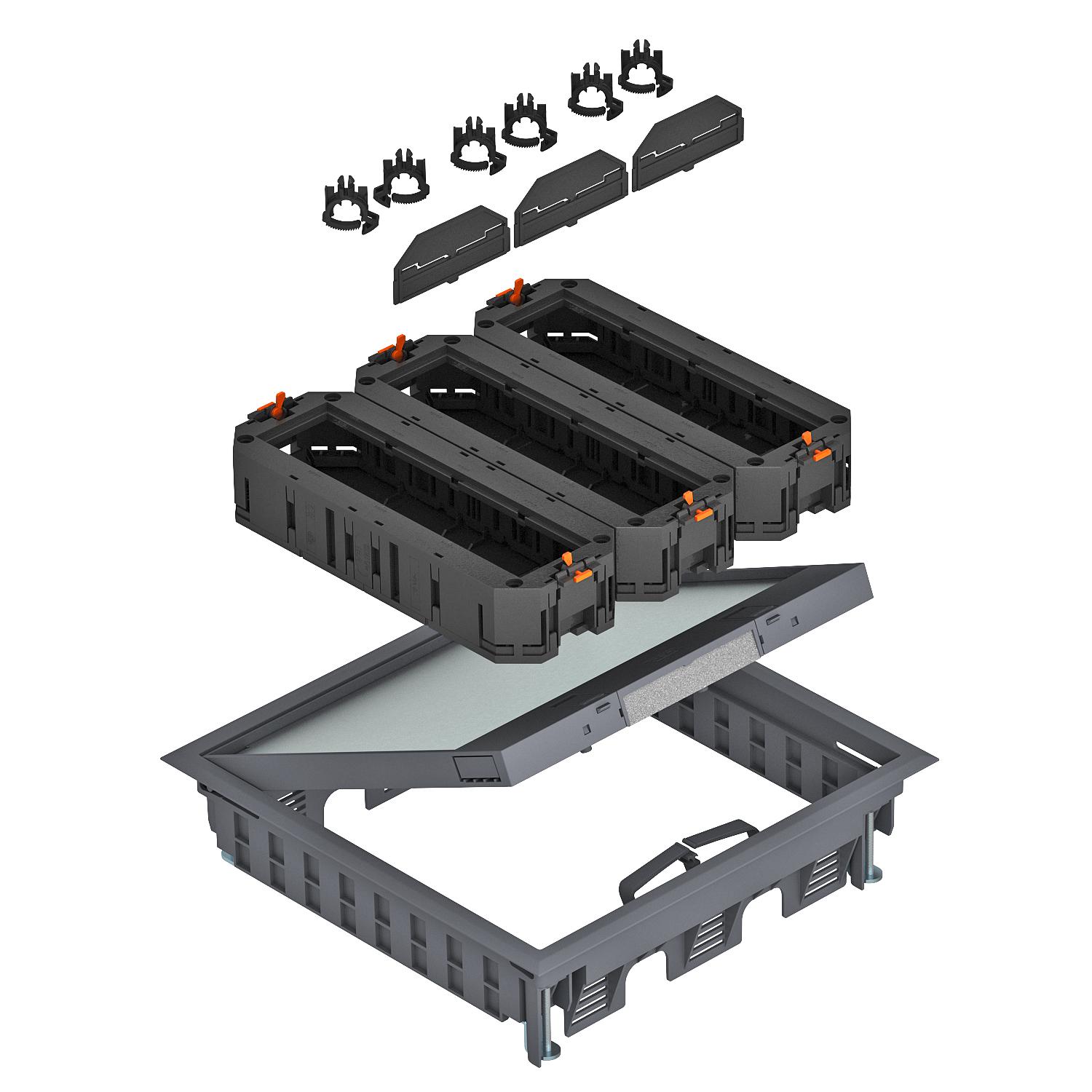

The scope of delivery contains a service outlet of nominal size 9 with universal fastening bracket and three universal supports, each for 4 Modul 45® devices.
Service outlet with carpet protection frame, hinged lid and cord outlet made of polyamide in the colour RAL 7011. 10 mm floor covering recess in the hinged lid (changeable to 3, 5 or 8 mm).
-
- Technical data
-
Technical data
Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 Floor covering thickness 5 mm Material Polyamide Opening mechanism Locking slider Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 - All types
- Downloads
-
Catalogue Underfloor systems , 2.10MB , pdfDeclaration of conformity GES9-3 KU 7011 / 7429592 , 0.15MB , pdfNo invitation to tender text is available for this product.
