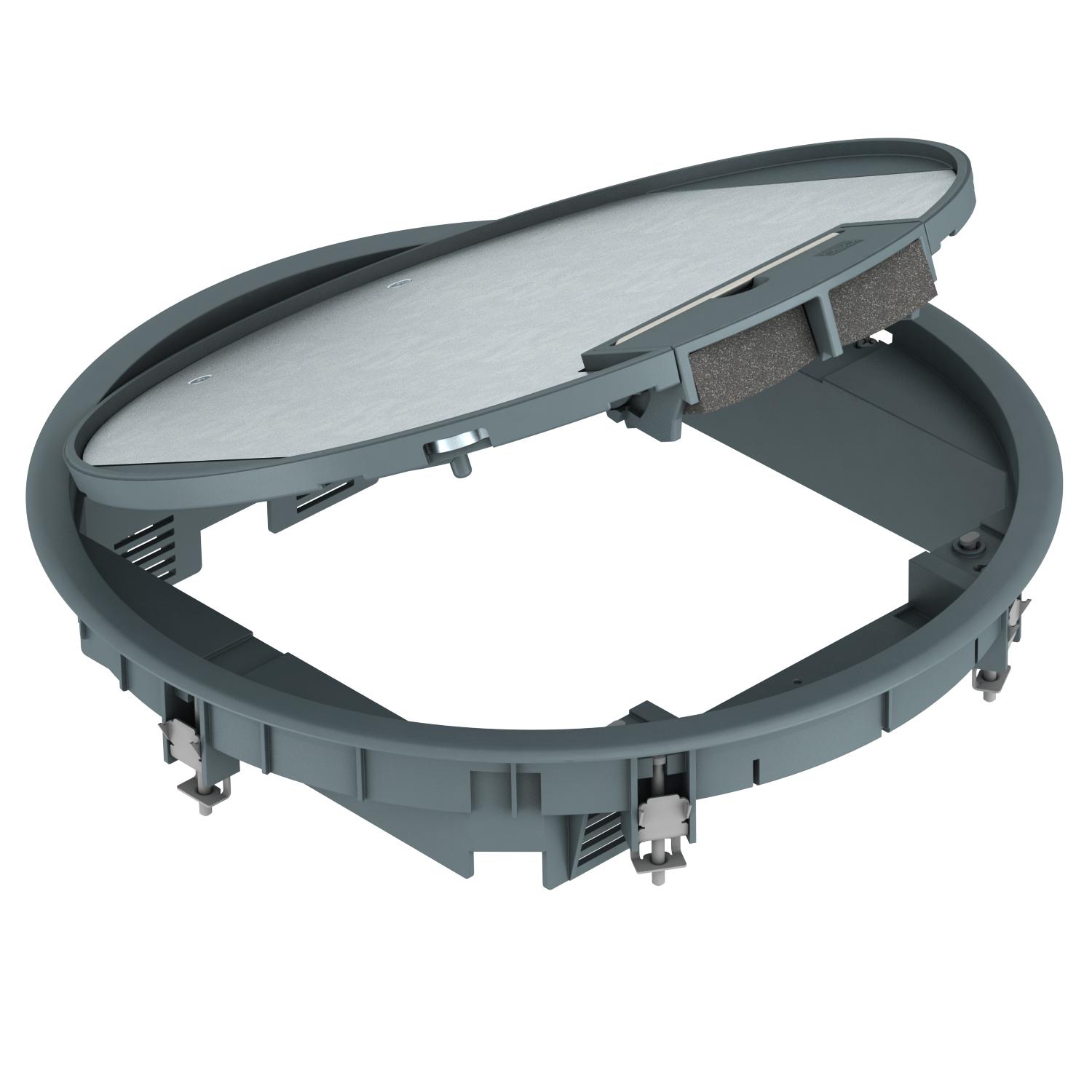

GESR9 service outlet with handle clamp
Item no. 7405528 | EAN 4012195104162
- Product description
-
Product description
Service outlet with handle clamp for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct systems and system floors for indoor use.
-
- Technical data
-
Technical data

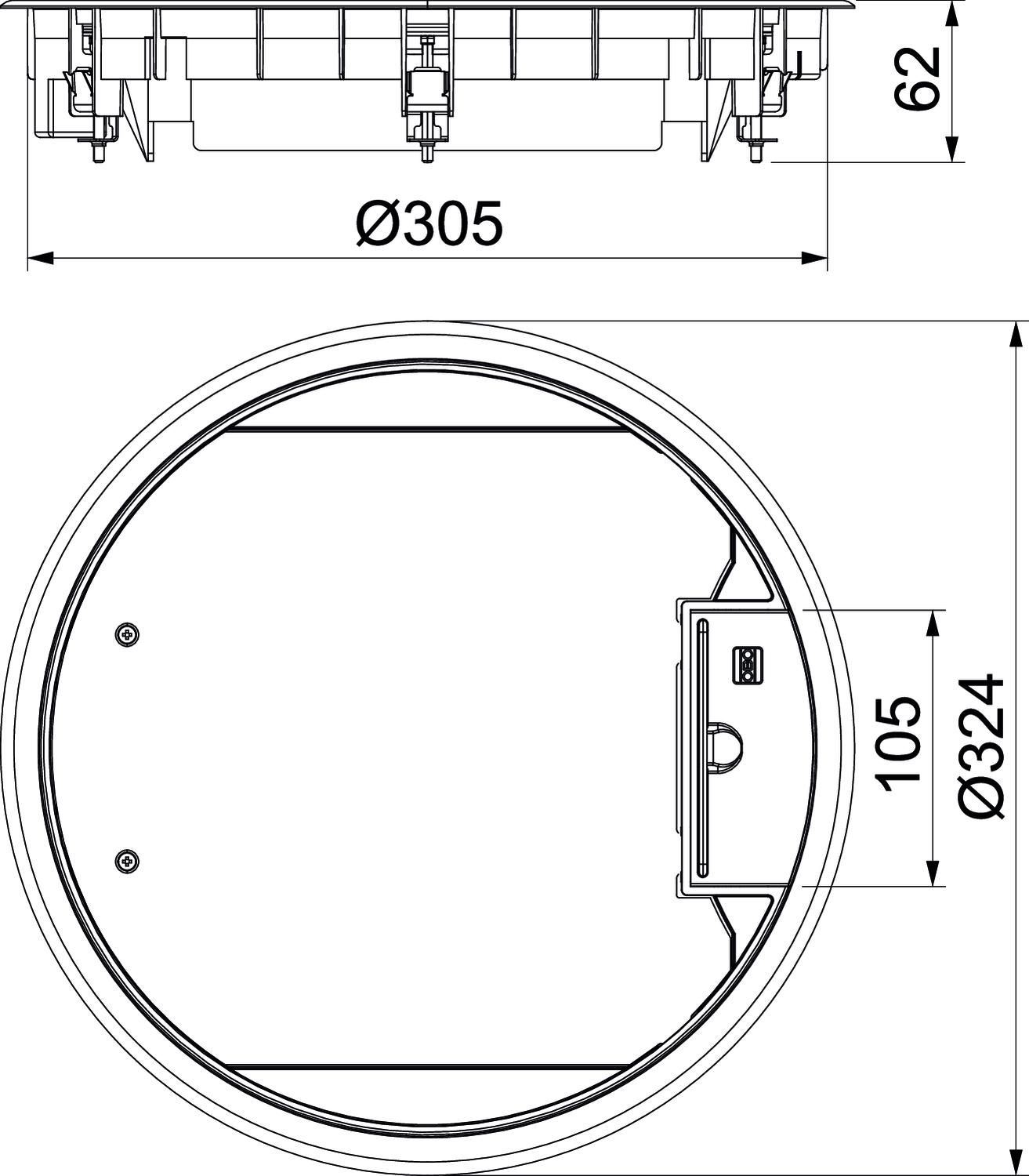

Approvals VDE Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 Device support to accept mounting boxes yes Dimension Ø324x61 External diameter 324 mm Floor care Dry Floor covering protection frame yes Floor covering thickness 5 mm Floor height, min. 73 mm Heavy-duty version no Installation depth 73 mm Installation diameter 305 Installation system type MT4 / GB3 Material Polyamide Nominal size for device installation units R9 Number of installable devices 12 Number of mounting boxes 3 Opening mechanism Handle Protection rating (IP) when unused IP40 Protection rating (IP) when used IP20 Protection rating IK code IK08 Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Suitable for underfloor ducts yes Suitable for wet care no Version for Round Vertical load, large area to 5,000 N Vertical load, small area to 3,000 N With floor covering recess yes Dimensions
Height 62 mm Length 324 mm Width 324 mm - All types
-
System accessories
Products Types Item no. Quantity SSU
Ladder extensions
GES RV 7407536 2 piece
Support plate 2 x type C for mounting support
MTM 2C 7407788 1 piece
Mounting support for data technology connection sockets, system length 208 mm
MTU 3 7407840 1 piece
UT4 universal support, with cover plate for Modul 45® devices, system length 208 mm
UT4 45 4 7408727 1 piece - Downloads
-
Declaration of conformity GESR9 U 7011 / 7405528 , 0.13MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
