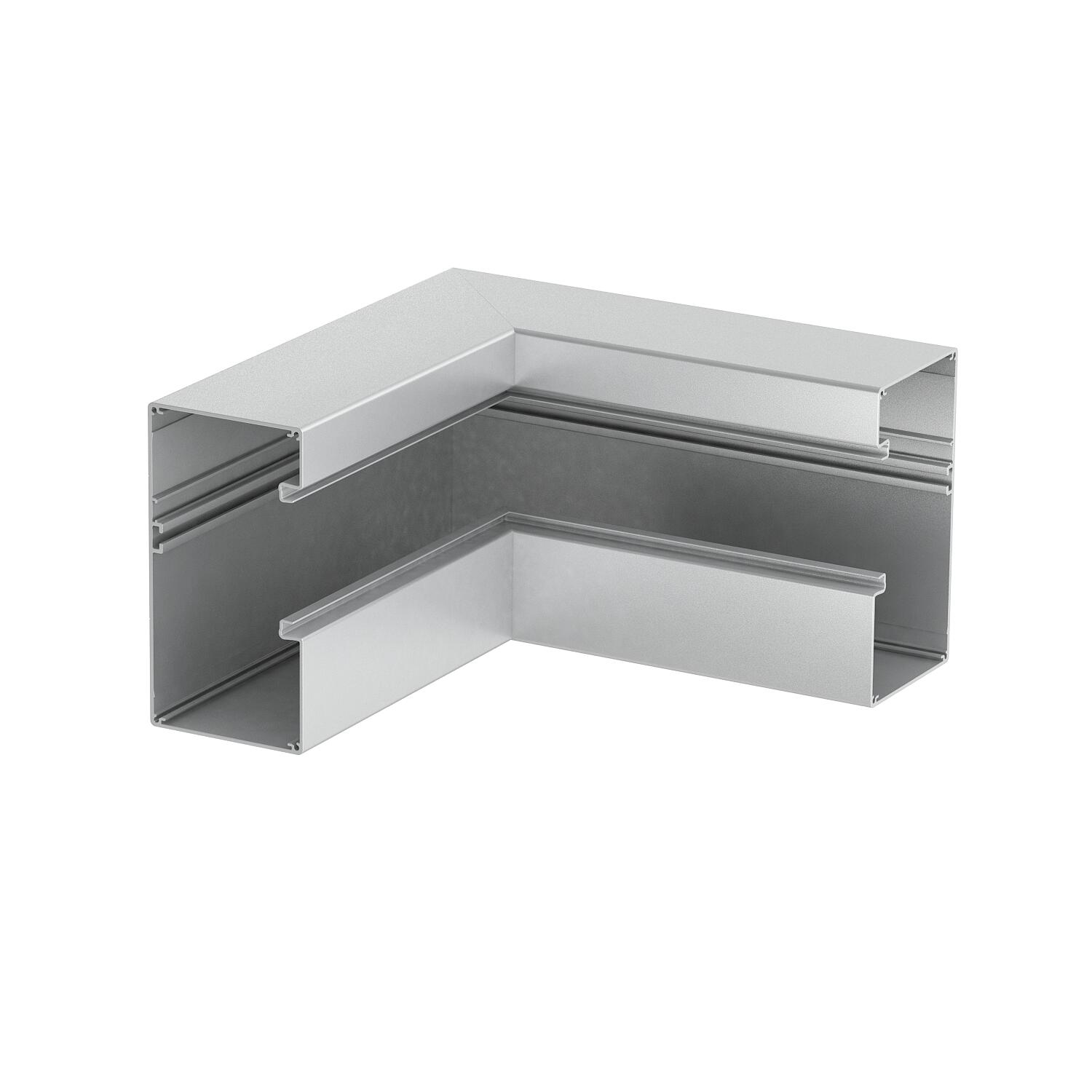

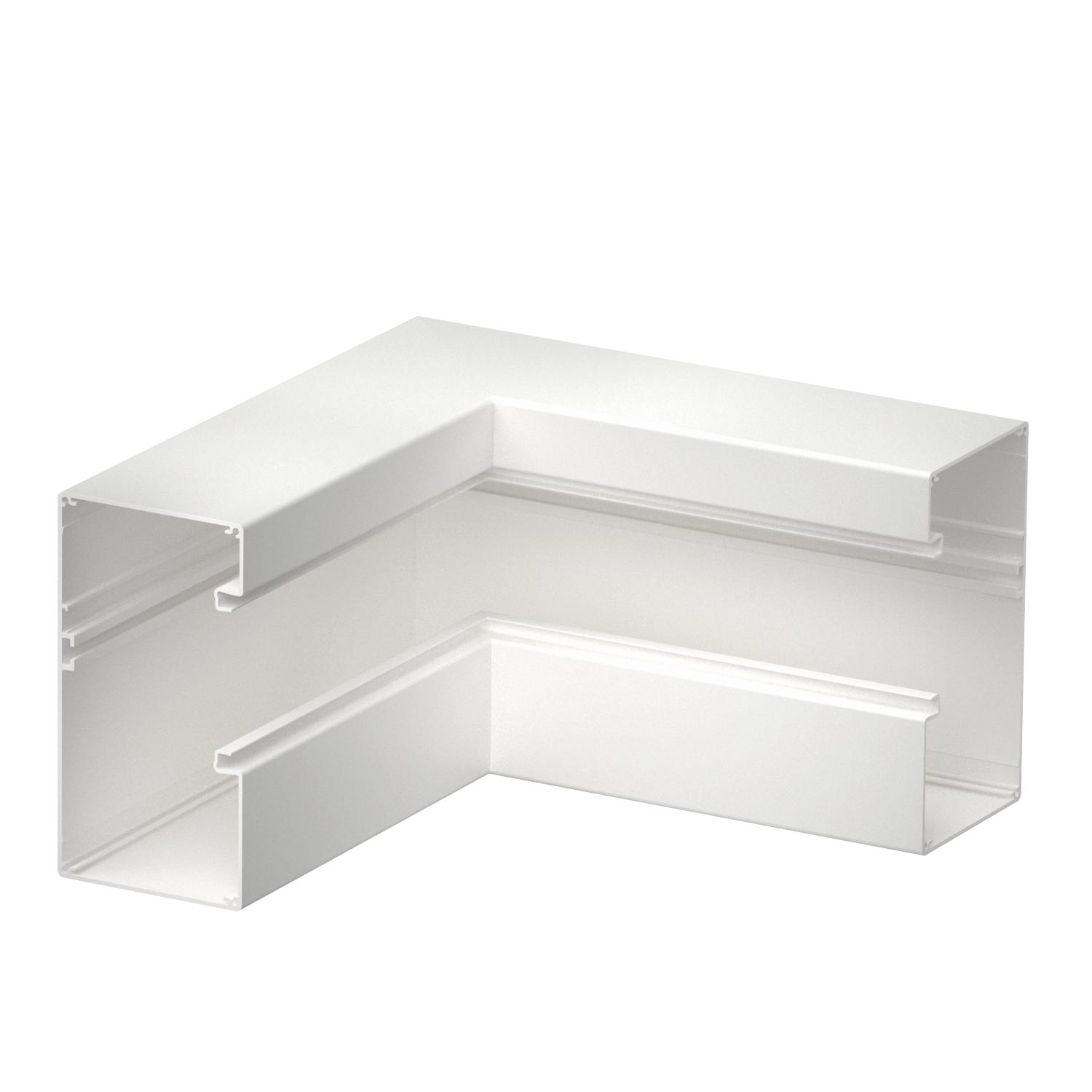

Internal corner, asymmetrical, for device installation trunking Rapid 80 type GA-A90170
Item no. 6279540 | EAN 4012195769255
- Product description
-
Product descriptionInternal corner for changing the direction of the Rapid 80 GA aluminium device installation trunking.
The visible surfaces of the fittings are laminated.
-
- Technical data
-
Technical data

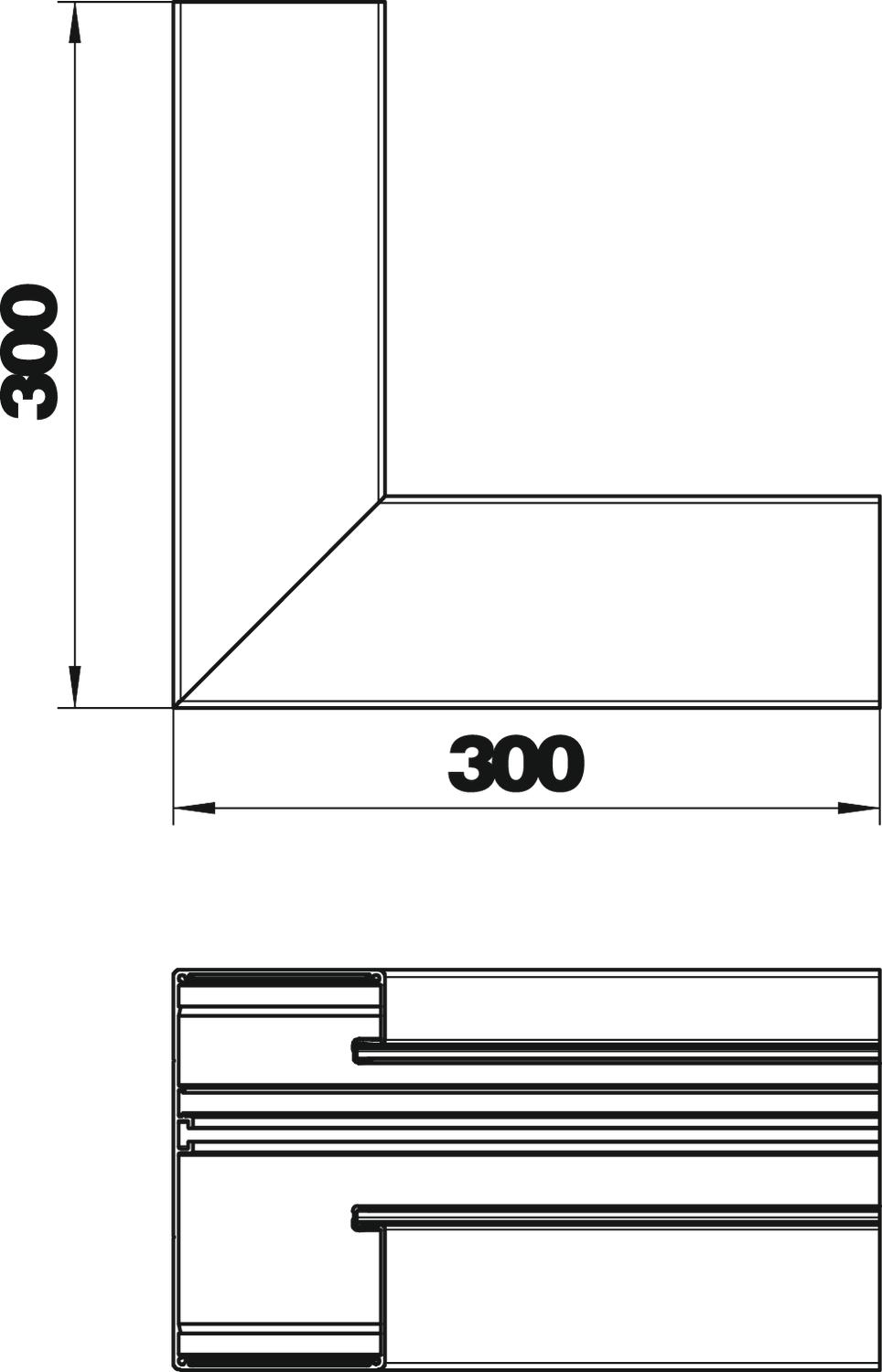

Angle range, min. 90 mm Antibacterial treatment no Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 26,0847 kg CO2e / 1 Piece Colour Pure white; RAL 9010 Cover mounting type Internal Cover width 76,5 mm Dimension 90x170x300 Duct connector no for duct dimension 90 x 170 mm for duct width 170 mm for trunking height 90 mm Halogen-free yes Height 90 mm Length 300 mm Material Aluminium Mounting perforation in base no Number of covers 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Protective film yes Shape Asymmetrical Version for Base Width 170 mm - All types
- Downloads
-
Data sheet GA-AI90170RW / 6279540 , 0.20MB , pdfEU declaration of conformity GA-AI90170RW / 6279540 , 0.10MB , pdfUK Declaration of Conformity GA-AI90170RW / 6279540 , 0.09MB , pdfMounting instructions Geräteeinbaukanal Rapid 80® , 4.62MB , pdfNo invitation to tender text is available for this product.
