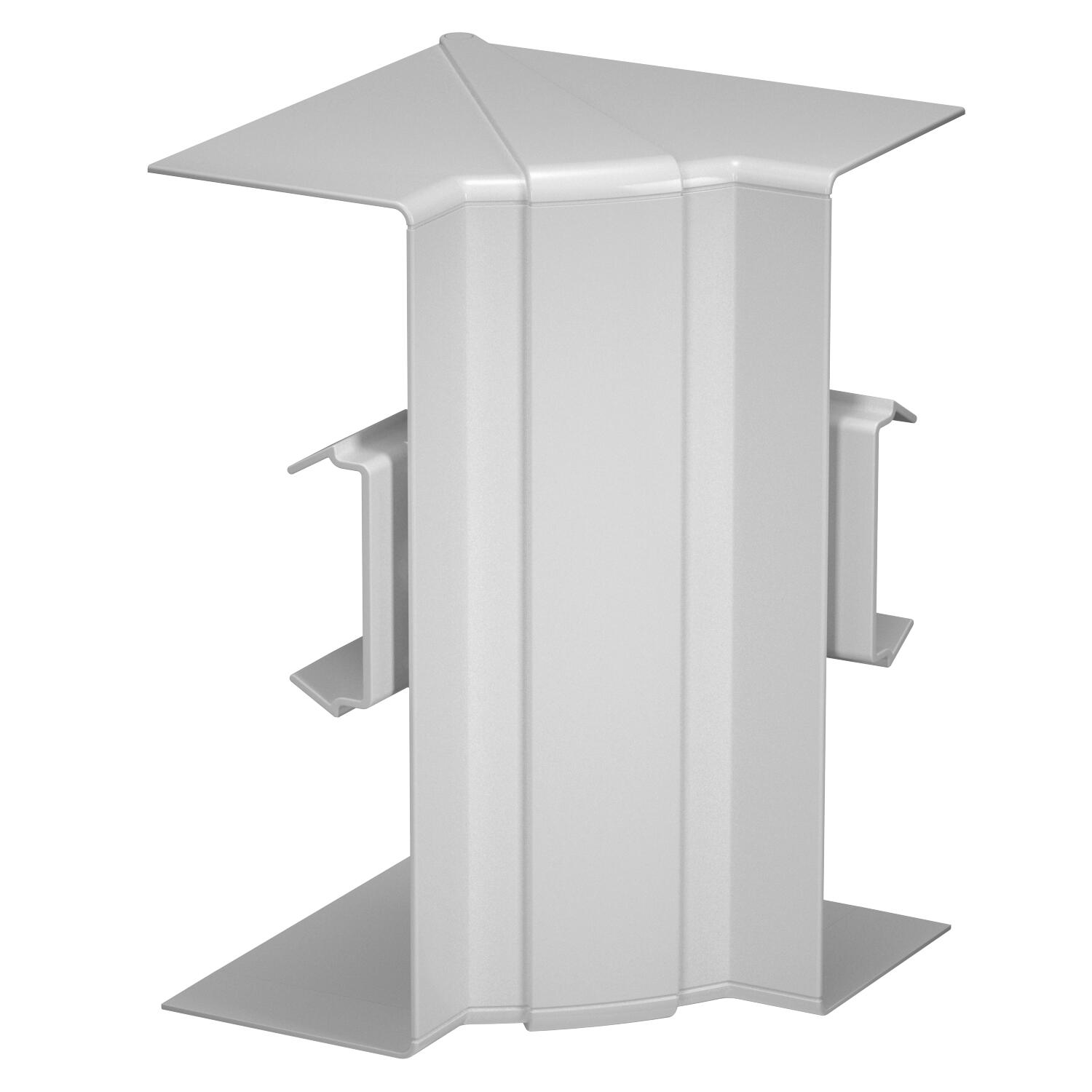

Internal corner cover, for device installation trunking Rapid 80 type 70210 Light grey; RAL 7035

Internal corner cover, for device installation trunking Rapid 80 type 70210

Item no. 6273942 | EAN 4012195847250

Item no. / Types

Colour

Product description

Product description

Internal corner cover made of halogen-free PC/ABS for changing the direction of Rapid 80 device installation trunking of the GK, GKH GS and GA systems. The fittings can be variably adjusted between 85° and 95° and can be used in symmetrical and asymmetrical trunking.

Technical data

Technical data

Angle range, max.	95 mm
Angle range, min.	85 mm
Antibacterial treatment	no
Cable retaining clip	no
CO2 Footprint (GWP) Cradle-to-Gate	1,2498 kg CO2e / 1 Piece
Colour	Light grey; RAL 7035
Cover mounting type	Cross-over
Dimension	70x210mm
Duct connector	no
for duct width	210 mm
for trunking height	70 mm
Halogen-free	yes
Height	70 mm

Length	145 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene
Mounting perforation in base	no
Number of covers	1
Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-15 °C
Protection rating	IP30
Protection rating IK code	IK08
Protective film	no
Shape	Symmetrical
Version for	Hood fitting
Width	219 mm
