Internal corner cover, trunking type WDK 25025 50 | 25 | 25 | 50 | | Pure white; RAL 9010
morepic-1 morepic-2

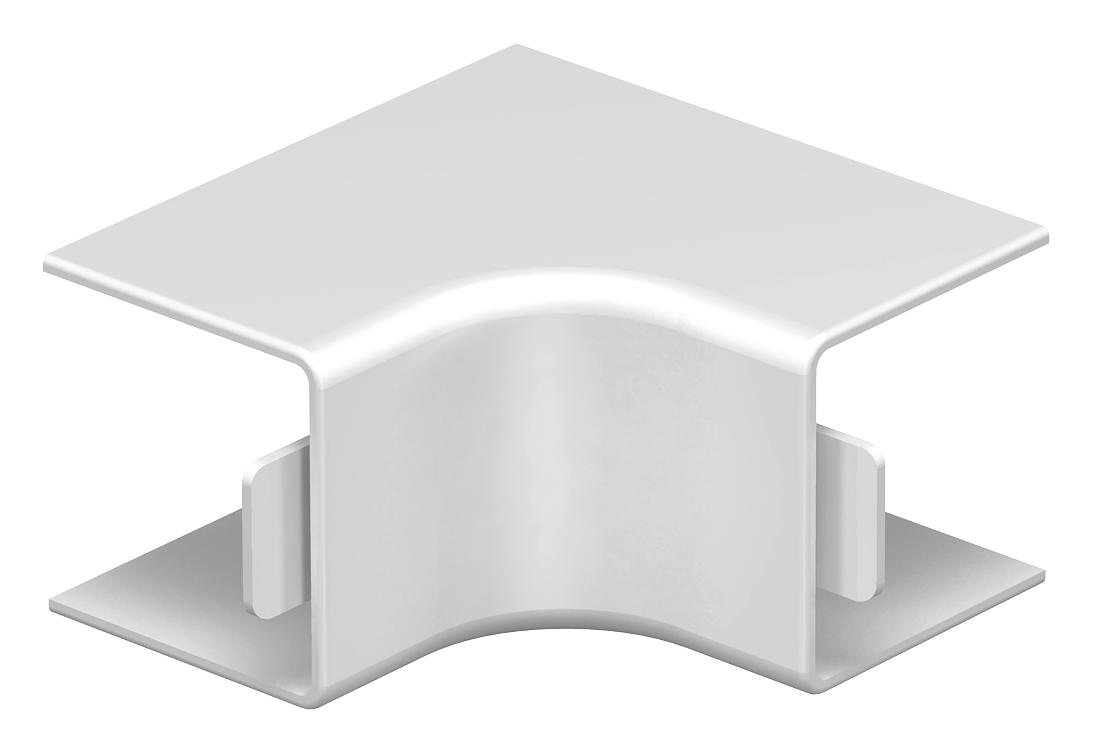

Internal corner cover, trunking type WDK 25025

Item no. 6191886 | EAN 4012196502219

50 mm
25 mm
25 mm
50 mm
Product description
Product description
Internal corner cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,0619 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Dimension 25x25mm

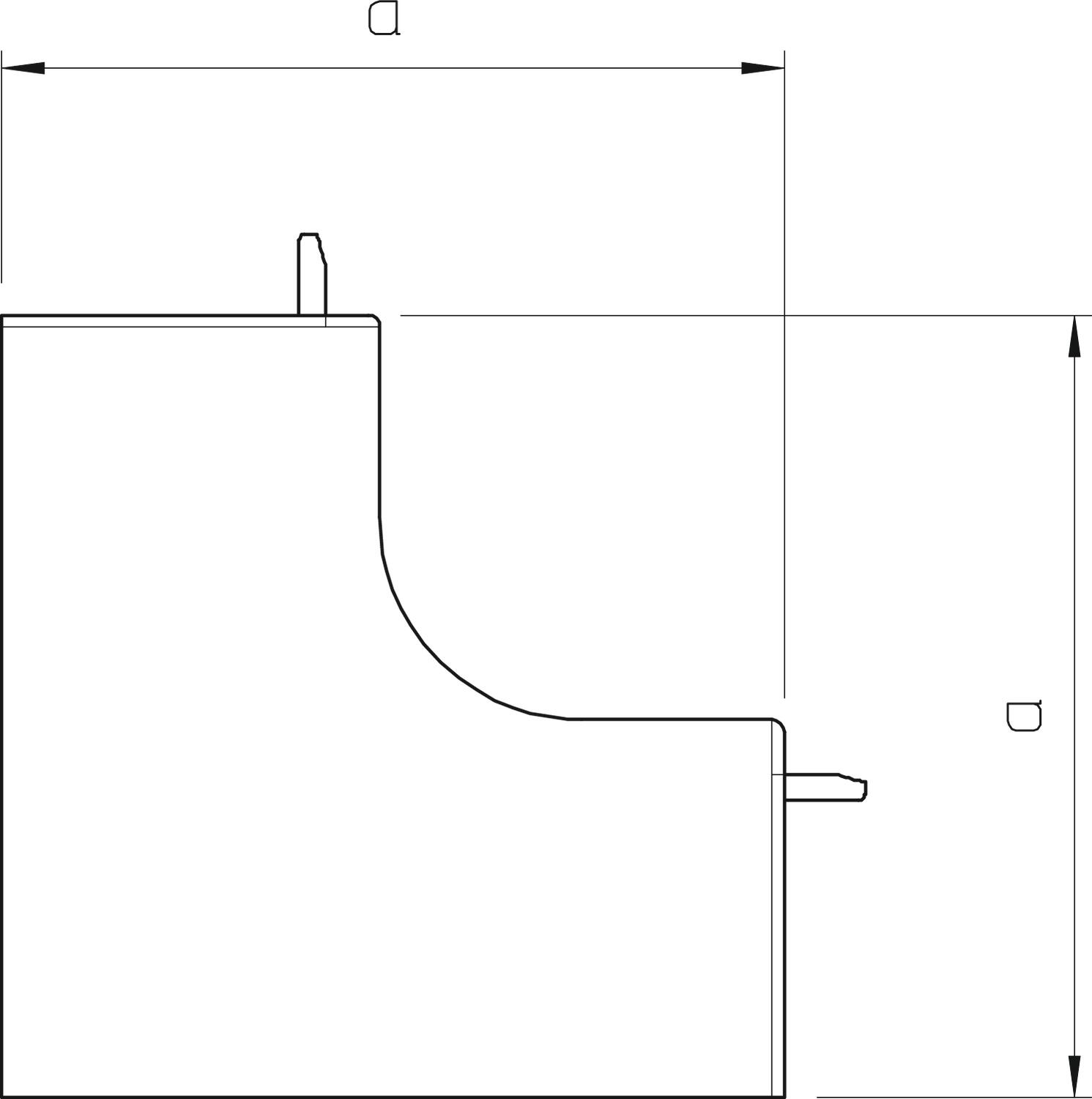

Dimension a 50 mm
Fastening type Lockable
Halogen-free no
Height 25 mm
Length 50 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Hood fitting
Width 25 mm
All types

All types

Types Length Width Height Dimension a Colour Item no. Quantity SSU
WDK HI25025GR 50 mm 25 mm 25 mm 50 mm Stone grey; RAL 7030 6158250
4 piece
WDK HI25025CW 50 mm 25 mm 25 mm 50 mm Cream; RAL 9001 6160042
4 piece
WDK HI25025LGR 50 mm 25 mm 25 mm 50 mm Light grey; RAL 7035 6182062
4 piece
WDK HI25025RW 50 mm 25 mm 25 mm 50 mm Pure white; RAL 9010 6191886
4 piece
Downloads

Download
Download

Download

EU declaration of conformity WDK HI25025RW / 6191886 , 0.11MB , pdf
Download
UK Declaration of Conformity WDK HI25025RW / 6191886 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HI25025RW / 6191886 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HI25025RW / 6191886 , 0.28MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
