Internal corner cover, trunking type WDK 60170 130 | 170 | 60 | 130 | | Stone grey; RAL 7030
morepic-1 morepic-2

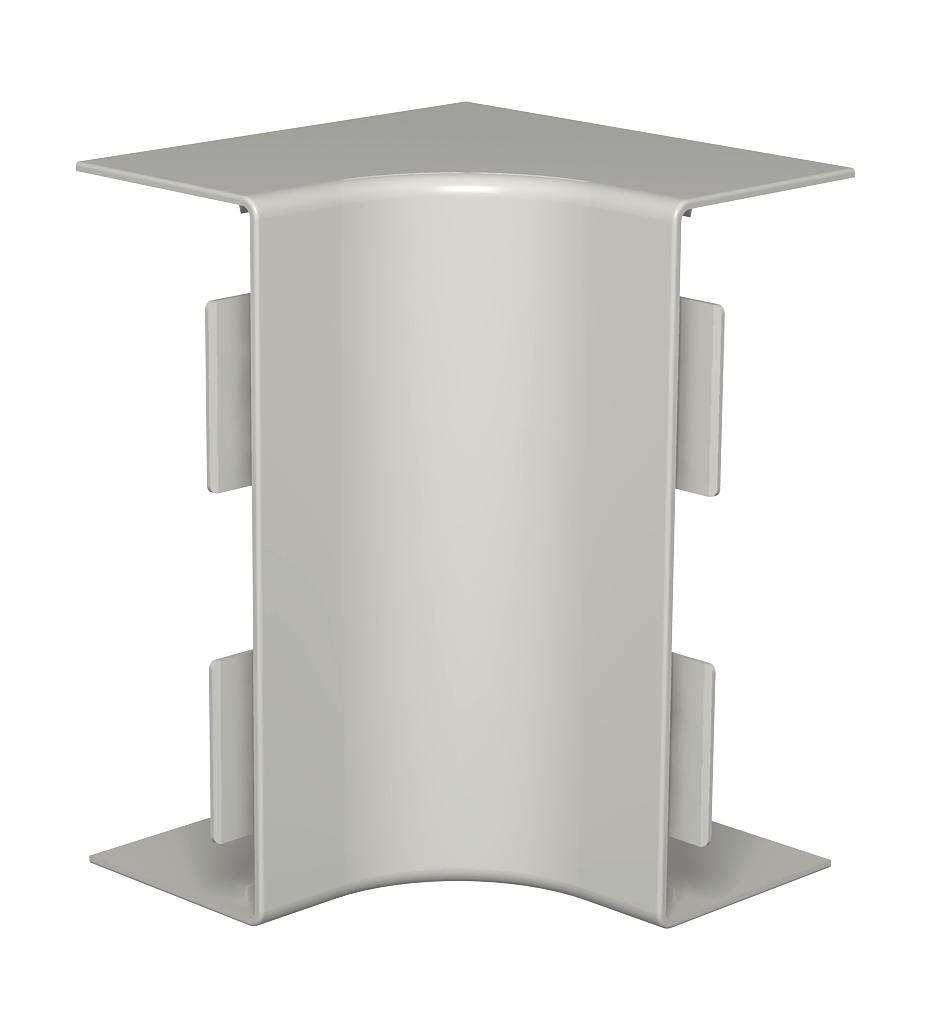

Internal corner cover, trunking type WDK 60170

Item no. 6022286 | EAN 4012196021611

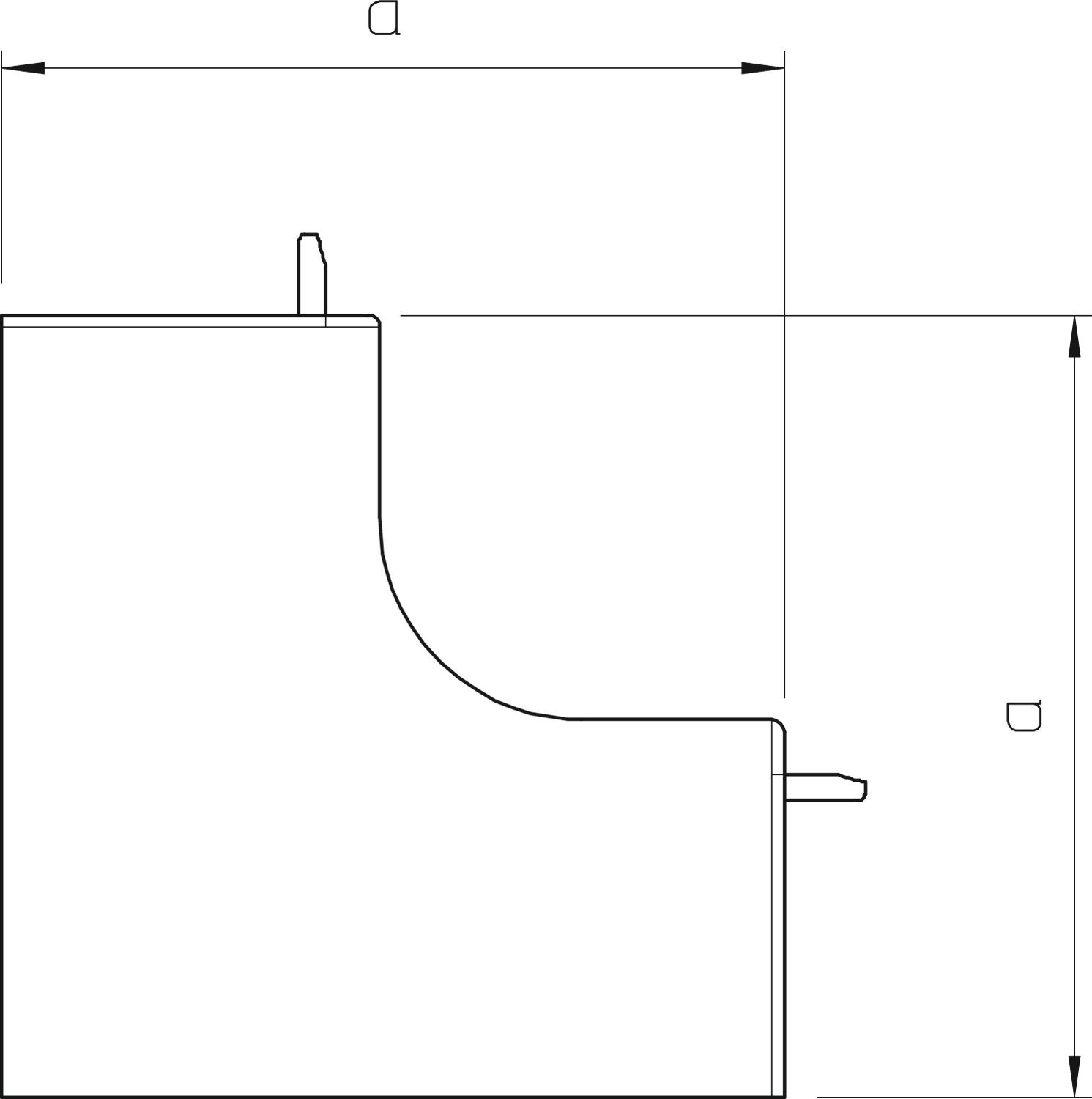

130 mm
170 mm
60 mm
130 mm
Product description
Product description
Internal corner cover for changing the direction of the WDK trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Angle range, max. 90 mm
Angle range, min. 90 mm
Antibacterial treatment no
CO2 Footprint (GWP) Cradle-to-Gate 0,3525 kg CO2e / 1 Piece
Colour Stone grey; RAL 7030
Dimension 60x170mm
Dimension a 130 mm
Fastening type Lockable
Halogen-free no
Height 60 mm
Length 130 mm
Maintain electrical functions no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Protection rating IP30
Protection rating IK code IK04
Protective film no
Version for Hood fitting
Width 170 mm
All types

All types

Types Length Width Height Dimension a Colour Item no. Quantity SSU
WDK HI60170GR 130 mm 170 mm 60 mm 130 mm Stone grey; RAL 7030 6022286
2 piece
WDK HI60170CW 130 mm 170 mm 60 mm 130 mm Cream; RAL 9001 6160352
2 piece
WDK HI60170LGR 130 mm 170 mm 60 mm 130 mm Light grey; RAL 7035 6182240
2 piece
WDK HI60170RW 130 mm 170 mm 60 mm 130 mm Pure white; RAL 9010 6192076
2 piece
Downloads

Download
Download

Download

EU declaration of conformity WDK HI60170GR / 6022286 , 0.11MB , pdf
Download
UK Declaration of Conformity WDK HI60170GR / 6022286 , 0.09MB , pdf
Download
REACH Declaration of conformity WDK HI60170GR / 6022286 , 0.12MB , pdf
Download
RoHS Declaration of conformity WDK HI60170GR / 6022286 , 0.13MB , pdf
Download

Download

No invitation to tender text is available for this product.
