Internal corner, for device installation trunking, desk trunking, type GEK-SA133110 Pure white; RAL 9010
morepic-1 morepic-2 video-1

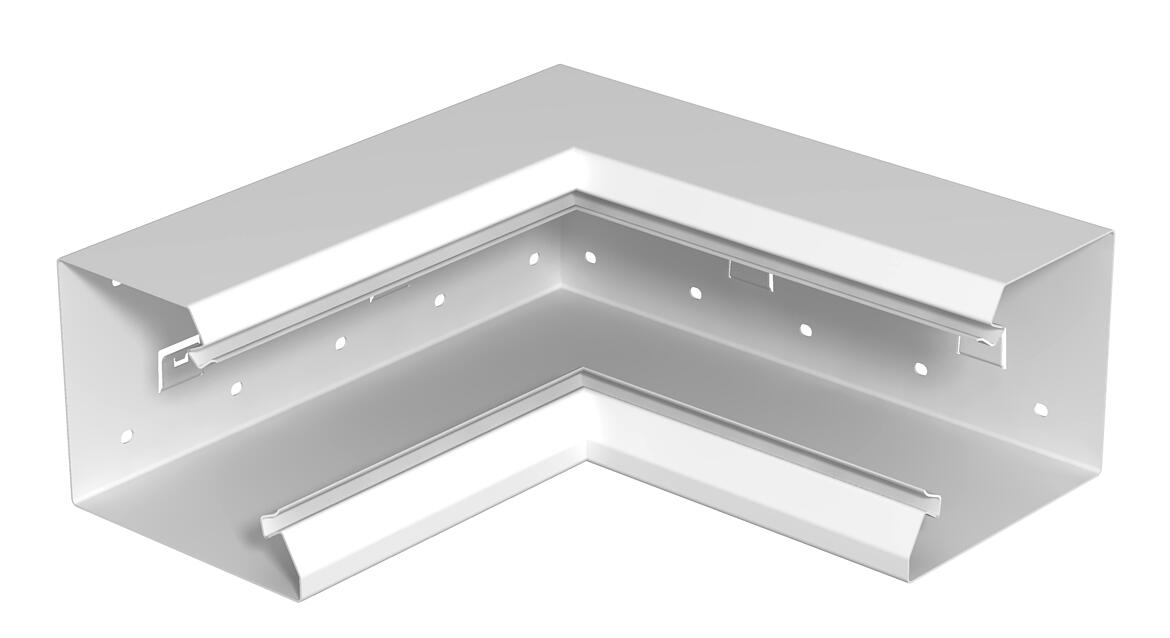

Internal corner, for device installation trunking, desk trunking, type GEK-SA133110

Item no. 6282740 | EAN 4012195137580

6282740 / GEK-SAIS133110RW
Pure white; RAL 9010
Product description
Product description
Internal corner suitable for direct wall mounting.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
Technical data

Technical data

Angle range, min. 90 mm
Antibacterial treatment no
Cable retaining clip no
CO2 Footprint (GWP) Cradle-to-Gate 7,0016 kg CO2e / 1 Piece
Colour Pure white; RAL 9010
Cover mounting type Internal
Cover width 76,5 mm

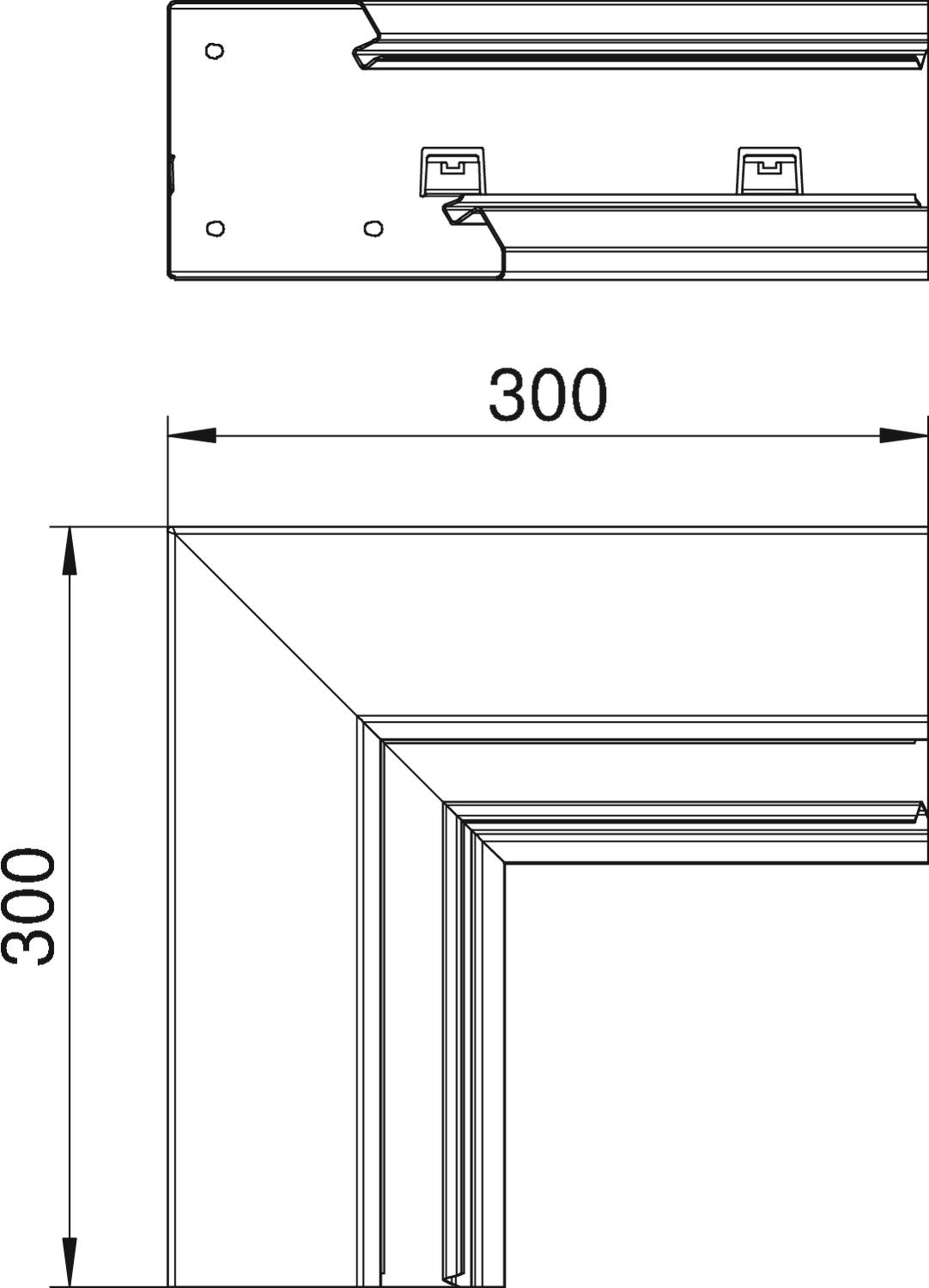

Dimension 133x110x300
Duct connector no
for duct dimension 133 x 110 mm
for duct width 110 mm
for trunking height 133 mm
Halogen-free yes
Height 133 mm
Length 300 mm
Material Steel
Mounting perforation in base yes
Number of covers 1
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -25 °C
Protection rating IP30
Protection rating IK code IK10
Protective film yes
Shape Asymmetrical
Version for Base
Width 110 mm
All types

All types

Types Colour Item no. Quantity SSU
GEK-SAIS133110RW Pure white; RAL 9010 6282740
1 piece
Downloads

Download

Download

EU declaration of conformity GEK-SAIS133110RW / 6282740 , 0.11MB , pdf
Download
UK Declaration of Conformity GEK-SAIS133110RW / 6282740 , 0.09MB , pdf
Download
REACH Declaration of conformity GEK-SAIS133110RW / 6282740 , 0.12MB , pdf
Download
RoHS Declaration of conformity GEK-SAIS133110RW / 6282740 , 0.12MB , pdf
Download

Download

Download
Mounting instructions Pultkanal GEK-S , 2.99MB , pdf
Download

No invitation to tender text is available for this product.
