IS 8 support FT SOMY
Item no. 7193296 | EAN 4012195872689
- Product description
-
Product descriptionI support in fixed lengths. Dimensions 80 x 42 mm.
Single and double-sided brackets of type AS 15, AS 30 and AS 55 can be fastened to the IS 8 I support. The height of the brackets is infinitely adjustable. The surface coating is a coating created in a single-dip method with extra-high zinc thicknesses.
-
- Technical data
-
Technical data

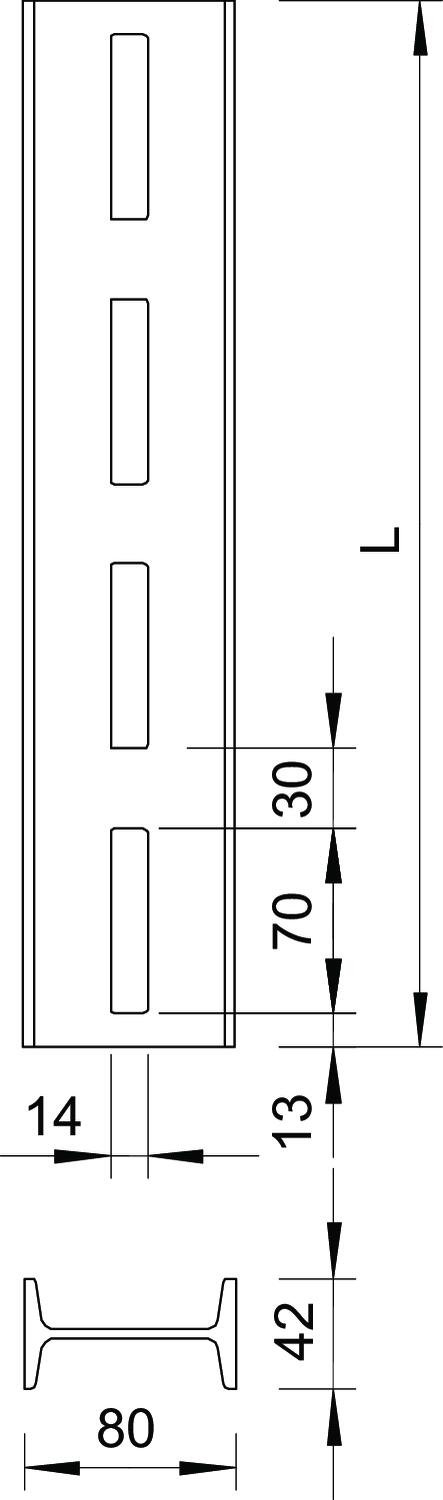

Breakable no CO2 Footprint (GWP) Cradle-to-Gate 7,3136 kg CO2e / 1 Piece Colour zinc Dimension 80 x 42 Dimension 80x42x500 Height 42 mm Hole width 14 mm Length 500 mm Maintain electrical functions no Material Steel Profile shape I profile Slot width 70 mm Static value A 7,02 cm² Static value ly 6,26 cm⁴ Static value lz 77,53 cm⁴ Static value Wy 2,98 cm³ Static value Wz 19,38 cm³ Surface Hot-dip galvanised 85 µm Type of perforation Perforated bar Version for Single profile Width 80 mm With toothing no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
I support connector VIS 8 FT
VIS 8 FT 6018300 10 piece - Downloads
-
Data sheet IS 8 50 FT SO / 7193296 , 0.20MB , pdfEU declaration of conformity IS 8 50 FT SO / 7193296 , 0.10MB , pdfREACH Declaration of conformity IS 8 50 FT SO / 7193296 , 0.12MB , pdfRoHS Declaration of conformity IS 8 50 FT SO / 7193296 , 0.13MB , pdfMounting instructions General information on the mounting , 2.65MB , pdfNo invitation to tender text is available for this product.
