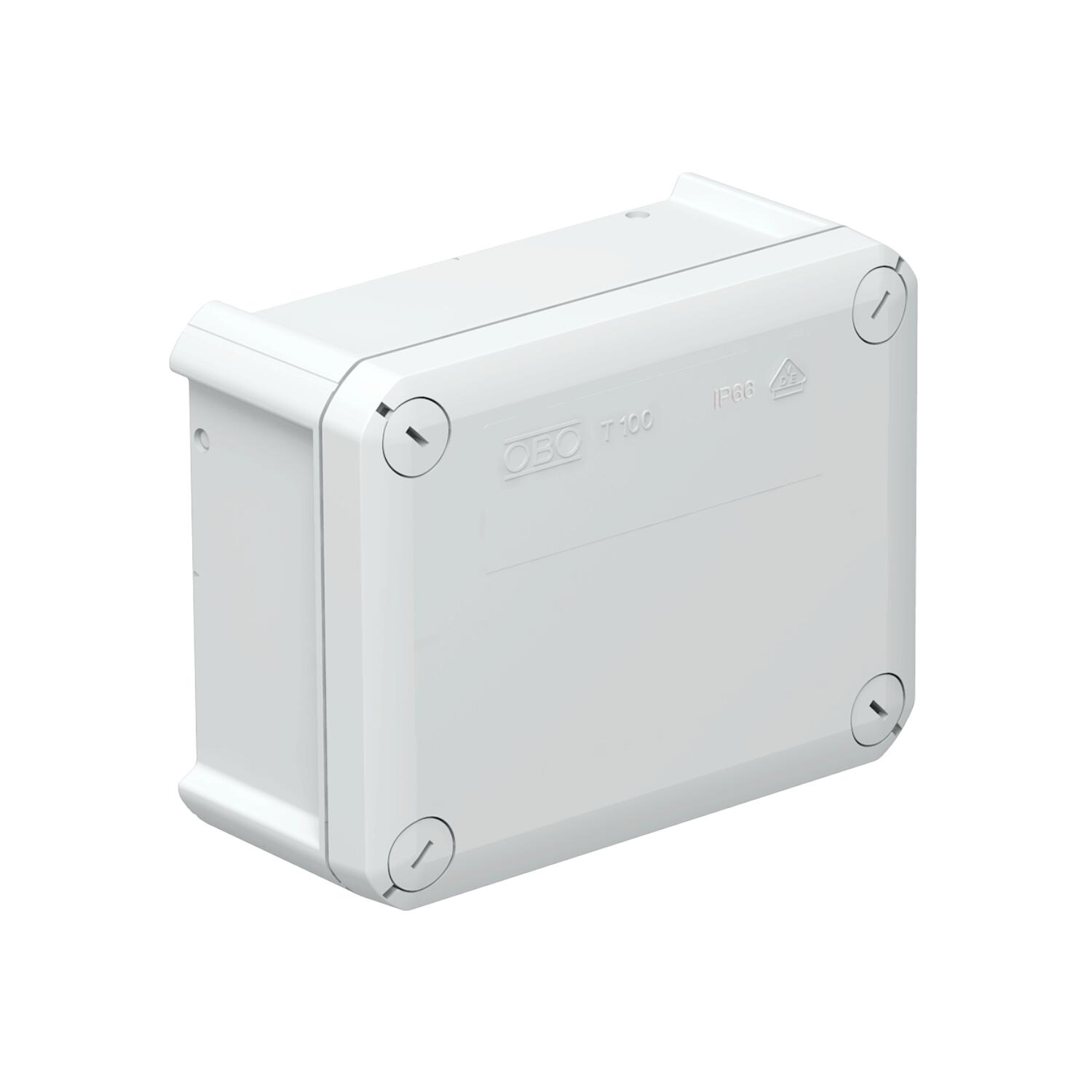

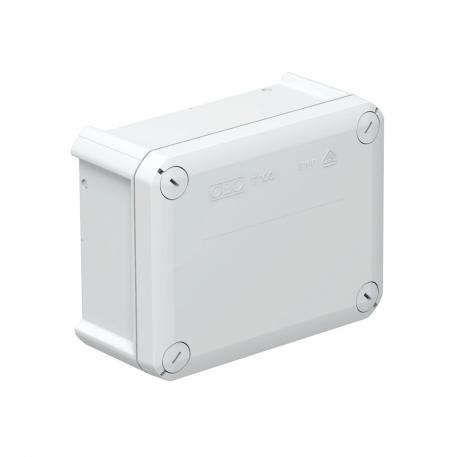

Junction box T 100, closed, EcoLine
Item no. 2007257 | EAN 4012197497279
- Product description
-
Product descriptionJunction box for the connection of cables indoors and in protected outdoor areas. Rectangular design without entries. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK07 according to DIN EN 50102
-
- Technical data
-

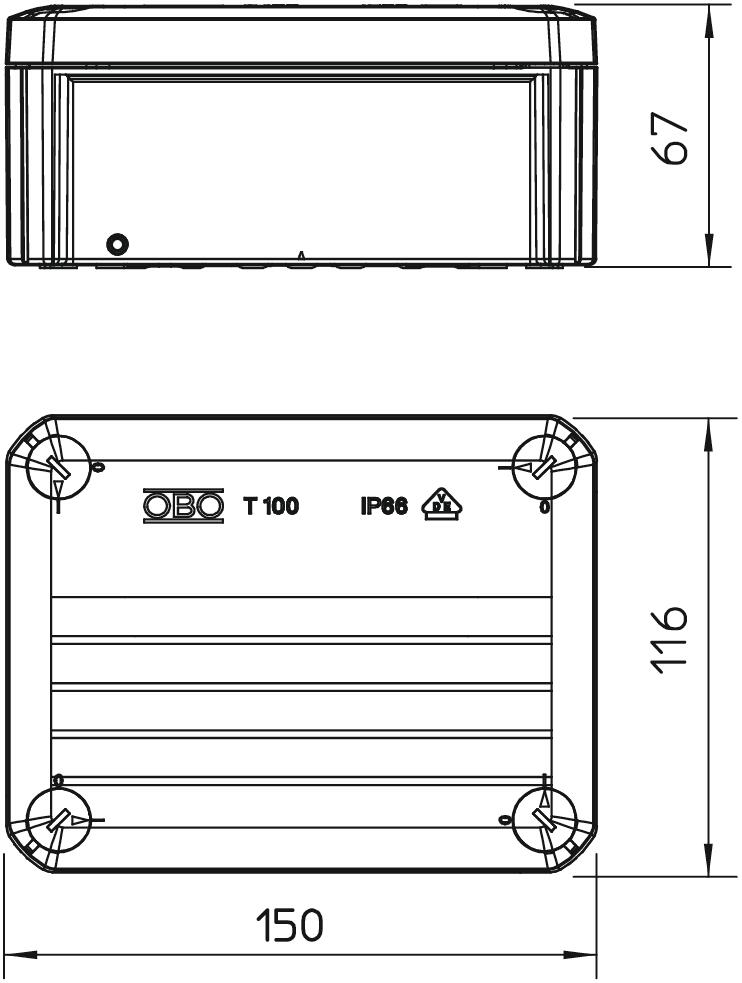

Dimensions
Clear internal dimensions 136x102x57 mm CO2 Footprint (GWP) Cradle-to-Gate 0,3649 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 150x116x67 Entry from rear yes Equipment Without Expandable yes Explosion-tested version no Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 67 mm Junction box cover version Blanking lid Length 150 mm Maintain electrical functions Without Material Polypropylene Eco Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting Nominal cross-section, min. 10 mm² Nominal voltage 500 V Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP66 Protection rating IK code IK07. Recycled material content 48 % Sealable yes Shape Rectangular Transparent lid no Type of entry None Type of entry Cable Type of housing penetration Without Weatherproof no Width 116 mm with lid yes With screening no - All types
-
All types
- Downloads
-
EU declaration of conformity T 100 OE ECO / 2007257 , 0.10MB , pdfUK Declaration of Conformity T 100 OE ECO / 2007257 , 0.09MB , pdfNo invitation to tender text is available for this product.
