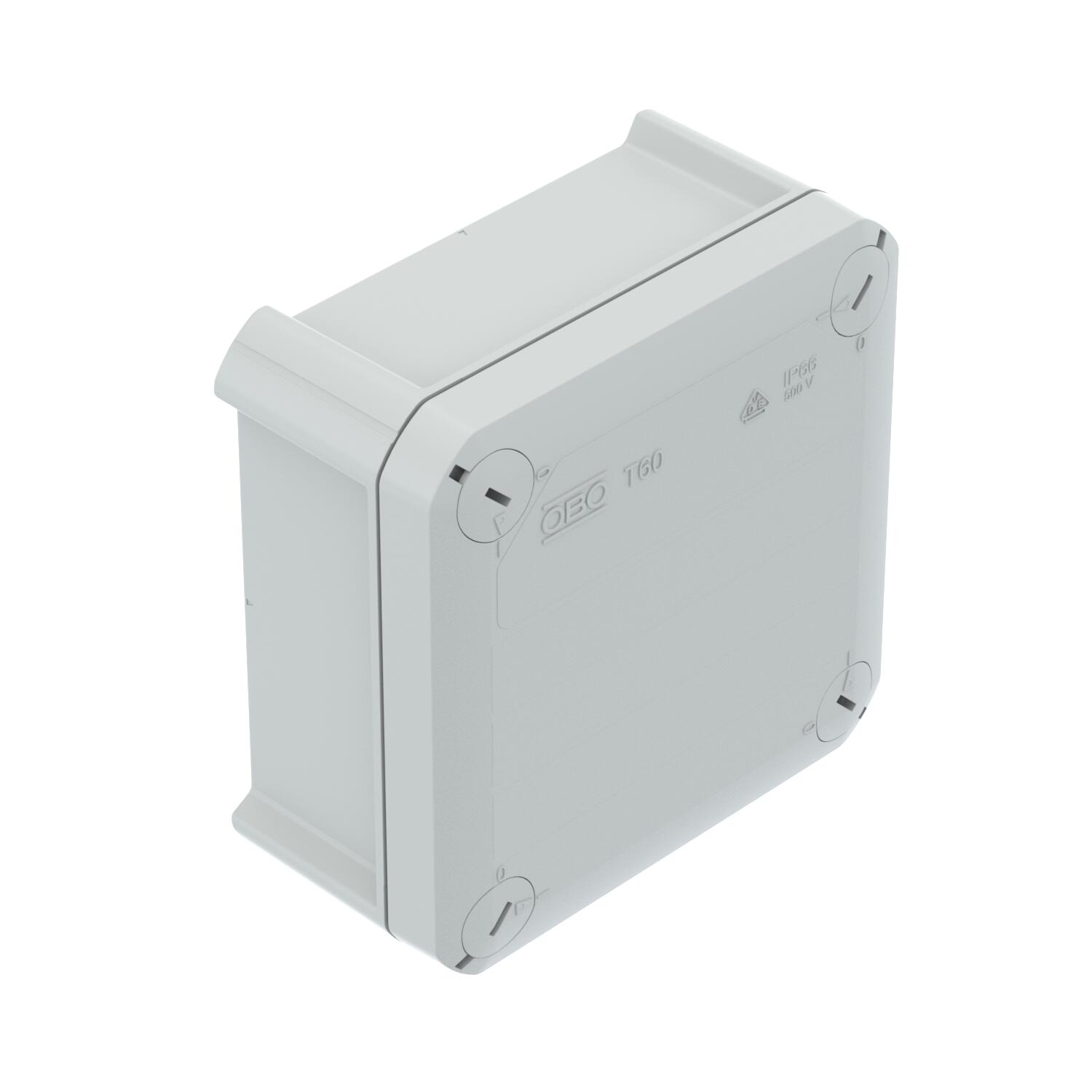

Junction box T 60, closed, EcoLine
Item no. 2007241 | EAN 4012197497231
- Product description
-
Product descriptionJunction box for the connection of cables indoors and in protected outdoor areas. Square shape without entries. Suitable for wall and ceiling mounting and on mounting panels. With the option of fastening inside and to mount via the corner domes. Cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.
Junction box according to DIN EN 60670. Flame-resistant to DIN EN 60695/2/11, test temperature 650 °C. Impact resistance IK08 according to DIN EN 50102.
-
- Technical data
-
Dimensions
Clear internal dimensions 100x100x46 mm CO2 Footprint (GWP) Cradle-to-Gate 0,2687 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 114x114x57 Entry from rear yes Equipment Without Expandable yes Explosion-tested version no Fibre-glass reinforced no Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without Halogen-free yes Height 57 mm Junction box cover version Blanking lid Length 114 mm Maintain electrical functions Without Material Polypropylene Eco Measured insulation voltage Vi 500 V Mounting type Wall/ceiling mounting Nominal cross-section, min. 6 mm² Nominal voltage 500 V Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP66 Protection rating IK code IK08 Recycled material content 49 % Sealable yes Shape Square Transparent lid no Type of entry None Type of entry Cable Type of housing penetration Without Weatherproof no Width 114 mm with lid yes With screening no - All types
-
All types
- Downloads
-
EU declaration of conformity T 60 OE ECO / 2007241 , 0.10MB , pdfUK Declaration of Conformity T 60 OE ECO / 2007241 , 0.09MB , pdfNo invitation to tender text is available for this product.
